GRA103RRB Bearing for Universal Products
GRA103RRB Bearing for Universal Products
Couldn't load pickup availability

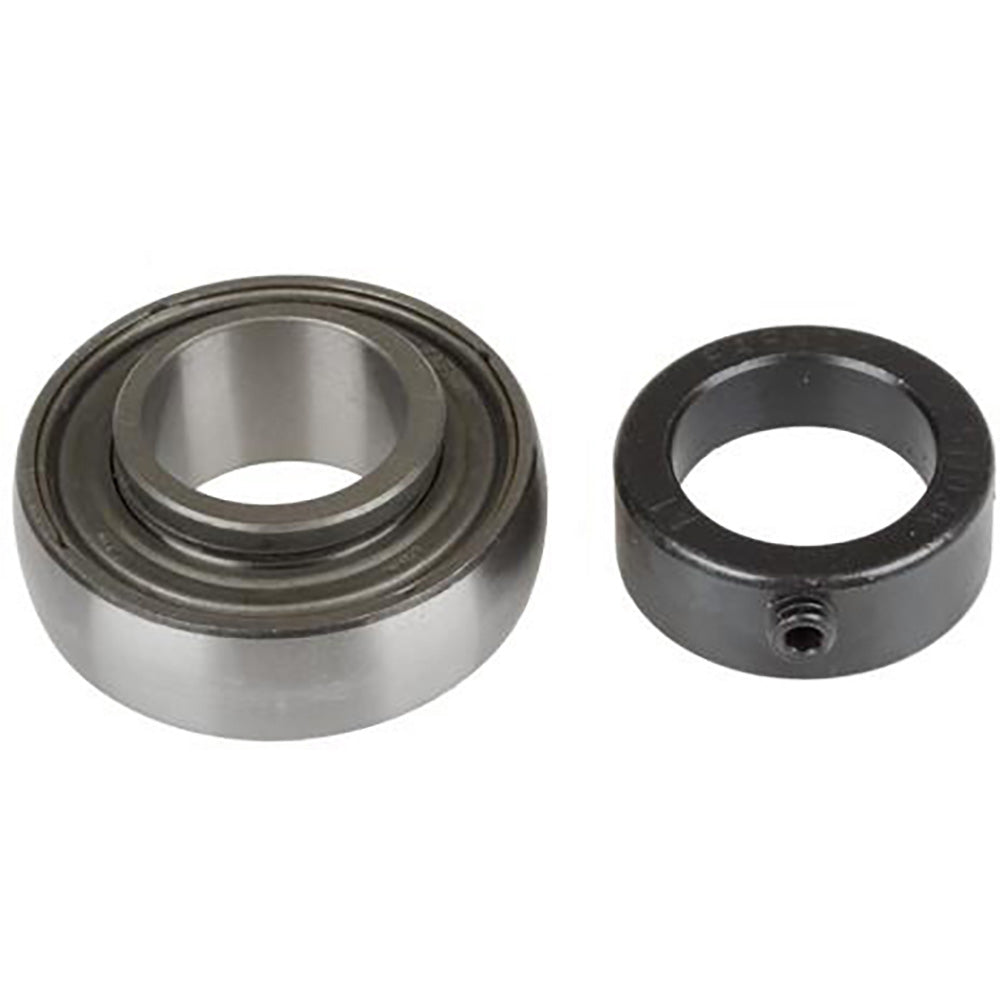

One New Aftermarket Replacement Wide Inner Ring Insert Bearing - GRA103RRB
This wide inner ring ball insert bearing (GRA103RRB) is a double-sealed, relubricable adapter bearing designed for use on shafts in agricultural equipment. Featuring a spherical outer diameter, eccentric set screw locking collar, and alloy steel construction, it supports radial and axial loads on driveshafts, axles, and shaft mounting positions across a broad range of farm machinery including balers, blowers, choppers, cutters, combines, loaders, rakes, and spreaders.
Specifications
- Bearing Type: Wide Inner Ring Ball Insert Bearing (Spherical OD)
- Bore Diameter: 1-3/16 in (30.16 mm)
- Outside Diameter: 2.4409 in (62 mm)
- Overall Width: 0.9375 in (23.81 mm)
- Inner Ring Width: 0.866 in (22 mm)
- Outer Ring Width: 0.709 in (18 mm)
- Closure: Double Sealed
- Locking Type: Eccentric Set Screw Collar
- Cage Material: Nylon
- Ball/Ring Material: Alloy Steel
- Max RPM: 3,800
- Radial Dynamic Load Capacity: 4,800 lbf
- Radial Static Load Capacity: 2,280 lbf
- Max Temperature: 250 degrees F
- Weight: 0.71 lbs
Compatible Applications
This is a universal agricultural insert bearing suitable for a wide range of equipment including balers, blowers, choppers, cutters, combines, loaders, rakes, and spreaders. Verify shaft diameter (1-3/16 in) before ordering.
Replaces Part Number(s):
GRA103RRB, HIB10-0088
Aftermarket Interchange Numbers
Also cross-references as: GRA103-RRB (SKF/Fafnir/Timken)
New aftermarket replacement part - not remanufactured, not used.
