GRA100RRB Bearing for Universal Products

One New Aftermarket Replacement Spherical Ball Bearing for Case IH (International Harvester) Combines

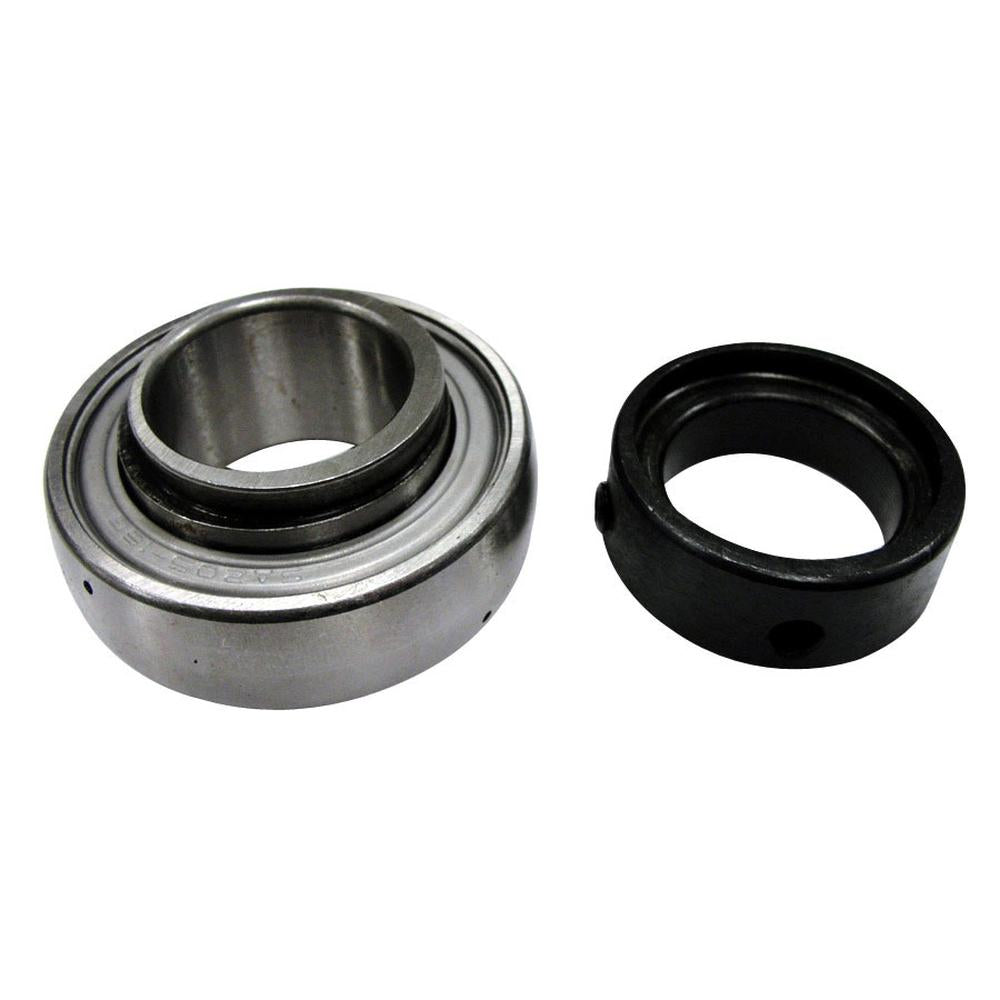

This 1-inch bore NPS spherical insert ball bearing with eccentric locking collar serves the grain handling area of Case IH and International Harvester combines, specifically in the grain handling shafts and unloading auger assembly. It is relubricatable for extended service life and features a double-seal closure to keep contaminants out in demanding harvest conditions.

Specifications

• Bore: 1.000 in (Round Bore)
• Outside Diameter: 2.0472 in (52 mm)
• Overall Width: 1.217 in
• Inner Ring Width: 0.844 in (21.44 mm)
• Outer Ring Width: 0.591 in (15 mm)
• Locking Device: Eccentric Collar
• Seal Type: Double Seal (Contact), Relubricatable
• Radial Dynamic Load Capacity: 3,450-3,490 lbf
• Radial Static Load Capacity: 1,560-1,760 lbf
• Max RPM: 4,540
• Temperature Range: -50 to 120 deg C
• Cage Material: Nylon
• OD Profile: Spherical

Compatible Models

Case IH Combines: 1420, 1440, 1460, 1470, 1480, 1482, 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377 (S/N HAJ0292001-HAJ0300000), 2388 (S/N HAJ0292001-HAJ0300000), 2577 (S/N HAJ0300001 and later), 2588 (S/N HAJ0300001 and later)

International Harvester Combines: 815 (S/N 3452 and later), 914 (Pull-Type), 915 (S/N 8000 and earlier)

Replaces Part Number(s):

165333C91, 160796C91, BR160796C91, 482303R92, F53346, HIB10-0188, GRA100RRB, GRA100RRB-IMP

Aftermarket Interchange Numbers

Timken/Fafnir GRA100RRB, 004-1703, 042903, 121038, 156023C91, 173934, 3027, 506550, 565094, 600-03004, AE28285, JD9335, TG106-P

New aftermarket replacement part - not remanufactured, not used.
