Gasket - Upper Set fits Leyland 270 272 384 AHM9075 Fits JCB 78G1395

One New Aftermarket Replacement Upper Gasket Set for Leyland and Fits JCB 4-Cylinder Engines

This upper (top end) gasket set covers the cylinder head and all related upper engine gaskets for Leyland and Fits JCB equipment powered by the 4/98 four-cylinder engine family, including the 4/98DT, 4/98NT, 4/98TT, and 38VD variants. The kit seals the head, valve cover, intake and exhaust manifolds, injectors, thermostat housing, and combustion chambers, making it a complete solution for a top-end engine rebuild or head gasket replacement job.

Specifications

• Type: Upper (Top End) Gasket Set - 4 Cylinder
• Bore Diameter: 3.87 in. (98.4 mm)
• Compatible Engine Families: 4/98DT, 4/98NT, 4/98TT, 38VD
• Also fits late-build 3.8TD engines (engine serial number 40899 and above) and late-build 3.4TD engines (engine serial number 2443 and above)

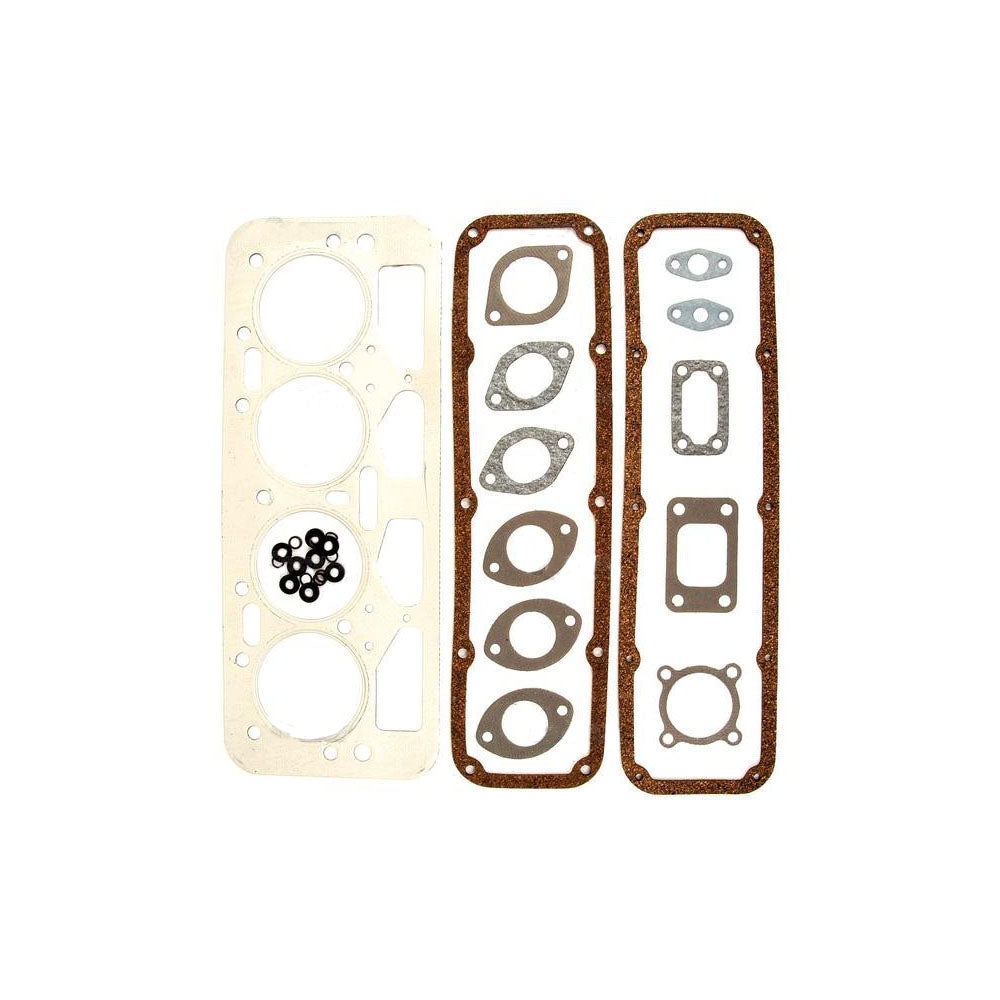

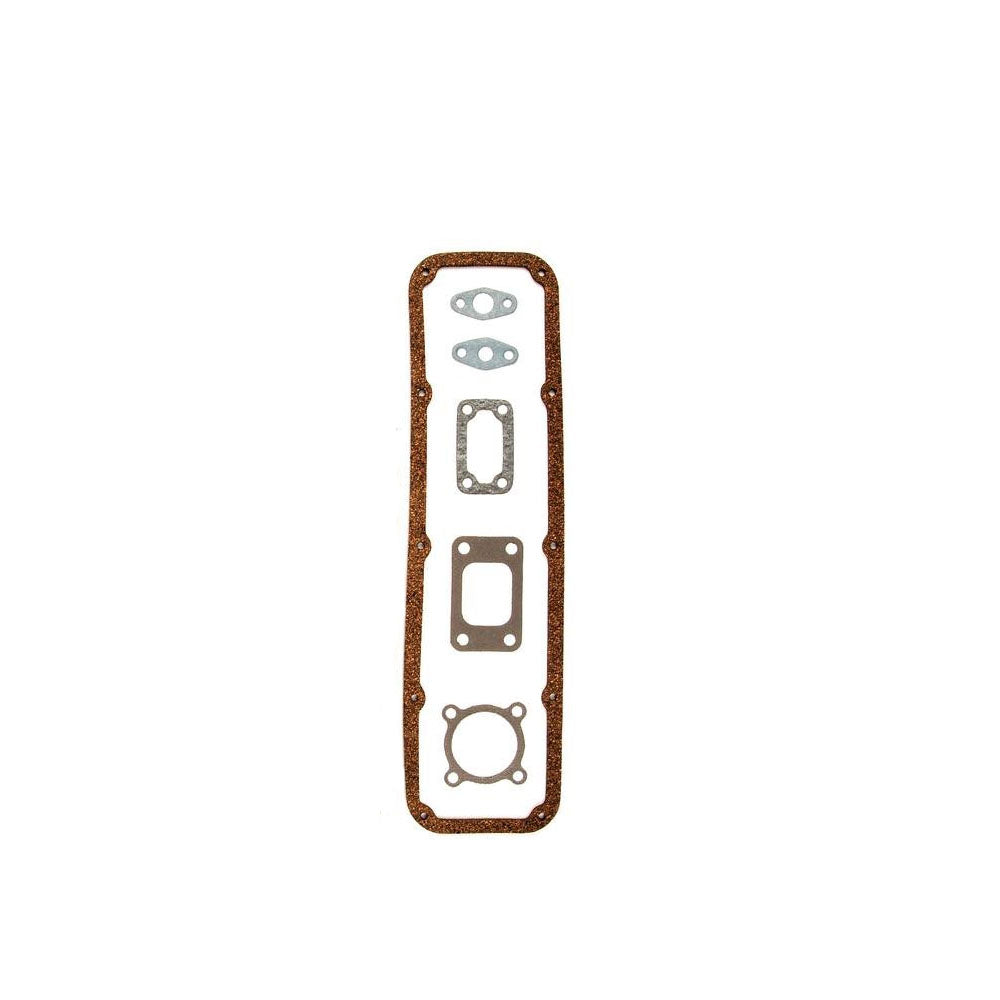

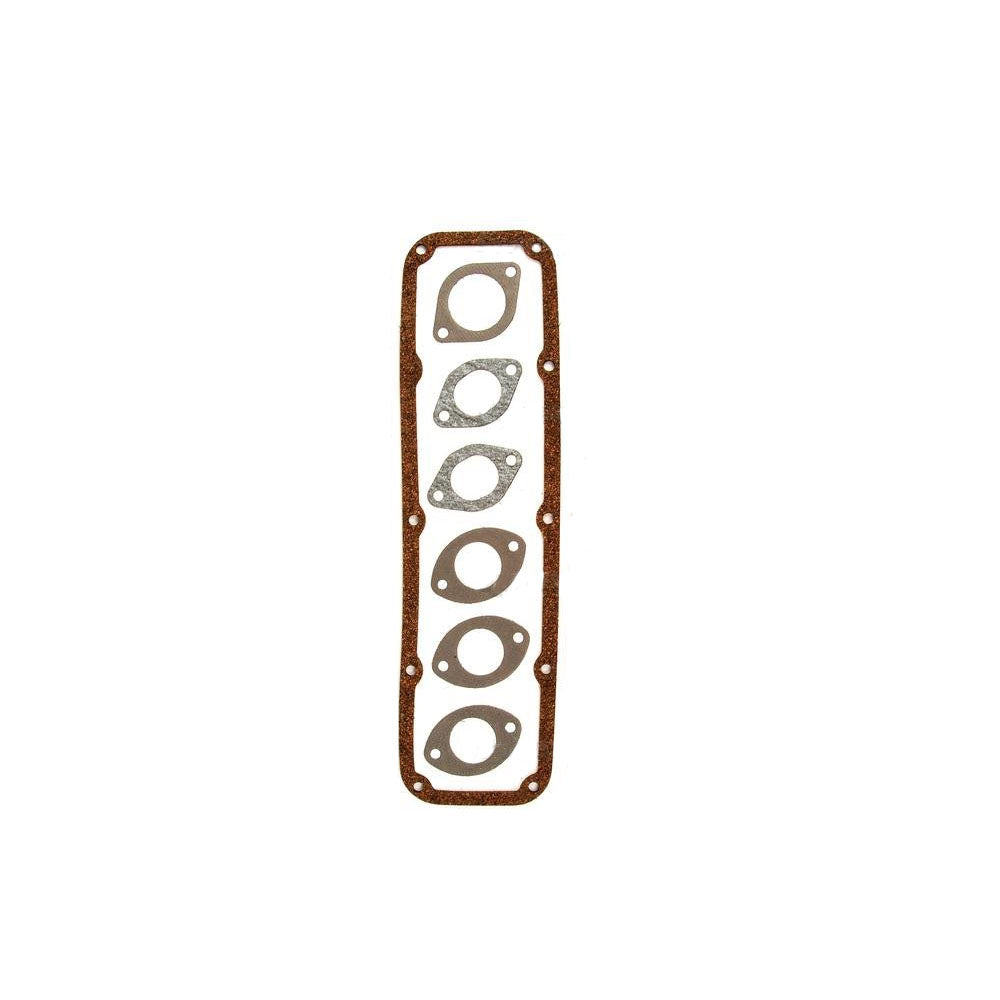

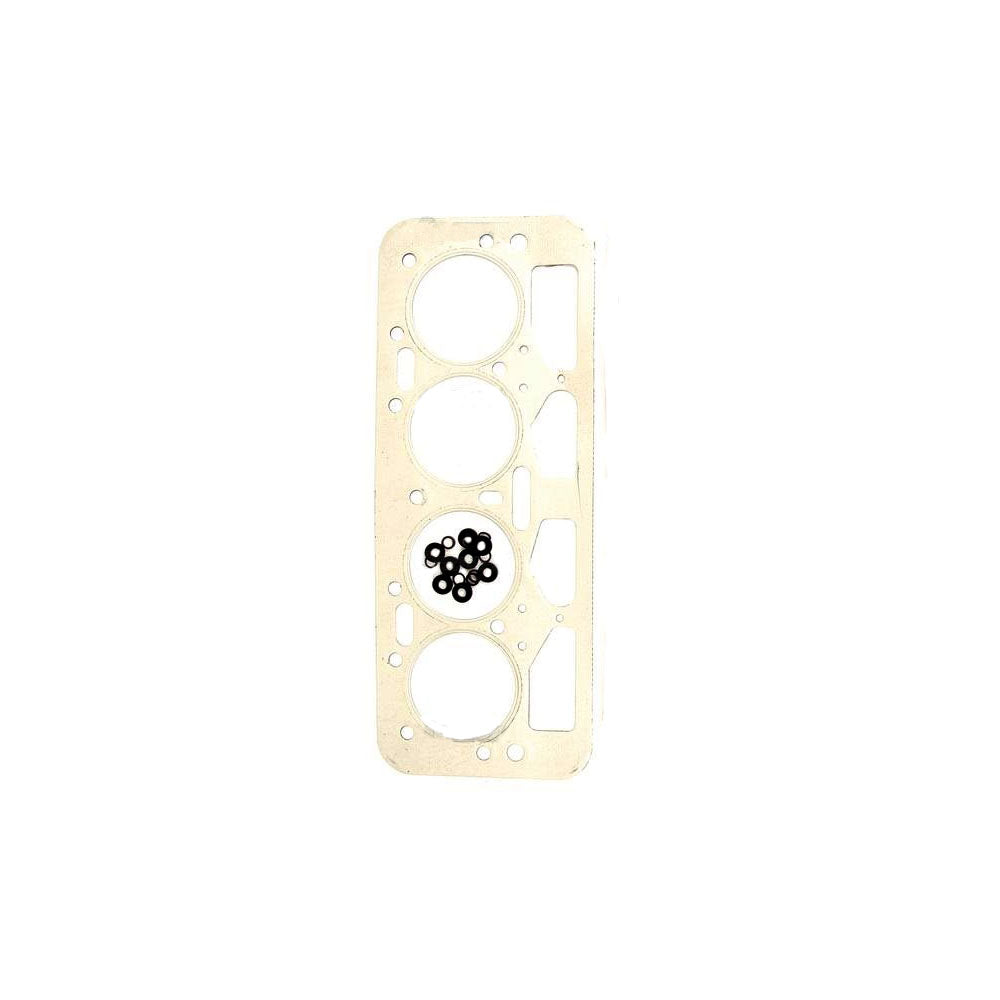

• Kit includes: Head Gasket, Valve Cover, Intake Manifold, Exhaust Manifold, Exhaust Pipe, Thermostat, Combustion Chamber, and Injector Seal gaskets

Compatible Models

Leyland Tractors: 255, 262, 270, 272, 282, 344, 384 (SN 40899 and above), 4/65 (late models - verify engine serial number), 462, 472, 482, 602, 604, 702, 704, 802, 804

Fits JCB Equipment: 140, 2D, 3, 3C, 3C MKII, 3C MKIII, 3CX, 3D, 3D MKII, 3DMK111, 3MK111, 3CMK111, 4C, 4CX, 4D, 520, 520HL, 525, 530, 530HL, 700, 702, 704, 802, 804

Nuffield Tractors: 4/65 (late models - verify engine serial number)

Marshall Tractors: 602, 604, 702, 704, 802, 804, 904XL

Replaces Part Number(s):

AHM9075, 78G1395, 81300204, 81300252, 81300268

New aftermarket replacement part - not remanufactured, not used.
