Gas Strut Spring Cylinder Door Fits Case IH 3220 3230 4210 4230 4240 144947A2

Name: Gas Strut Spring Cylinder Door Fits Case IH 3220 3230 4210 4230 4240 144947A2
SKU: AGER1295167
Price: 20.0 USD
Availability: InStock

Gas Strut Spring Cylinder Door Fits Case IH 3220 3230 4210 4230 4240 144947A2

$20.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

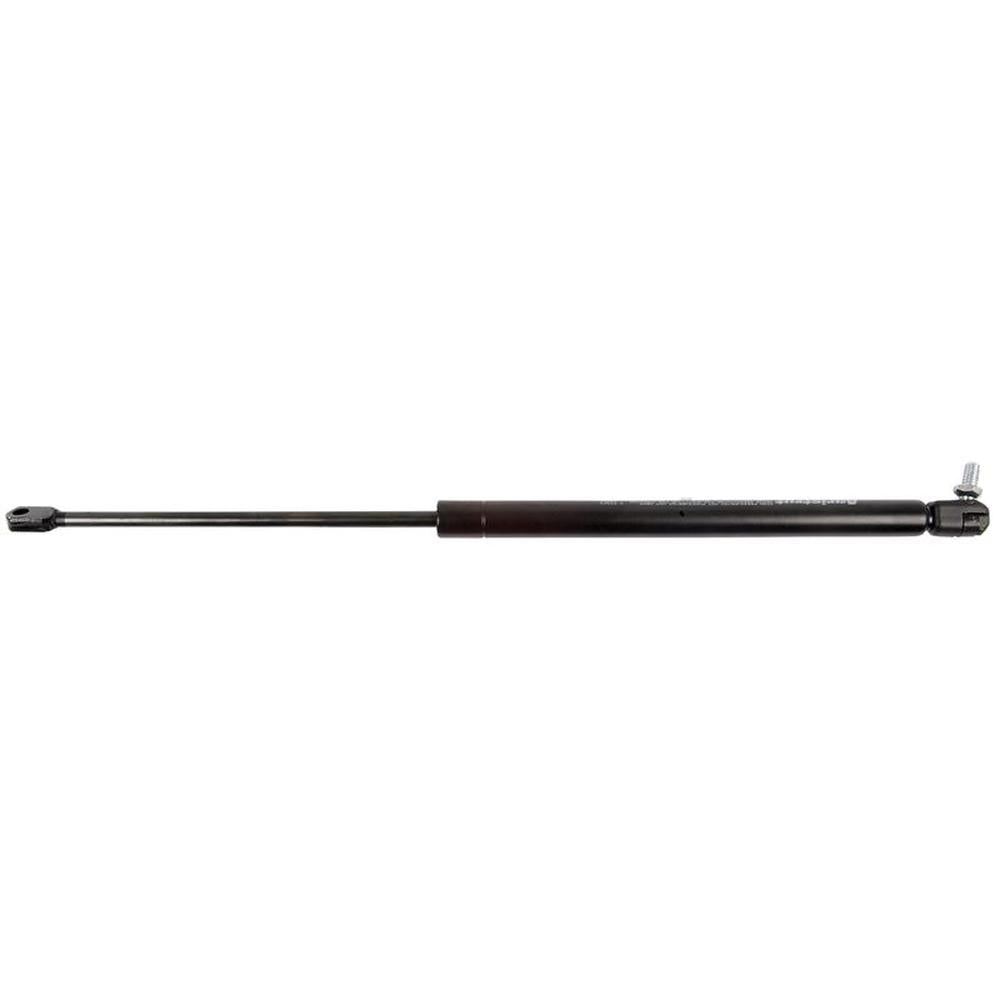

One New Aftermarket Replacement Gas Strut Spring Cylinder Fits Case IH (Fits Case/International Harvester) 3200 and 4200 Series Tractors

This gas strut spring cylinder supports and holds open the rear windscreen (rear cab window) on Fits Case IH 3200 and 4200 series tractors. The strut uses a ball joint plastic end fitting on one end and a metal eyelet on the other, providing controlled, dampened movement for safe and convenient cab access.

Specifications

Total Length: 450mm
Stroke: 185mm
Pressure: 150 N
Cylinder Outer Diameter: 18mm
Ram Diameter: 8mm

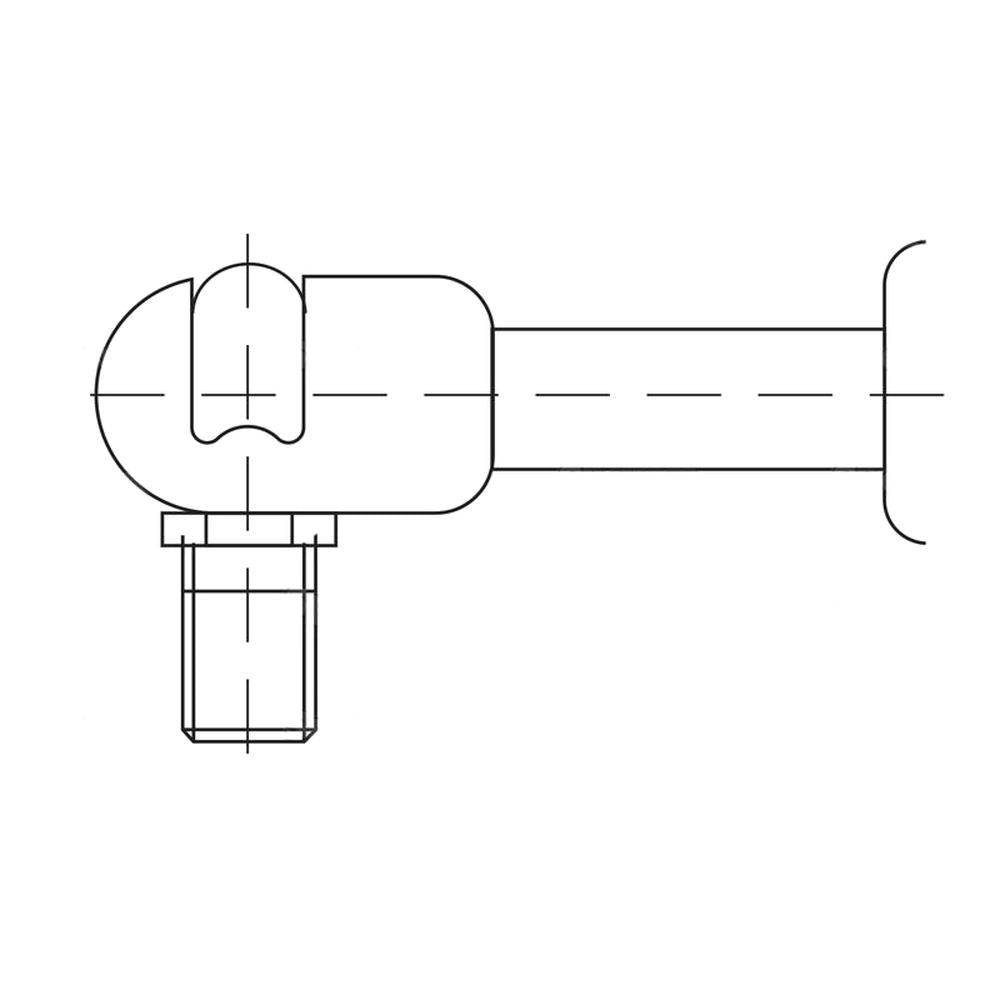

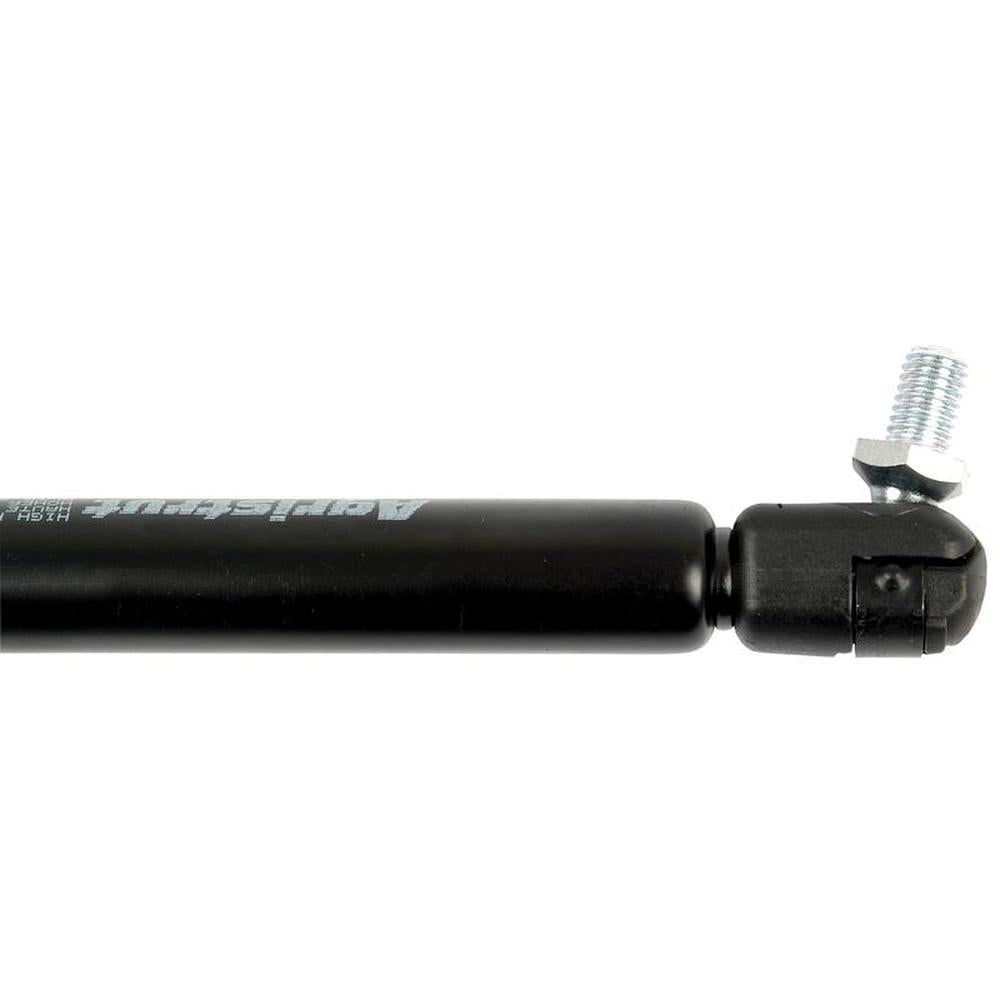

End Fitting 1: Ball Joint (Plastic) M8 x 13mm Thread

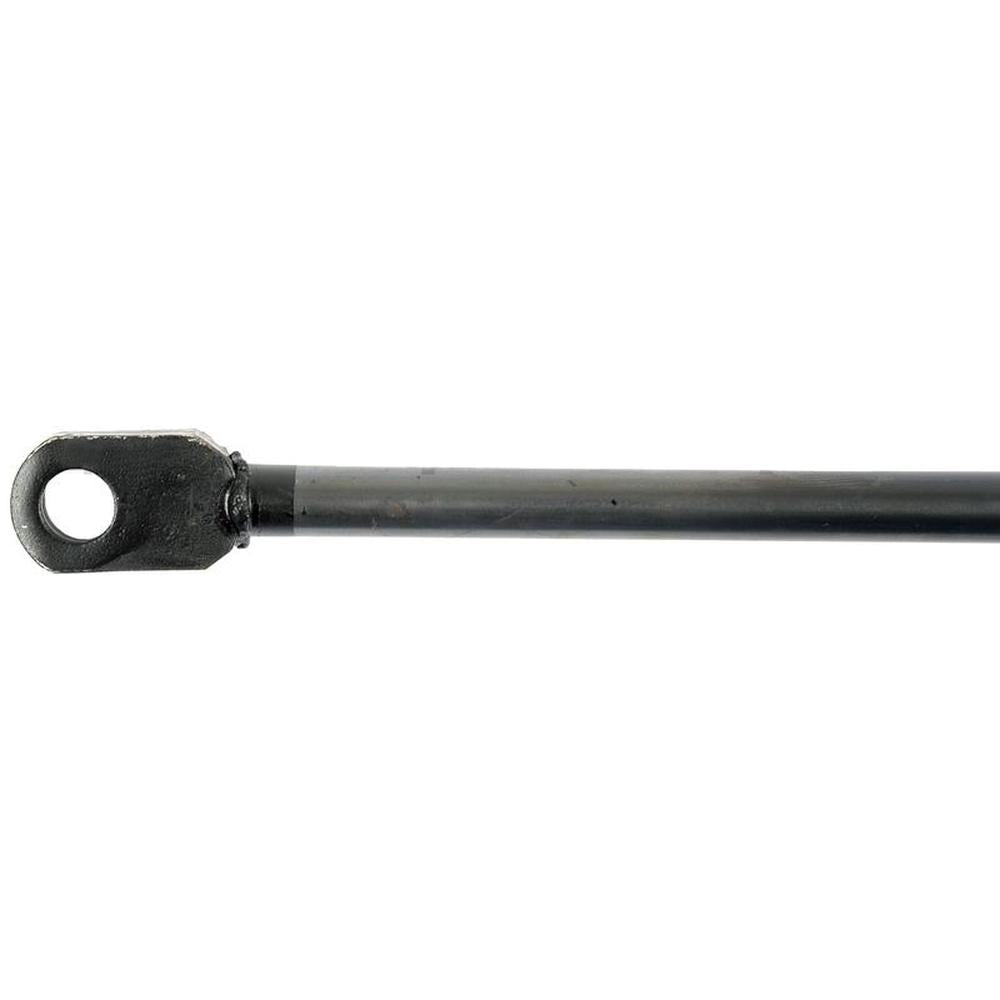

End Fitting 2: A6 Eyelet (Metal) 8mm Diameter, 8mm Wide
Fits: Rear Windscreen

Compatible Models

Fits Case IH 3200 Series: 3210, 3220, 3230

Fits Case IH 4200 Series: 4210, 4220, 4230, 4240

Replaces Part Number(s):

144947A1, 144947A2

Aftermarket Interchange Numbers

S.52903, S.52903-SPX

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

3210, 3220, 4210, 4240, 4220, 3230, 4230

Additional Information:

Cylinder Outer Diameter: 18mm End Fitting 1: I Ball Joint (Plastic) M8 x 13mm Thread End Fitting 2: A6 Eyelet (Metal) 8mm Diameter, 8mm Wide Fits: Rear Windscreen Pressure: 150 N Ram Diameter: 8mm Stroke: 185mm Total Length: 450mm
