Gas Strut Hood Fits Case/International Tractor 5120 5220 1531489C1
Gas Strut Hood Fits Case/International Tractor 5120 5220 1531489C1
Regular price
$50.00 CAD
Regular price
Sale price
$50.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

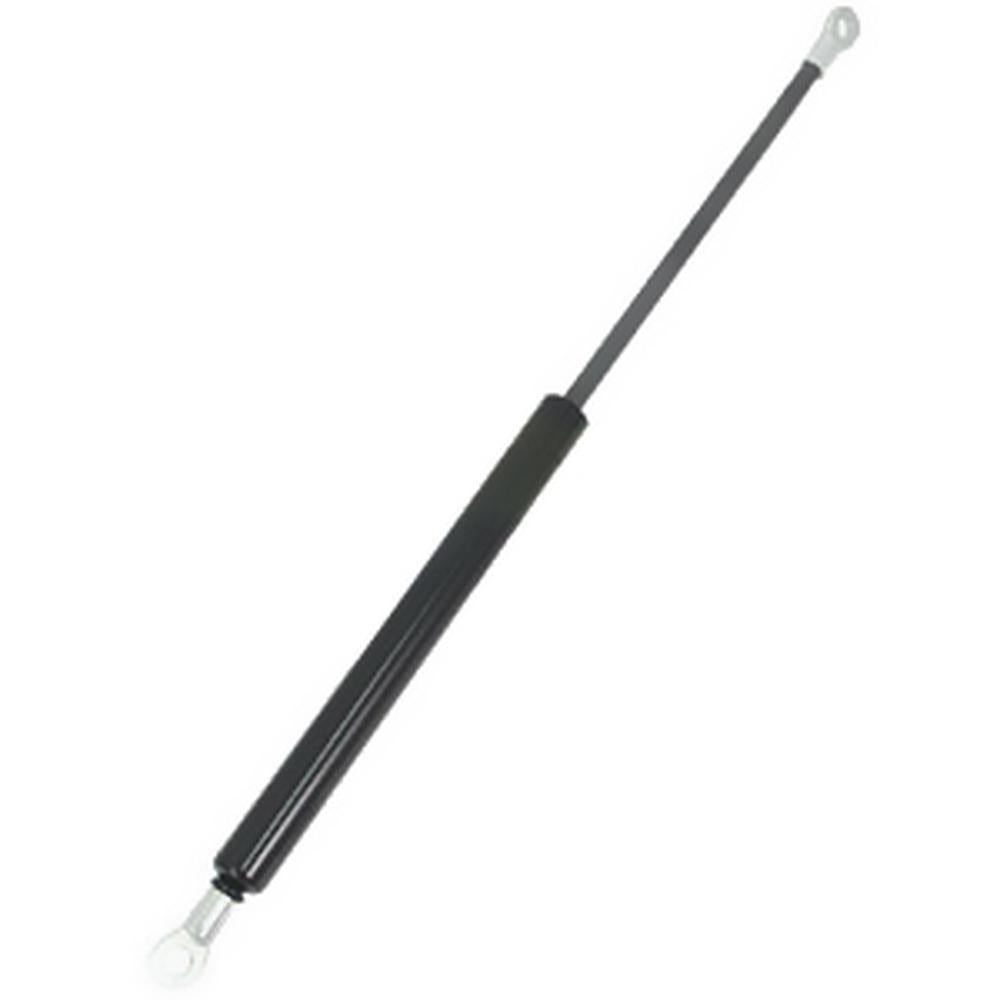

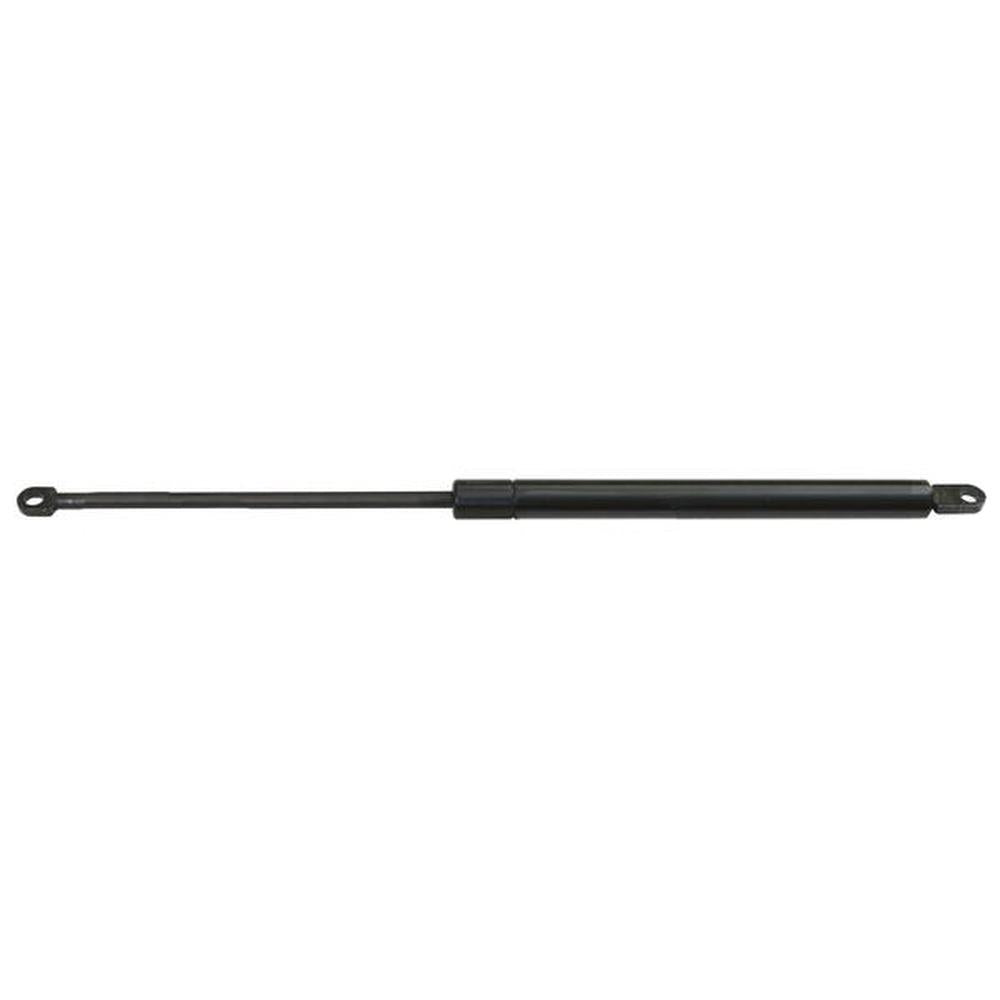

One New Aftermarket Replacement Gas Strut (Hood) for Case IH / International Harvester Maxxum Series Tractors
This hood gas strut supports and holds the engine hood open on Case IH (Case/International Harvester) Maxxum series tractors. The gas-charged spring strut mounts between the hood and the chassis, providing controlled lift assistance and keeping the hood safely propped while servicing the engine.
Specifications
- Total Length (Extended): 400 mm
- Minimum Length (Compressed): 245 mm
- Ram Stroke: 162 mm
- Cylinder Outer Diameter: 18 mm
- Ram Diameter: 8 mm
- End Fittings: Metal eyelet, 8 mm diameter (both ends)
- Force: 250 N
Compatible Models
Case IH / International Harvester Maxxum Series: 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250
Replaces Part Number(s):
1531489C1, T103262
Aftermarket Interchange Numbers
55090, S.19454
New aftermarket replacement part - not remanufactured, not used.
