G1100KRRB-IMP Bearing for Universal Products
G1100KRRB-IMP Bearing for Universal Products
Couldn't load pickup availability
One New Aftermarket Replacement Insert Ball Bearing for Universal Products Agricultural Equipment

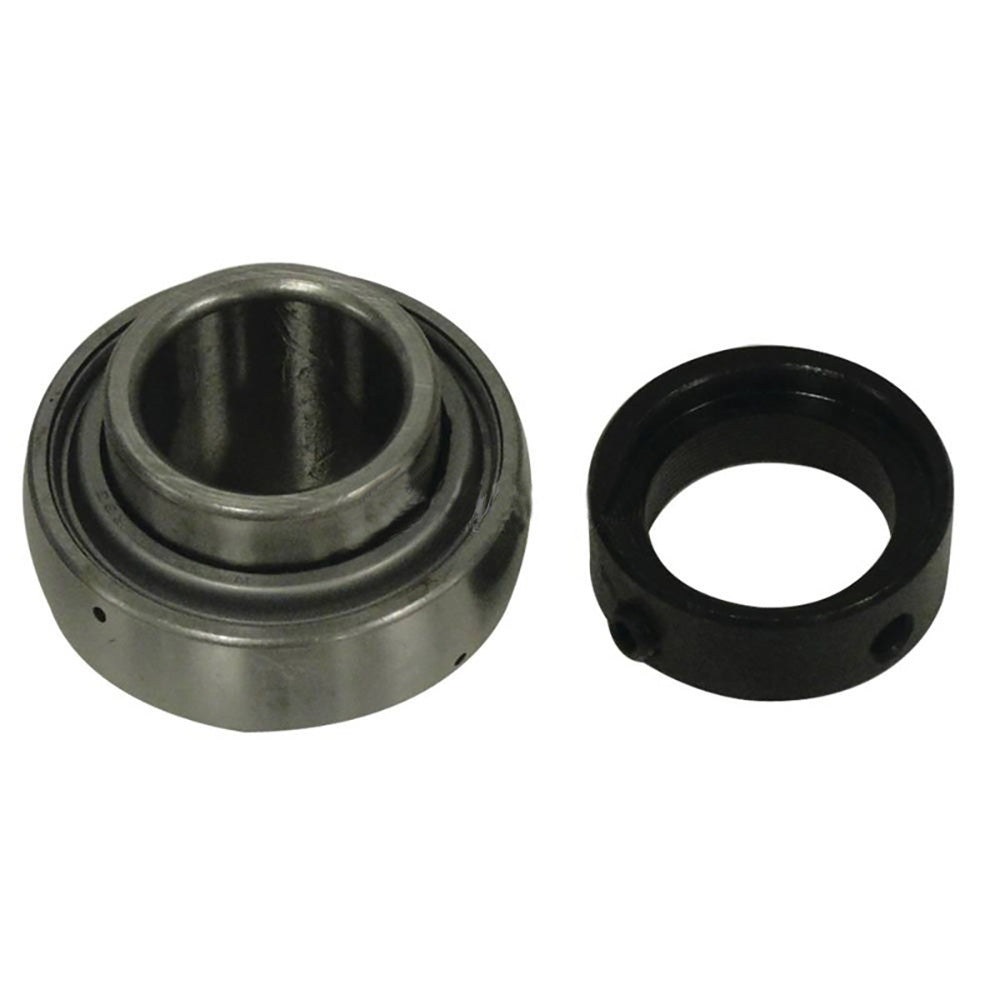

This aftermarket replacement insert ball bearing (G1100KRRB-IMP) is a wide inner ring, relubricatable ball bearing insert with a spherical outer diameter and eccentric locking collar. It is commonly used in agricultural machinery drive and conveyor systems where a 1-inch bore insert bearing is required. The sealed construction protects against dirt and debris ingress while the spherical OD allows for angular misalignment in housing applications.
Specifications
- Bearing Type: Wide Inner Ring Insert Ball Bearing
- Bore Diameter: 1.00 in (25.4 mm)
- Outside Diameter: 2.0472 in (52 mm)
- Width: 1-3/8 in (34.93 mm)
- Outer Race Shape: Spherical OD
- Shaft Lock Type: Eccentric Locking Collar
- Seal Type: Double Rubber Seal (2RS)
- Lubrication: Relubricatable / Greaseable
- Dynamic Load Rating: 3490 lb
- Static Load Rating: 1760 lb
- Max RPM: 4540
- Temperature Range: -50 to 120 deg C
Compatible Models
This is a universal-fit agricultural insert bearing. Compatible with a wide range of agricultural equipment from John Deere, Case IH (Case), New Holland, Massey Ferguson, International Harvester (IH), and other brands using a 1-inch bore G-KRRB series insert bearing. Verify bore size and housing type before ordering.
Replaces Part Number(s):
G1100KRRB-IMP
Aftermarket Interchange Numbers
G1100KRRB (Timken/Fafnir OEM), SKF G1100KRRB, HIB10-0256
New aftermarket replacement part - not remanufactured, not used.
