Front Left Drive Shaft CV Axle Assembly Fits Yamaha Replaces 5KM-2510F-11-00

Front Left Drive Shaft CV Axle Assembly Fits Yamaha Replaces 5KM-2510F-11-00

$144.00 CAD
$144.00 CAD
Sale Sold out
Shipping calculated at checkout.

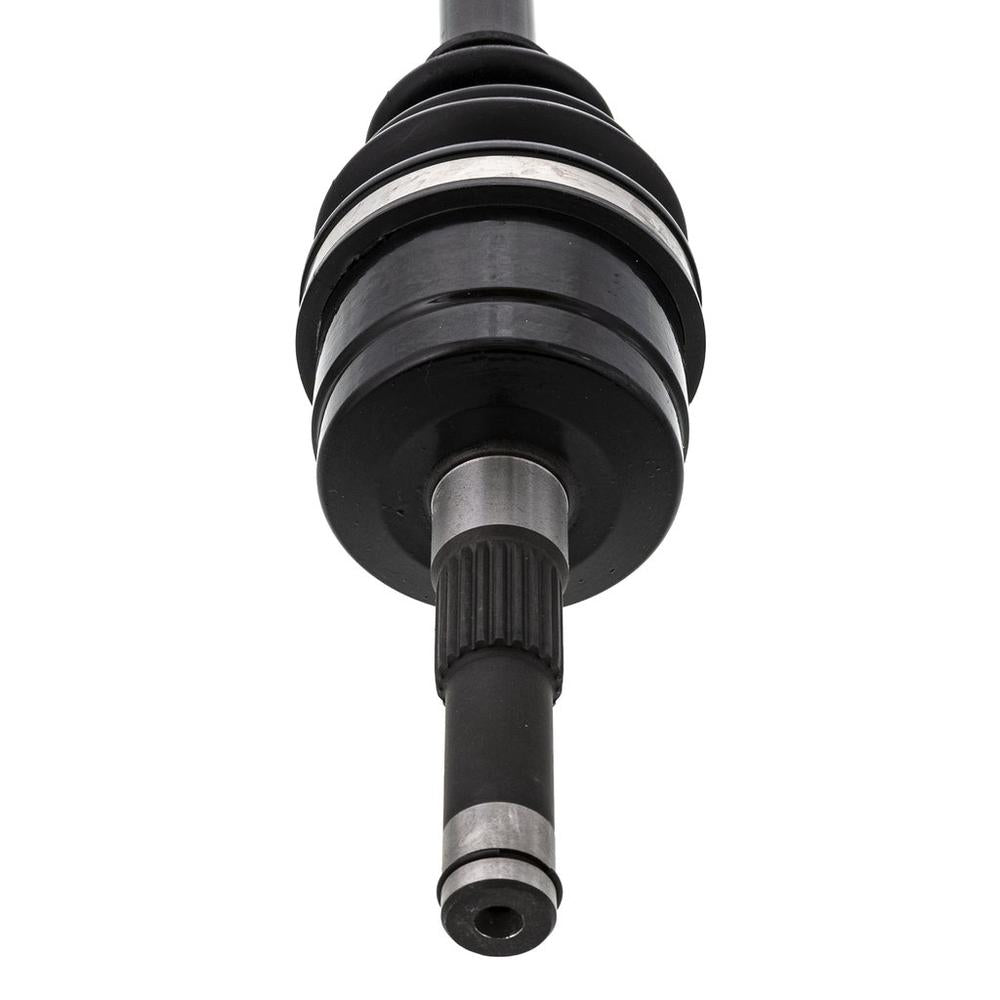

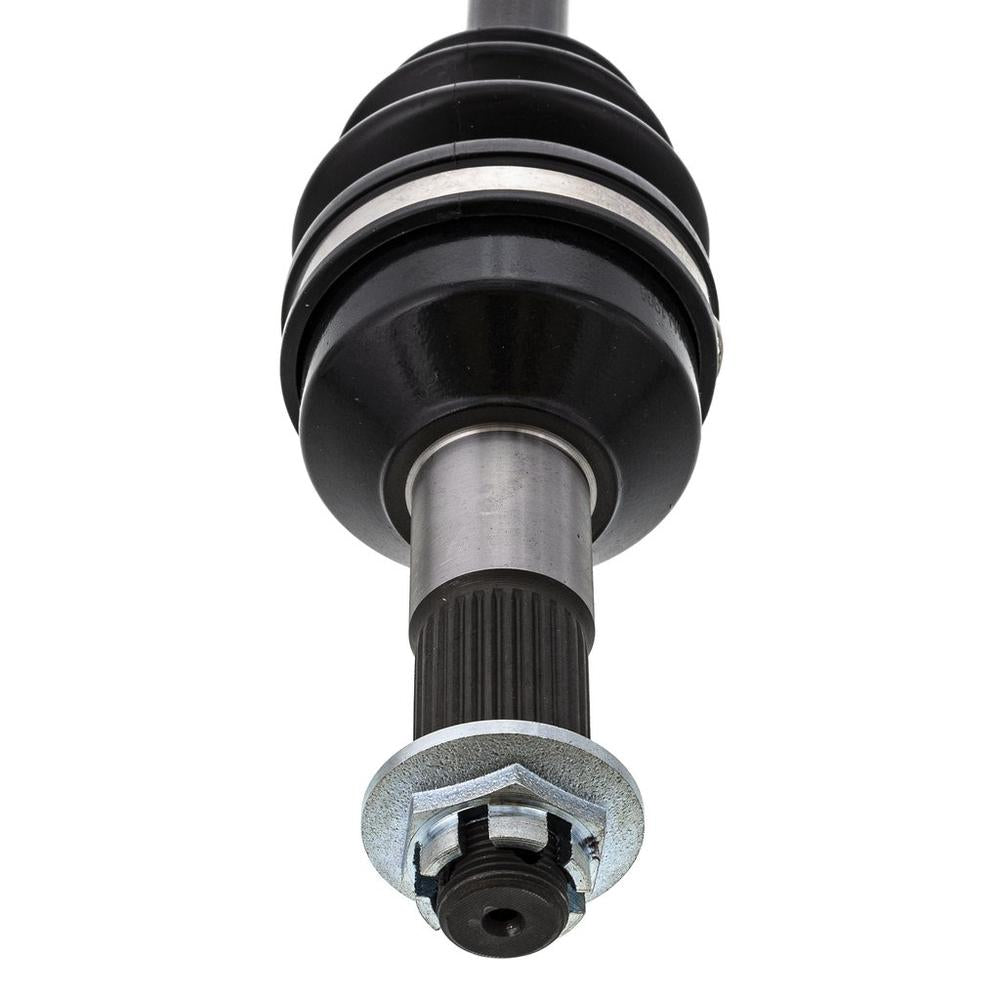

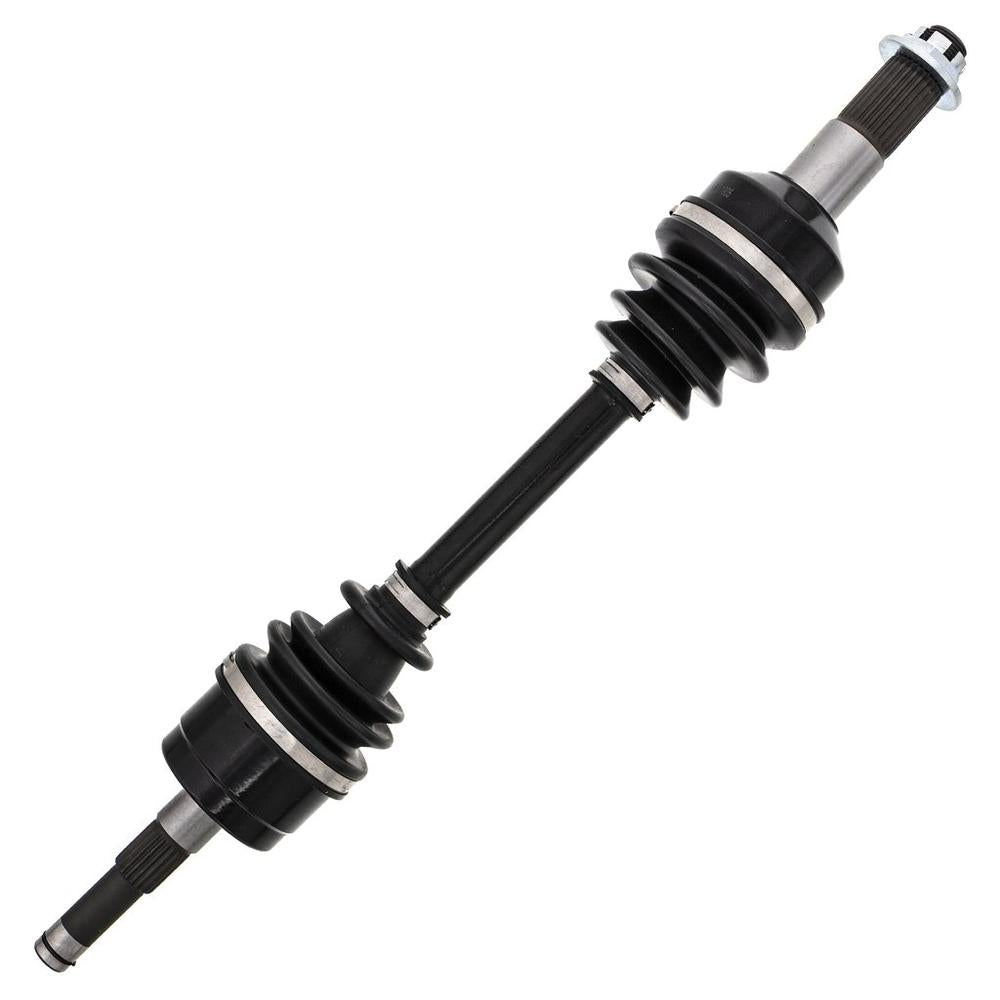

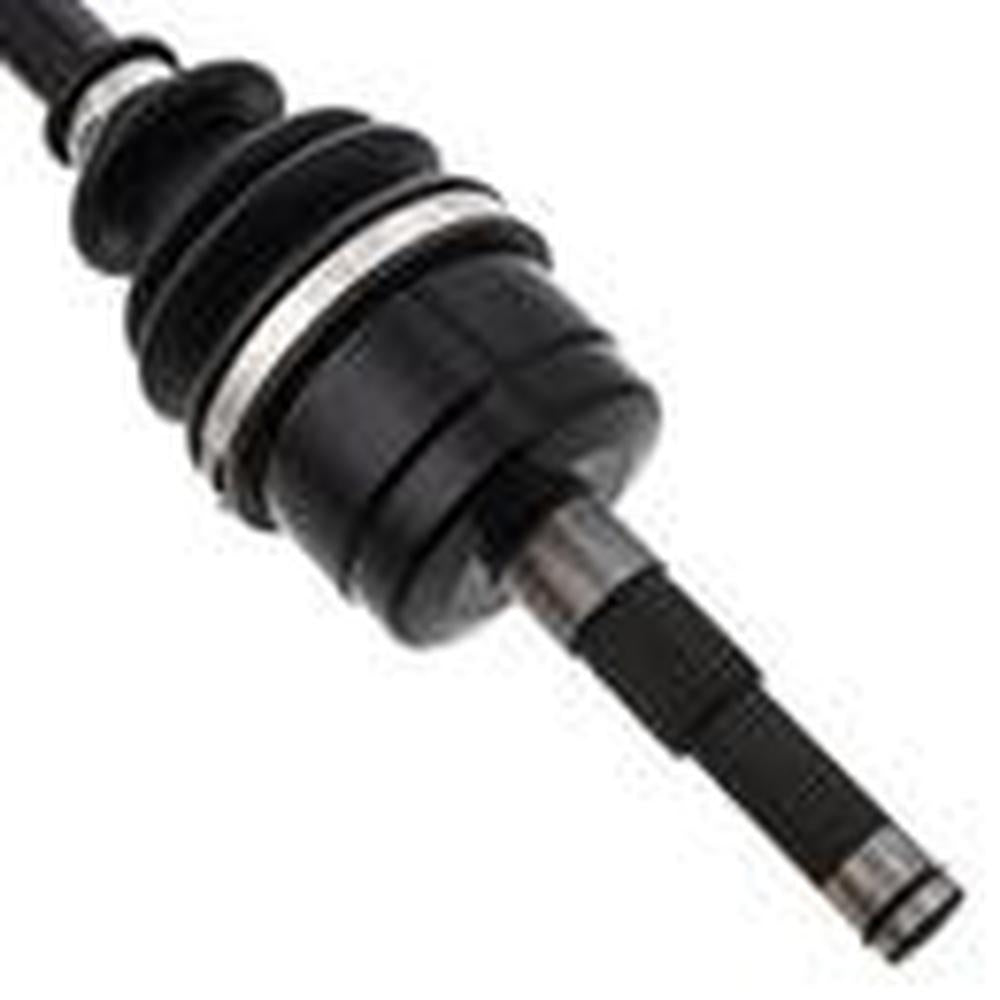

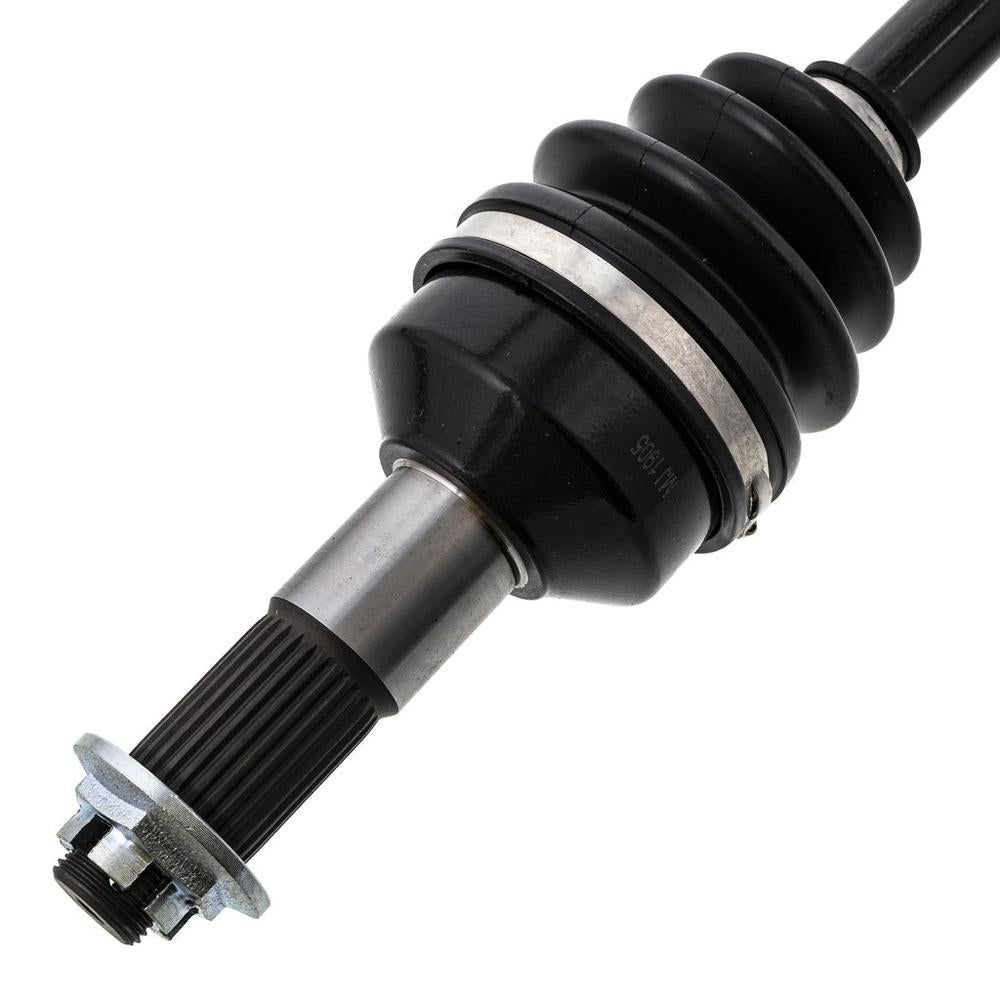

One New Aftermarket Front Left Drive Shaft CV Axle Assembly

Tech Info:
 -Included Hardware: YES
 -Inner Diameter: 2 11/16 (2.717 Inches)
 -Material: 40Cr Steel
 -Axle Length: 20 7/8 (20.866 Inches)
 -Boot Material: Neoprene Polychloroprene (CR)
 -Inboard Spline Diameter: 2 11/16 (2.717 Inches)
 -Inboard Splines: 21 Teeth
 -Outboard Spline Diameter: 2 3/4 (2.72 Inches)
 -Outboard Splines: 27 Teeth
 -Shaft Diameter: 13/16 (0.827 Inches)
 -Shaft Material: 40Cr Steel
 -Thread Measurement: M20X1.5

Made to Fits Yamaha:
 ATV/RTV/UTV Models: Grizzly 660 4X4, Grizzly 660 Hunter Edition 4X4, Grizzly 660 Ducks Unlimited Edition 4X4, Grizzly 660 Outdoorsman Edition 4X4, Grizzly 660 Special Edition 4X4
 Model Breaks: Grizzly 660 4X4 (2008, 2007, 2006, 2005), Grizzly 660 Hunter Edition 4X4 (2008, 2007, 2006), Grizzly 660 Ducks Unlimited Edition 4X4 (2006), Grizzly 660 Outdoorsman Edition 4X4 (2006), Grizzly 660 Special Edition 4X4 (2006)
 Replaces Part Number(s): 5KM-2510F-11-00, 5KM2510F1100

Models This Part Fits:

Grizzly 660 Ducks Unlimited Edition 4X4, Grizzly 660 Outdoorsman Edition 4X4, Grizzly 660 Special Edition 4X4, Grizzly 660 4X4, Grizzly 660 Hunter Edition 4X4

Additional Information:

Included Hardware: YES Inner Diameter: 2 11/16 (2.717 Inches) Material: 40Cr Steel Axle Length: 20 7/8 (20.866 Inches) Boot Material: Neoprene Polychloroprene (CR) Inboard Spline Diameter: 2 11/16 (2.717 Inches) Inboard Splines: 21 Teeth Outboard Spline Diameter: 2 3/4 (2.72 Inches) Outboard Splines: 27 Teeth Shaft Diameter: 13/16 (0.827 Inches) Shaft Material: 40Cr Steel Thread Measurement: M20X1.5

Reference Numbers:

5KM-2510F-11-00, 5KM2510F1100
