Five (5) New Aftermarket Replacement Connecting Links Chain #35

Five (5) New Aftermarket Replacement Connecting Links Chain #35

$15.00 CAD
$15.00 CAD
Sale Sold out
Shipping calculated at checkout.

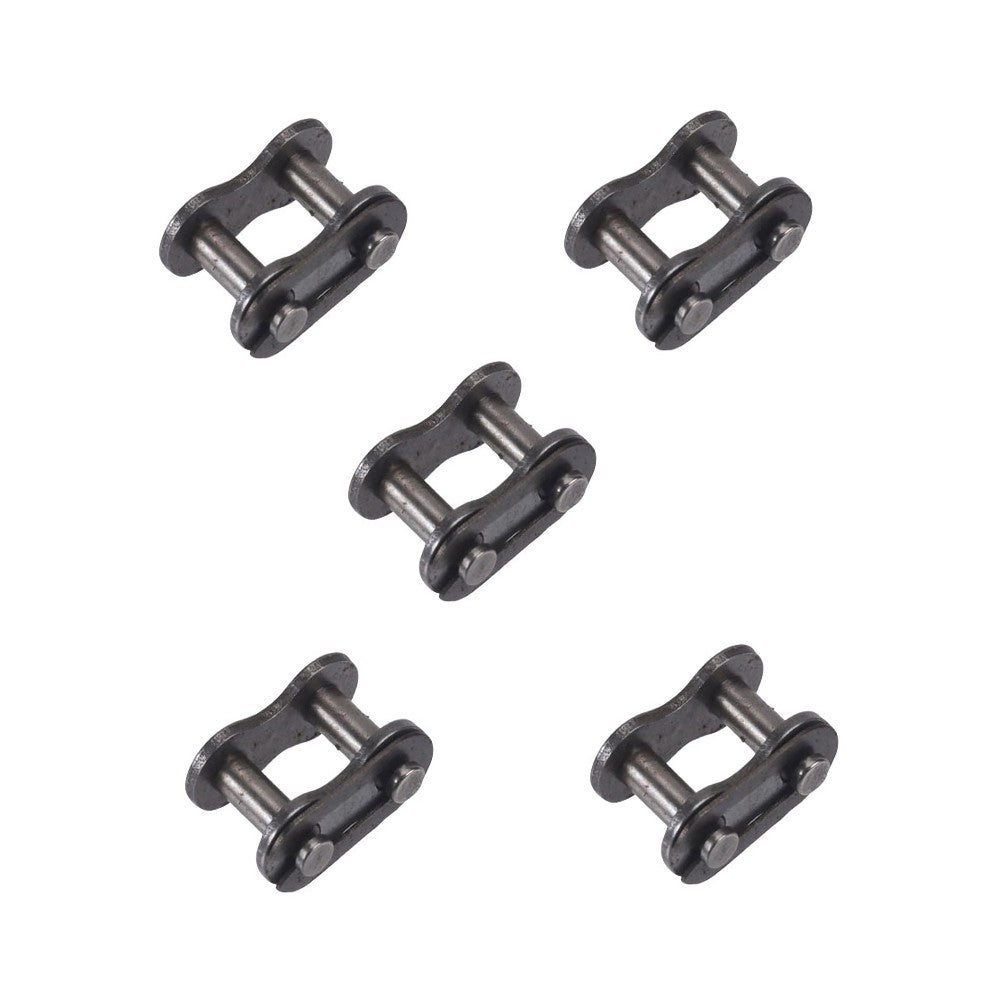

Five (5) New Aftermarket Replacement Connecting Links, Chain #35


Item Specs:
#35
Pitch (P): 0.375 inch (9.525 mm)
Roller Diameter (d1 max): 0.2 inch (5.08 mm)
Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm)
Pin Diameter (d2 max): 0.141 inch (3.58 mm)
Pin Length (L max): 0.488 inch (12.40 mm)
Pin Length (Lc max): 0.518 inch (13.17 mm)
Inner Plate Depth (h2 max): 0.354 inch (9.0 mm)
Plate Thickness (T max): 0.051 inch (1.30 mm)
Ultimate Tensile Strength (Q min): 7.90/1795 kN/LB
Average Tensile Strength Qo): 10.8 kN
Weight (q): 0.221749 lb/ft (0.33 kg/m)

Replaces Part Number: B1SB400

Models This Part Fits:

020, 342AT, 459, 459WS, 210-031, #35, RB-300, 210-310-000, 210-031-009, 456T/WS, 210-020-000, 210-031-205, RB-510, 210-020-192, Walk-Behind Mowers, Rear-Engine Riding Mowers, 466AWS, 678, 456A, 342, RB-210, 031, 359WS, 210-031-000, 466T/WS, 035, 210-020-205, 1666234, Snow Throwers, 177-930, 346T/WS, 466AT, 456AT, 466, 342T/WS, 456, Tillers, 031-206, 342AWS, 359, 466A, TX, 459T, Fits Gator: TS, 456AWS, 210-031-192, 346, 030

Additional Information:

Includes Five Chain Connecting Links Pitch: 3/8" Width Between Inner Plates: 3/16" Roller Diameter: 0.2" Fits #35 Roller Chain

Reference Numbers:

913-0139, 713-0139, 7130139, SWC35CO, AH77091, AE24024, AE26916, 7-6486, 7076486, 76486, AH77091, B1SB400, 02-188, 02188, 713-0139, 7130139, 913-0139

Product Sub Group:

Chain Links and Parts
