Fits John Deere R34764 Washer

Name: Fits John Deere R34764 Washer
SKU: AGER1896086
Price: 19.0 USD
Availability: InStock

Fits John Deere R34764 Washer

$19.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

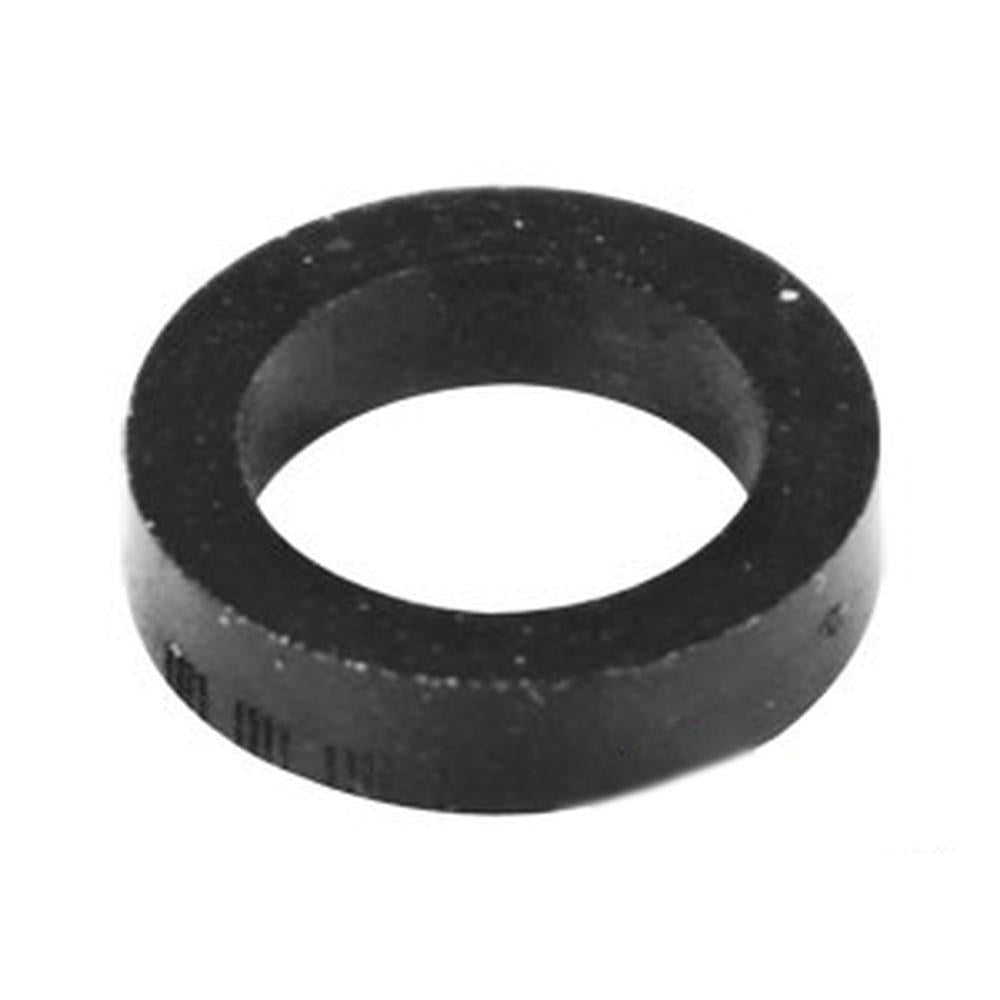

One New Aftermarket Replacement Injector Washer Fits John Deere Tractors, Combines, and Construction Equipment

This aftermarket replacement injector washer Fits John Deere equipment equipped with pencil-style (Stanadyne) fuel injectors. The washer seats at the upper end of the injector nozzle, sealing between the injector body and the cylinder head to prevent combustion gas leakage. It is a critical component of the diesel fuel injection system and should be replaced any time injectors are removed and reinstalled.

Specifications

Inside Diameter: .380" (9.67mm)
Outside Diameter: .565" (14.36mm)
Thickness: .128" (3.26mm)

Compatible Models

Fits John Deere Tractors: 820, 830, 840, 920, 930, 940, 1020, 1030, 1032, 1040, 1042, 1120, 1130, 1133, 1140, 1144, 1157, 1350, 1445F, 1520, 1530, 1630, 1640, 1745F, 1750, 1750V, 1830, 1840, 1845F, 1850, 1850F, 1850N, 1850V, 2020, 2030, 2040, 2040S, 2120, 2130, 2150, 2155, 2240, 2250, 2250F, 2255, 2320, 2345F, 2350, 2355, 2420, 2440, 2450, 2450F, 2510, 2520, 2550, 2555, 2555CS, 2630, 2640, 2650, 2840, 2850, 2855, 2855N, 2940, 2950, 2955, 3020, 3030, 3040, 3050, 3055, 3110, 3120, 3130, 3140, 3150, 3155, 3210, 3255, 3300, 3350, 3430, 3640, 4040, 4080, 4280, 4400, 5000, 5300, 5300N

Fits John Deere Combines: 3300, 4400, 4420, 4425, 4435, 6600, 9900, 9910, 9920, 925, 932, 935, 942, 950, 955

Fits John Deere Cotton Pickers/Strippers: 480, 480A, 480B, 480C, 482C, 484, 490, 7440, 9900, 9910, 9920

Fits John Deere Sprayers/Hi-Cycle: 600, 600A, 734, 6000

Fits John Deere Windrowers/Swathers: 2270, 2280, 2380

Fits John Deere Construction and Industrial: 24, 34, 44, 54, 70, 70D, 244E, 290D, 350, 350A, 350B, 350C, 350D, 355D, 380, 400G, 440, 440A, 440B, 444D, 450, 450A, 450B, 450C, 450D, 455B, 455C, 455D, 484, 540A, 570, 570A, 570B, 820, 830

Fits John Deere Skidders/Crawlers: 440, 440A, 440B, 540A

Replaces Part Number(s):

R34764, RE32011, NRE32011, R60746, 739227

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

930, 1030, 1140, 450A, 3350, 70, 570B, 2250F, 2520, 932, 1850V, 450C, 2345F, 1042, 7440, 2320, 2020, 3380, 1850, 2150, 455B, 2270, 570, 1530, 2940, 1445F, 600A, 2630, 2350, 380, 54, 3430, 2955, 1120, 9900, 490, 2130, 1750, 3210, 1350, 2850, 355D, 450B, 4425, 2240, 484, 4280, 440, 2380, 2555, 9910, 5300N, 1550, 5300, 70D, 2420, 2510, 2855, 3640, 820, 244E, 1850N, 734, 3255, 290D, 3120, 1130, 2250, 2855N, 1845F, 350, 1133, 600, 3130, 1850F, 44, 450, 6600, 34, 4400, 1032, 925, 830, 1040, 455C, 2550, 6000, 440A, 4420, 2950, 24, 1144, 350A, 2040S, 1830, 2450F, 3300, 480A, 2650, 540A, 3140, 450D, 570A, 2030, 2450, 3055, 955, 2440, 2555CS, 1840, 400G, 2355, 920, 4080, 2280, 2640, 3155, 2840, 4040, 3030, 935, 9920, 350B, 2255, 480B, 444D, 1745F, 350C, 1520, 4435, 482C, 350D, 5000, 1020, 3040, 950, 3110, 1640, 840, 1157, 480C, 3150, 1630, 2120, 942, 2040, 440B, 455D, 1750V, 3050, 2155, 3020, 480
