Fits John Deere AW23611 Cross and Bearing Assemb

Fits John Deere AW23611 Cross and Bearing Assemb

$82.00 CAD
$82.00 CAD
Sale Sold out
Shipping calculated at checkout.

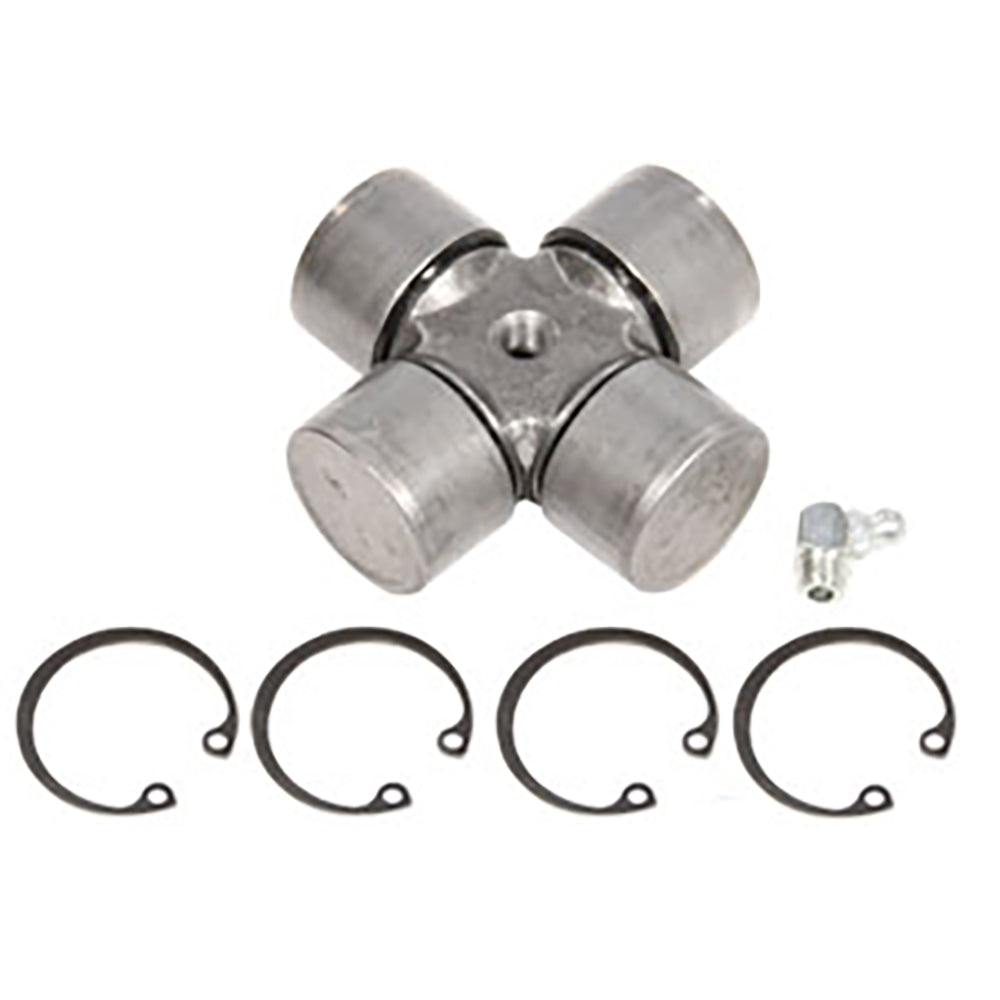

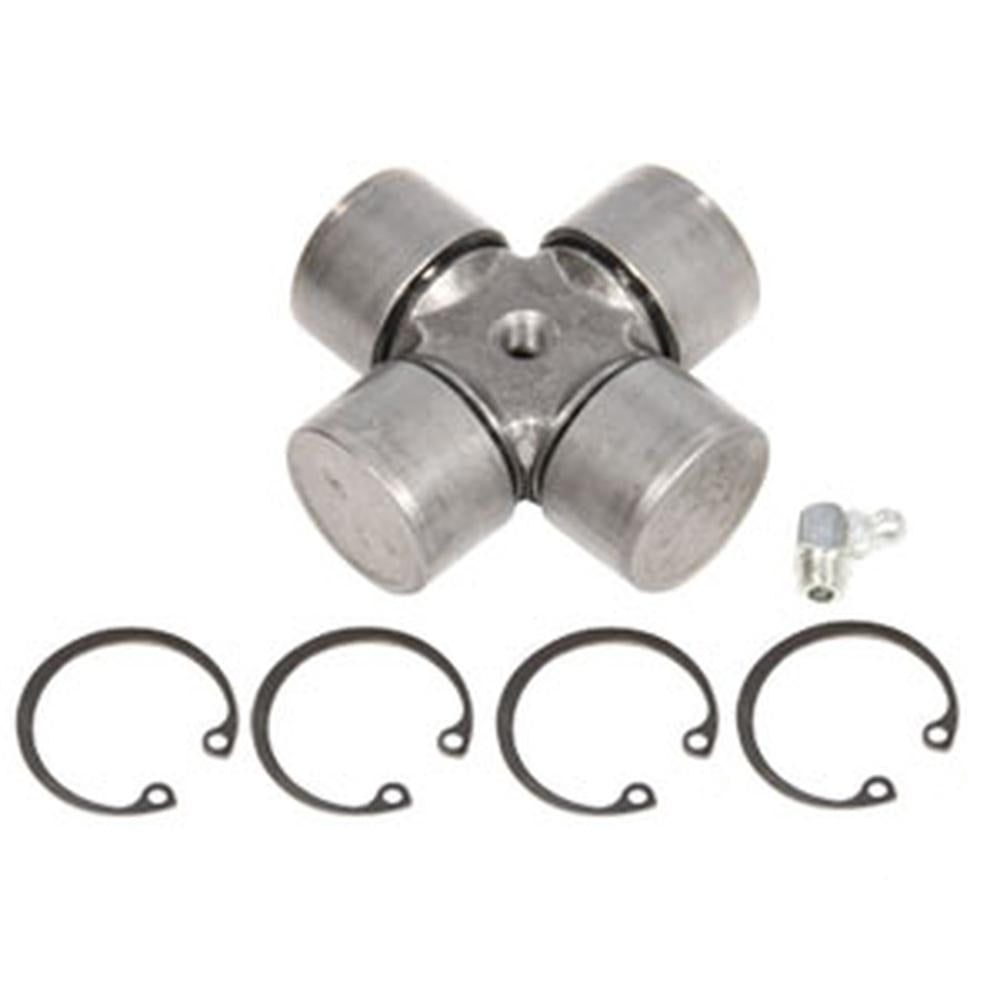

One New Aftermarket Replacement Cross and Bearing Kit for John Deere (JD), Walterscheid, Kuhn, Vermeer, Massey Ferguson, New Holland, Hesston, and More

This aftermarket replacement PTO driveline cross and bearing kit fits a wide range of agricultural equipment including round balers, mower conditioners, disc mowers, rotary cutters, cornheads, and square balers. The kit installs in the constant-velocity powerline of the PTO driveshaft and is a direct replacement for John Deere OEM part number AW23611. Grease zerk is located in the center of the cross for easy lubrication access.

Specifications

  • Cross and Bearing Kit
  • Size: 32 mm x 76 mm
  • Snap Ring Location: External
  • Grease Zerk Location: Center
  • Power Rating: 53 HP at 540 RPM / 83 HP at 1,000 RPM
  • Type Code: 02
  • Diameter: 1.260 in | Length: 2.990 in

Compatible Models

John Deere Round Balers: 572, 578, 582, 590, 592, 600, 604, 605, 606, 607, 608, 609, 610, 611, 612, 613, 614, 615, 616, 623, 630A, 630B, 640C, 644, 645C, 665R, 678, 717, 7260, 744, 780, 840, 842, 852, 854

John Deere Cutting Platforms / Cornheads: 606, 608, 612, 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625D, 630F, 630D, 630R, 635D, 635F, 635R

John Deere Rotary Cutters: 1008, 1018, 1418, 1518, HX6, HX7, HX10, HX14, HX15, HX20, CX15, CX20, MX8, MX10, MX15, M15, M20, R10, R15, R20

John Deere Mower Conditioners / Disc Mowers: FC10R, FC15E, FC15M, FC15R, FC20M, FC20R, FC300G, FC300GT, FC300RG, FC300RGT, FC301G, FC302, FC302G, FC302GI, FC302GV, FC302MN, FC302RG, FC313, FC313D, FC313DF, FC313F, FC313RF, FC313TG, FC350, FC350G, FC350GT, FC350RG, FC352G, FC352MN, FC352RG, FC3160TLD, FC3160TLR

John Deere Miscellaneous: 127, 131, 135, 152, 228, 228A, 300, 324, 328, 331, 360, 370, 390, 509, 540, 545, 550, 565, 568, 570

Walterscheid: W Series 2400, WWE Series 2480

Kuhn Disc Mowers: GMD240, GMD240HD, GMD280, GMD280HD, GMD283TG, GMD310, GMD310-FF, GMD310HD, GMD313TG, GMD350, GMD500S, GMD500SHD, GMD600GII, GMD600GII HD, GMD602, GMD602GII, GMD700GII, GMD700GII HD, GMD702, GMD702GII, GMD800GII, GMD800GII HD, GMD802, GMD902, GMD2810, GMD2850TL, GMD3110, GMD3150TL, GMD3510, GMD3550TL, GMD4010, GMD4050TL, GMD4410, GMD8730, GMD77HD

Kuhn Mower Conditioners: FC302GI, FC313D, FC350, FC350GT, FC3160TLR, FC3160TLD, FC350RG, FC313F, FC313RF, FC352RG, FC352G, FC352MN, FC302MN, FC302RG

Land Pride Rotary Cutters: RC2560, RC2572, RC2584, RC3560, RC3572, RC3584, RC35120, RC45180

Massey Ferguson: 164 (s/n DZ000427C and later), 166 (s/n DZ000427C and later)

New Holland: D800 (2/1992-12/1994), D1000 (2/1992-12/1994), 411 (s/n 856624 and later), 412 (3/1992-7/1994), 415 (4/1992-10/1995)

New Idea: 3222, 3229, 3322, 3329

Vermeer Round Balers: 504I (s/n 2390 and later), 504L, 504M, 505L, 505M, 554XL, 555XL, 604K, 604L, 604M, 604XL, 605J (s/n 531-670), 605K, 605L, 605M, 605XL, 606, 608, 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625D, 625F, 625R, 630F, 630R, 635D, 635F, 635R, BC606, BC906, 2044TR, 2054TR, 2636VM, 3245VM, 3954VM, 5030, 5040, 6030, 6040, 7030, 7040, 7725TR, 8018TR, 8024TR, 8030, 8030TR, 8032TR, 8040, 8040TR, 8118TR, 8124TR, 8500, 8720, 8865, 9520, 9524, 9530, D1000, D800, YT2350 2690765

Hesston / Massey Ferguson: 256, 275

Snapper / Other: 1040, 1050, 1060, 164, 166, 320, 411, 412, 415, 5040

Replaces Part Number(s):

AW23611, AH232127, AW312410A, W312410, 312410, 25553001, 510505801, 26092001, 350000, 350000M, 35.00.00M, 734264, 171-980, 6582182, 658-22421, 65822421, 22421, 200-7676, A2007676, PM200-7676, 343-1206, 500-124-34, 50012434, 41120080, 4242000, B150120, B15-0120, WCB035, 6713-38563

Aftermarket Interchange Numbers

G610707, V46262150Z, V46264344Z, 918-0208-2-1, SW08420

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

7040, 620R, GMD500S, GMD3110, 6030, 8024TR, FC352MN, 320, FC3160TLD, GMD600GII HD, GMD310, WWE Series 2480, 604M, GMD77HD, 8118TR, 411, GMD313TG, GMD350, FC313F, 2054TR, FC302G, GMD240HD, 555XL, 622R, 630F, 606, 615R, 3229, RC3560, 3322, 8032TR, 618R, FC302GV, 9524, 504M, RC2584, RC2572, 164, 7030, 3329, 8040TR, 605J, 1060, 6040, RC45180, GMD240, 8030TR, 630R, 8720, FC302RG, 604K, FC350, 505M, 7200, 8040, GMD802, 8018TR, 604L, FC350GT, 9530, RC3572, 615F, 505L, GMD280, 605M, GMD3510, FC300G, 608, 2636VM, GMD700GII, 8865, 635F, 8030, GMD283TG, GMD600GII, YT2350 2690765, FC313D, GMD4010, GMD902, 3245VM, 504L, 605L, BC906, RC3584, 605XL, 9520, 408, 7725TR, GMD702, 1050, 504I SILAGE, 3954VM, 5030, GMD602, 1040, FC313RF, 8124TR, GMD602GII, FC300GT, 625R, GMD3550TL, BC606, 554XL, GMD800GII, FC300RG, GMD4410, 625D, FC352RG, FC301G, 275, 2044TR, 625F, 8500, 3222, D1000, GMD800GII HD, 618F, RC2560, 635R, 622F, 166, 635D, 630D, FC300RGT, 604XL, 612, GMD3150TL, FC302, GMD310HD, GMD280HD, GMD4050TL, 256, RC35120, W Series 2400, 415, 620F, FC350RG, GMD2810, GMD500SHD, 605K, FC352G, D800, GMD8730, FC313, GMD310-FF, FC350G, GMD702GII, 5040, FC313DF, GMD2850TL, 412, GMD700GII HD, FC302GI, FC3160TLR, FC302MN

Additional Information:

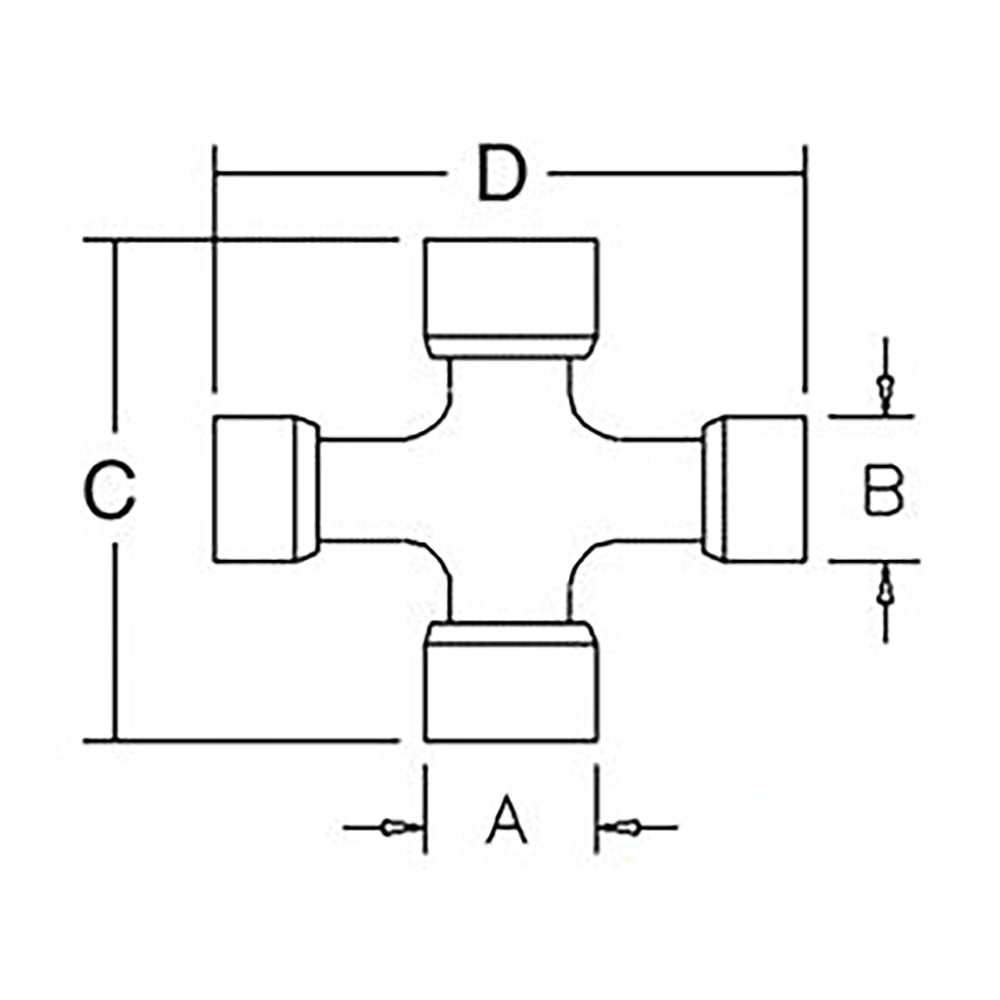

Cross and Bearing Kit. 32 mm x 76 mm (External Snap Ring). Grease zerk located in center. Rated 53 hp @ 540 rpm, 83 hp @ 1,000 rpm. 53 HP @ 540 RPM. 83 HP @ 1000 RPM. Grease Zerk Location Center Size (A/B) 32.0mm x (C/D) 76.0mm Snap Ring Location External

Reference Numbers:

W312410, 350000, 312410, AH232127, 312410, AW23611, PM200-7676, 6713-38563, 350000M, 35.00.00M, WCB035, 4242000, 658-22421, B150120, B15-0120, 350000, 500-124-34, 50012434, A2007676, 41120080, 22421, AW23611, 200-7676, 343-1206, AW312410A, 65822421, 171-980, WCB035, 4242000, 658-22421, B150120, B15-0120, 350000, 500-124-34, 50012434, A2007676, 41120080, 22421, AW23611, 200-7676, 343-1206, AW312410A, 65822421, 734264, 25553001, 510505801, 26092001, 25553001
