Fits International Navistar DT360 Piston Liner Kit 1817250 Qty 1
Fits International Navistar DT360 Piston Liner Kit 1817250 Qty 1
Couldn't load pickup availability
One New Aftermarket Replacement Piston Liner Kit for International / Navistar DT360 Engine
This aftermarket replacement piston liner kit is designed for the International / Navistar DT360 and DTA360 inline six-cylinder turbocharged diesel engine. The kit supplies the cylinder-level components needed during engine rebuilding or in-frame overhaul work. Note: This kit covers one (1) cylinder. For engines with serial numbers between 39375 and 90975, all six cylinders must be replaced together. For engines with serial numbers after 90975, cylinders may be replaced individually.
Specifications
- Engine: International / Navistar DT360 / DTA360 - Inline 6-Cylinder Turbocharged Diesel
- Displacement: 360 CID (5.9L)
- Bore: 4.01 in. (101.90 mm)
- Wrist Pin Diameter: 1.495 in.
- Quantity: 1 cylinder kit (one set per cylinder)

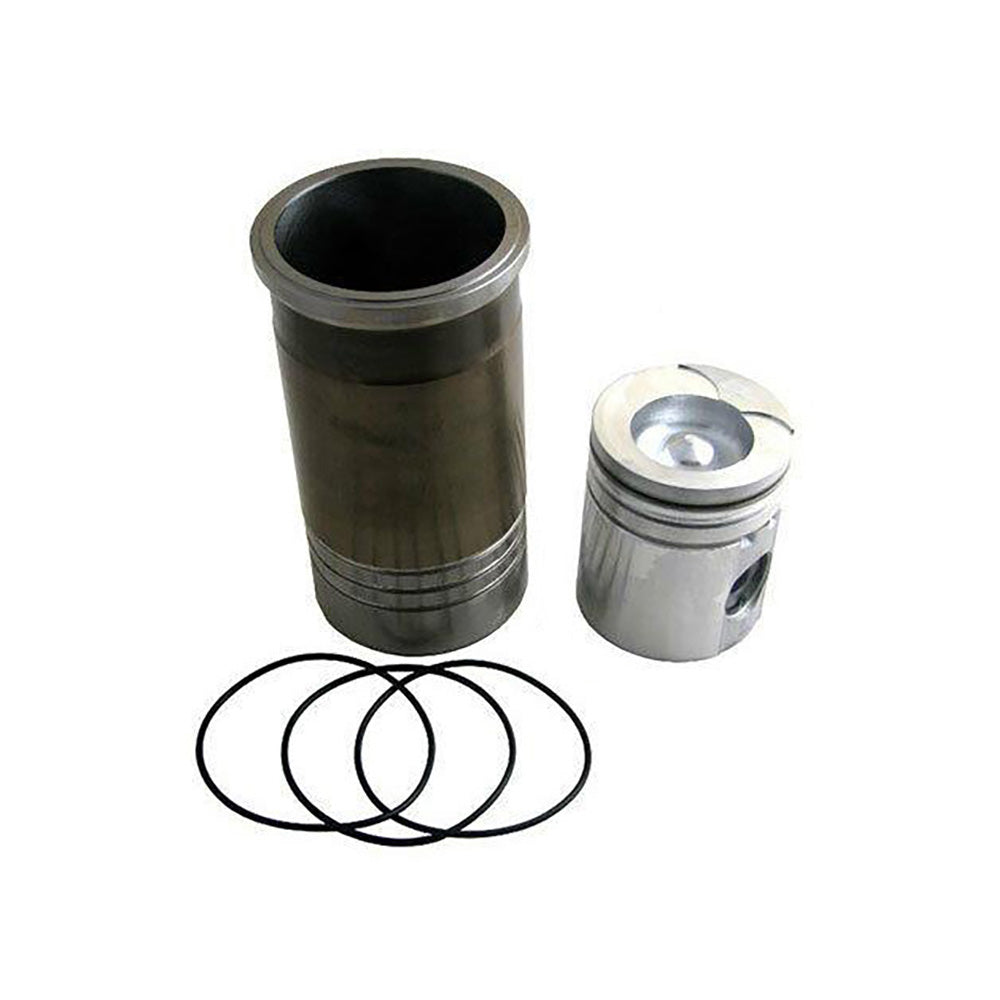

Kit Includes
- 1 x Cylinder Liner
- 1 x Piston
- 1 x Piston Pin
- 2 x Pin Retainers
- Cylinder Liner Seals
- Note: Piston rings may not be included - verify before ordering if ring set is required separately
Serial Number Restriction - Important
Engine Serial Number (ESN) 39375 to 90975: All six cylinders must be replaced at the same time.
Engine Serial Number (ESN) after 90975: Cylinders may be replaced one at a time.
Compatible Models
International / Navistar: DT360, DTA360
Replaces Part Number(s):
1817250, 1817250C92
Aftermarket Interchange Numbers
ENO20-0249, M-1817250C92, M1817250C92, FP1817250, 1809920
New aftermarket replacement part - not remanufactured, not used.
