Fits Delco Starter Repair Kit Fits John Deere 3010 3020 4010 4020 Fits JD500 Fits JD600 1113190 30MT


Fits Delco starter numbers; 1113135, 1113147, 1113148, 1113190, 12301359

Starter repair kit Fits Delco 30MT Internally Rotatable starters used on listed Fits John Deere tractors.

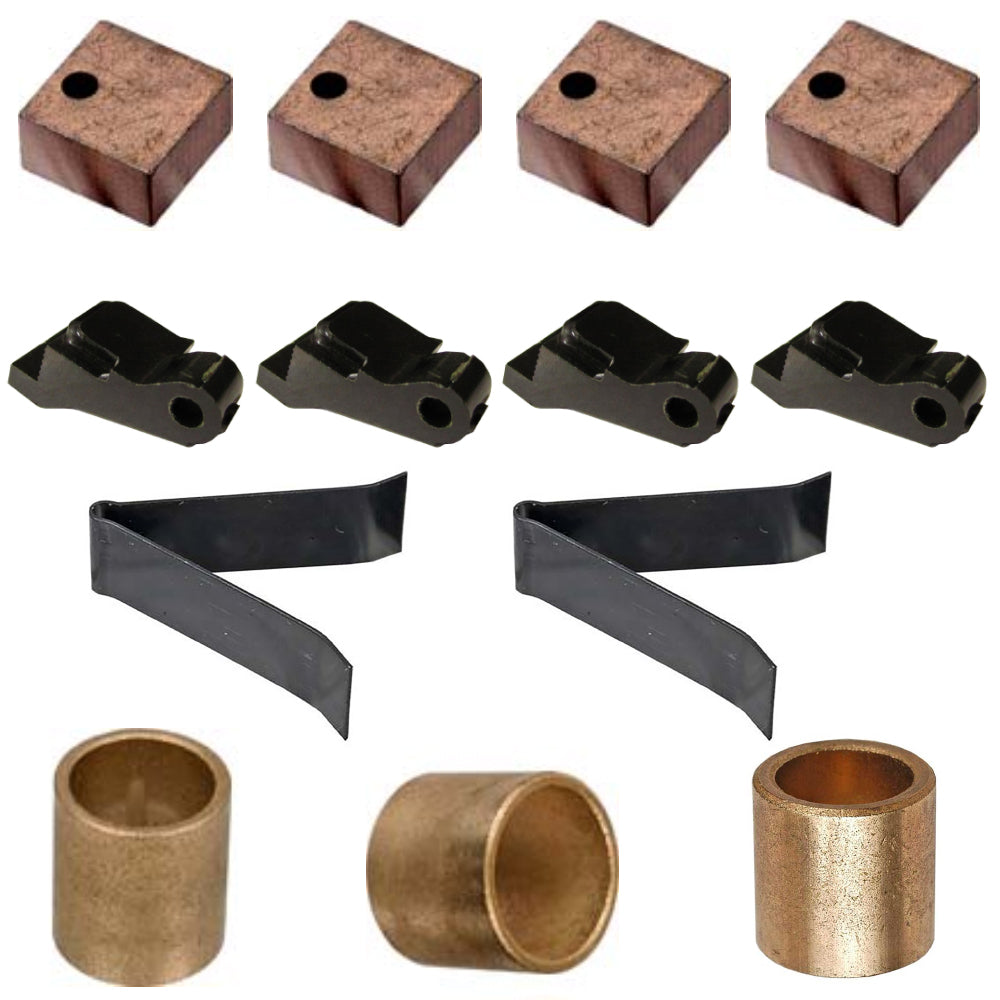

This kit includes 2 brush springs, 4 brush holders, 4 brushes, & 3 bushings.

applications;
Fits John Deere 3020 Diesel 1965 – 1968
Fits John Deere 4020 Diesel 1965 – 1968
Fits John Deere 4010 Diesel 1960 – 1962
Fits John Deere Fits JD500 Diesel 1965 – 1967
Fits John Deere Fits JD500A Diesel 1967 – 1970
Fits John Deere Fits JD600 Diesel 1964 – 1970

Models This Part Fits:

35MT, 20MT, 30MT, 27MT, 15MT

Additional Information:

(4) Brushes Voltage: 24/32 Unit Type: Starters Length: 0.748" (19mm) Width: 0.748" (19mm) Height: 0.374" (9.5mm) Industry Number: R66S Notes: Flat Contact Surface Externally Rotatable Starters Replaces Part Numbers: 1906990, SDR7515 (4) Brush Holders Insulated & Tapped with 8-32 Threads Replaces: 1952135, SDR1303 (2) Brush Springs Length: 1.52" (38.63mm) Servicing 30MT Replaces: 1945620, 1979994, 1986019, D3984, D4952 (1) Bushing Location Used: CE Housing Inner Diameter: 0.565" (14.35mm) Outer Diameter: 0.689" (17.5mm) Width: 0.77" (19.56mm) Bushing Type: Oilit Replaces: 10470767, 1857960, 1864532, 1867610, 1872678, 1891927 (1) Bushing Location Used: Lever Housing Inner Diameter: 0.757" (19.23mm) Outer Diameter: 0.89" (22.61mm) Width: 0.75" (19.05mm) Bushing Type: Oilite Replaces: 1933999 (1) Bushing Location Used: CE & DE Housings Inner Diameter: 0.567" (14.41mm) Outer Diameter: 0.752" (19.1mm) Width: 0.76" (19.3mm) Bushing Type: Oilite Bushing Size: Standard Replaces: 1943628, 1955991, 1955994, D1674, D1684

Reference Numbers:

1906990, SDR7515
