Fits Case Garden Tractor Tie Rod End 1/2"x20RH C12102 / C44640
Fits Case Garden Tractor Tie Rod End 1/2"x20RH C12102 / C44640
Couldn't load pickup availability

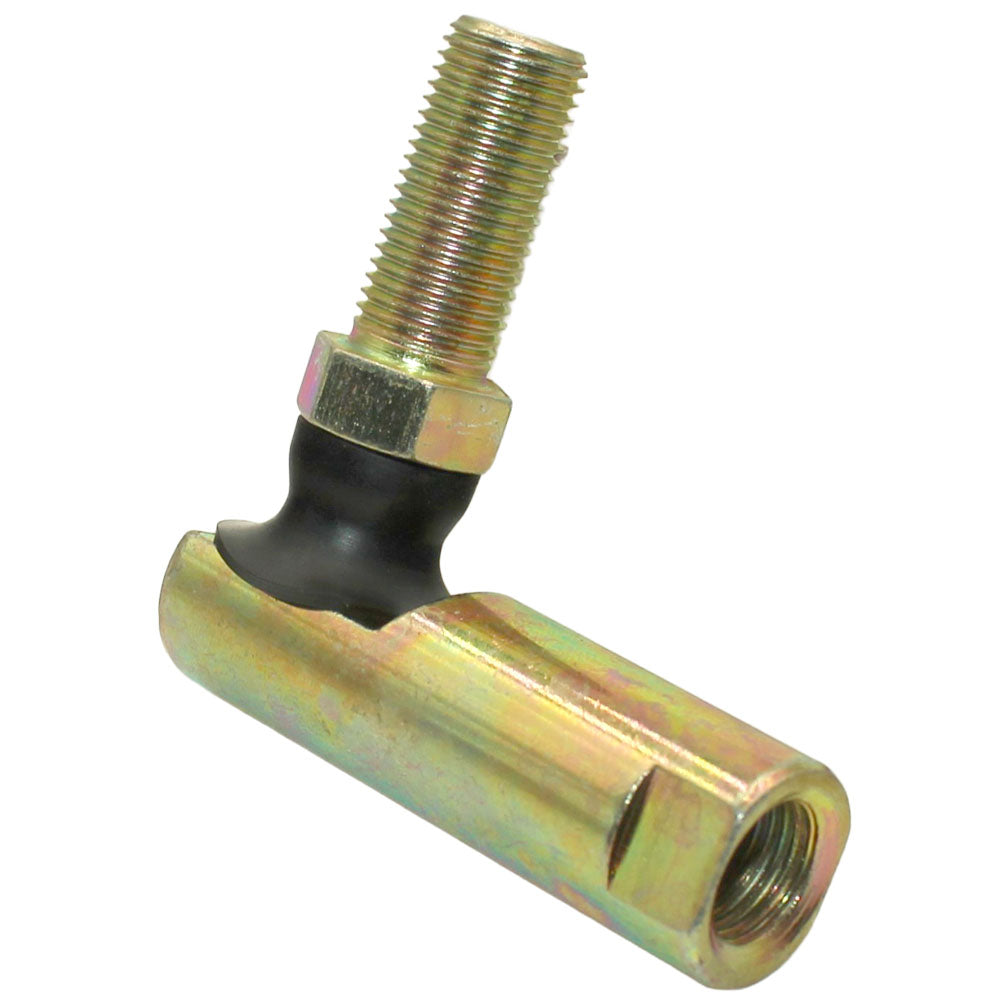

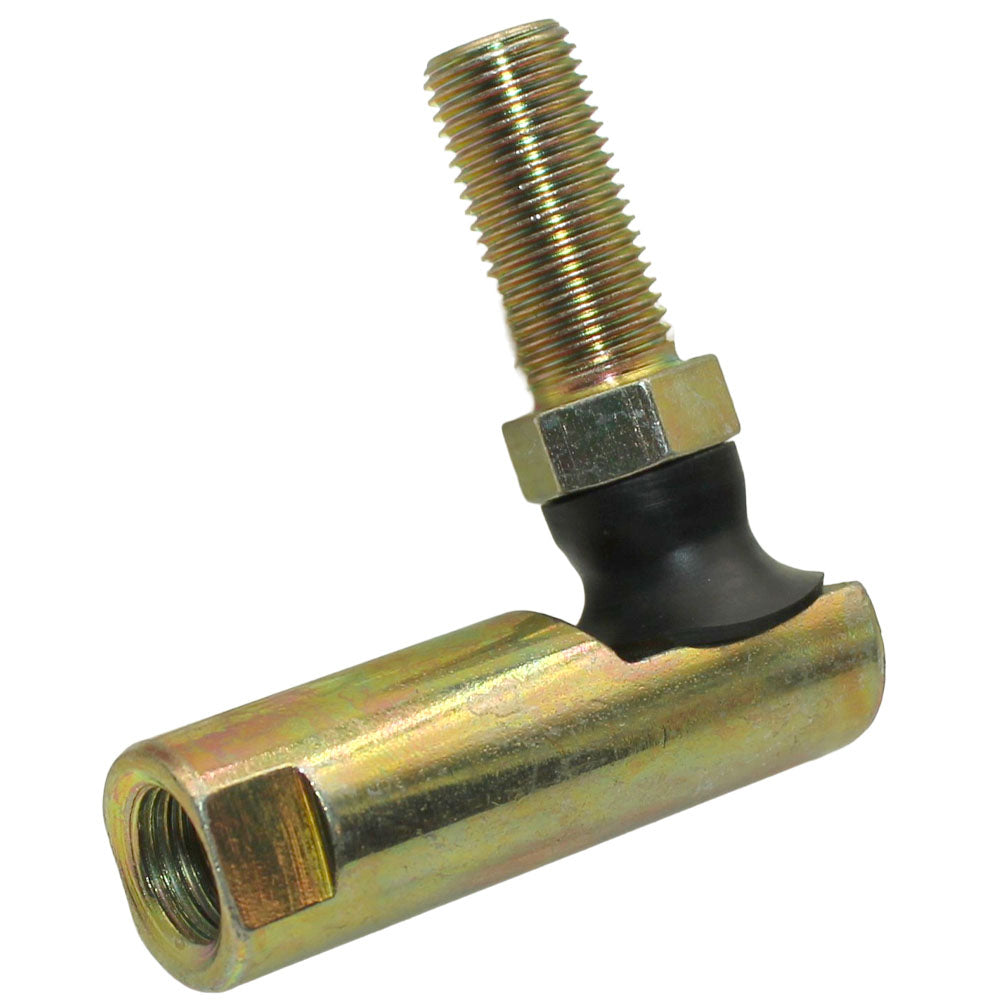

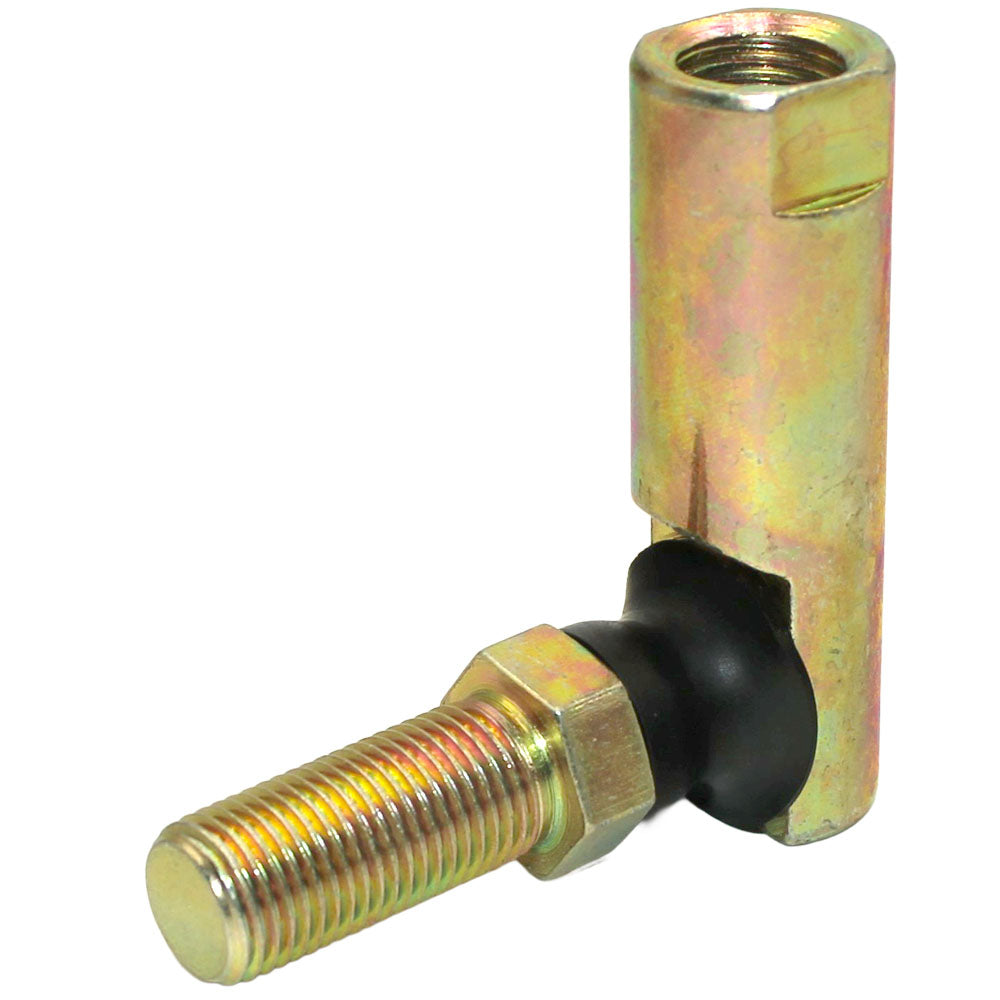

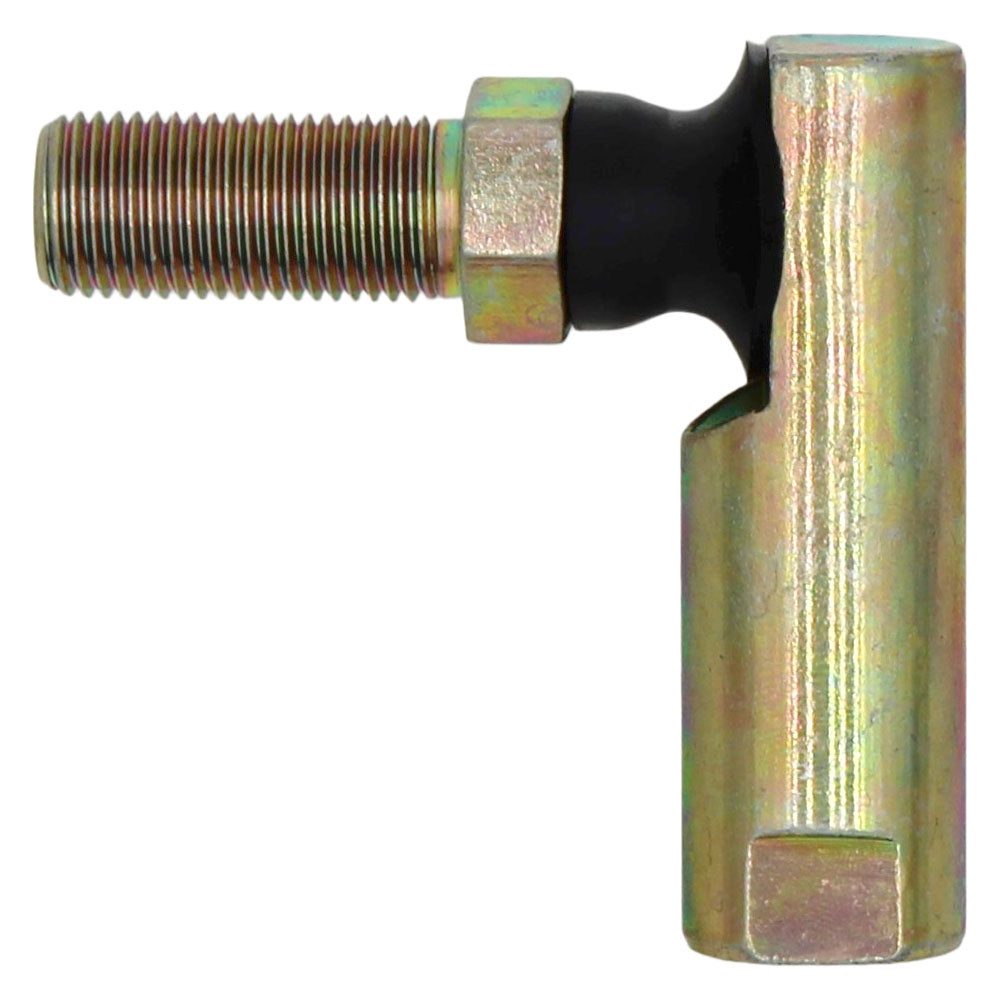

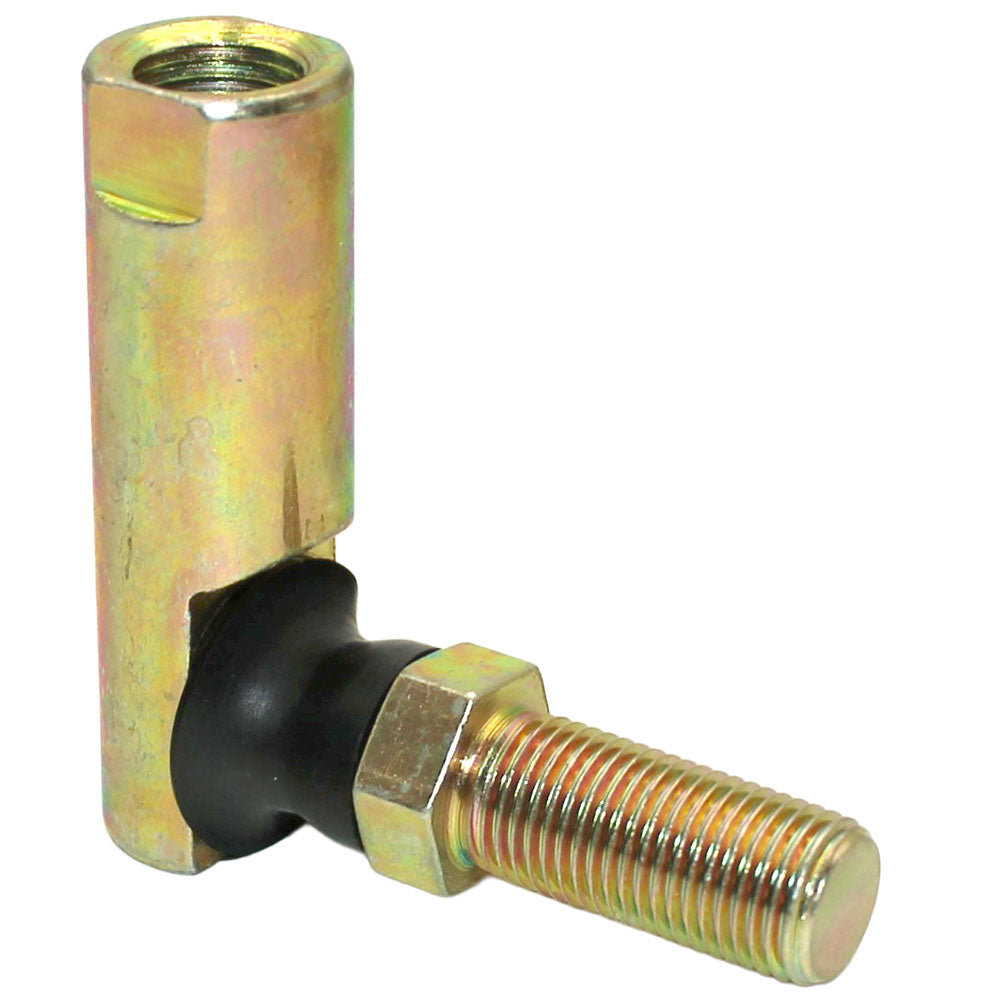

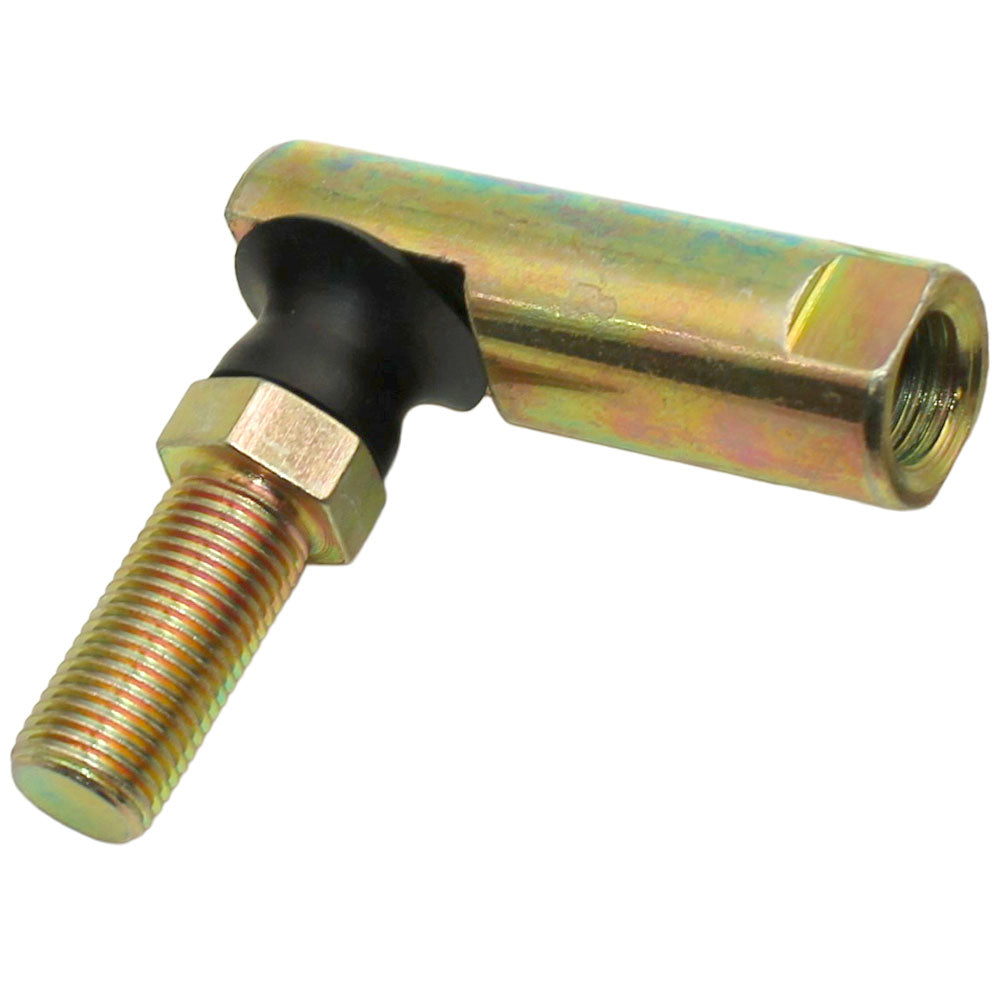

One New Aftermarket Replacement Right Hand Tie Rod End / Ball Joint for Case, John Deere, Cub Cadet, and MTD Garden Tractors
This right hand (RH) tie rod end and drag link ball joint is a steering front-end replacement part for Case/Ingersoll, John Deere, Cub Cadet, MTD, and Yard-Man lawn and garden tractors. Featuring 1/2"-20 RH male and female threads, it installs on the tie rod and drag link steering linkage. Note: fits Case/Ingersoll models below serial number 100000.
Specifications
- Thread: Right Hand (RH)
- Male Thread: 1/2"-20 RH
- Female Thread: 1/2"-20 RH
Compatible Models
Case / Case IH / Ingersoll: 110, 112, 120, 140, 155, 195, 200, 208, 210, 212, 214, 216, 300, 312, 314, 316, 317, 400 (models below serial number 100000)
John Deere: 60, 110, 110H, 112, 112H, 120, 140, 200, 208, 210, 212, 214, 216, 300, 312, 314, 316, 317, 318, 322, 400
Cub Cadet / IH Cub Lo-Boy: 982, 984, 986; IH Cub Lo-Boy 154, 184, 185
MTD / Yard-Man: GT1855, GT2055, 1850, 995, 918 (many MTD models 1985-1998)
Replaces Part Number(s):
C12102, C44640, GW-B1713361, GW-1713361, 1705259, 1707639, 1711604, 1713361, 7230179, 9230179, AM100644, AM30168, AM30169, AM32868, AM32869, M47234
Aftermarket Interchange Numbers
Stens 245-043; 529430R1, 529431R1, 511014M1, 511014M2, AG516491, B1BS2212, 723-0179, 723-3015, 923-0179, 923-3015, 31129, 45-114, 7-07494
New aftermarket replacement part - not remanufactured, not used.
