Final Drive Bearing and Seal Kit Fits John Deere 420 430

Name: Final Drive Bearing and Seal Kit Fits John Deere 420 430
SKU: JD420-430BRGSEALKIT
Price: 382.0 USD
Availability: InStock

Final Drive Bearing and Seal Kit Fits John Deere 420 430

$382.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

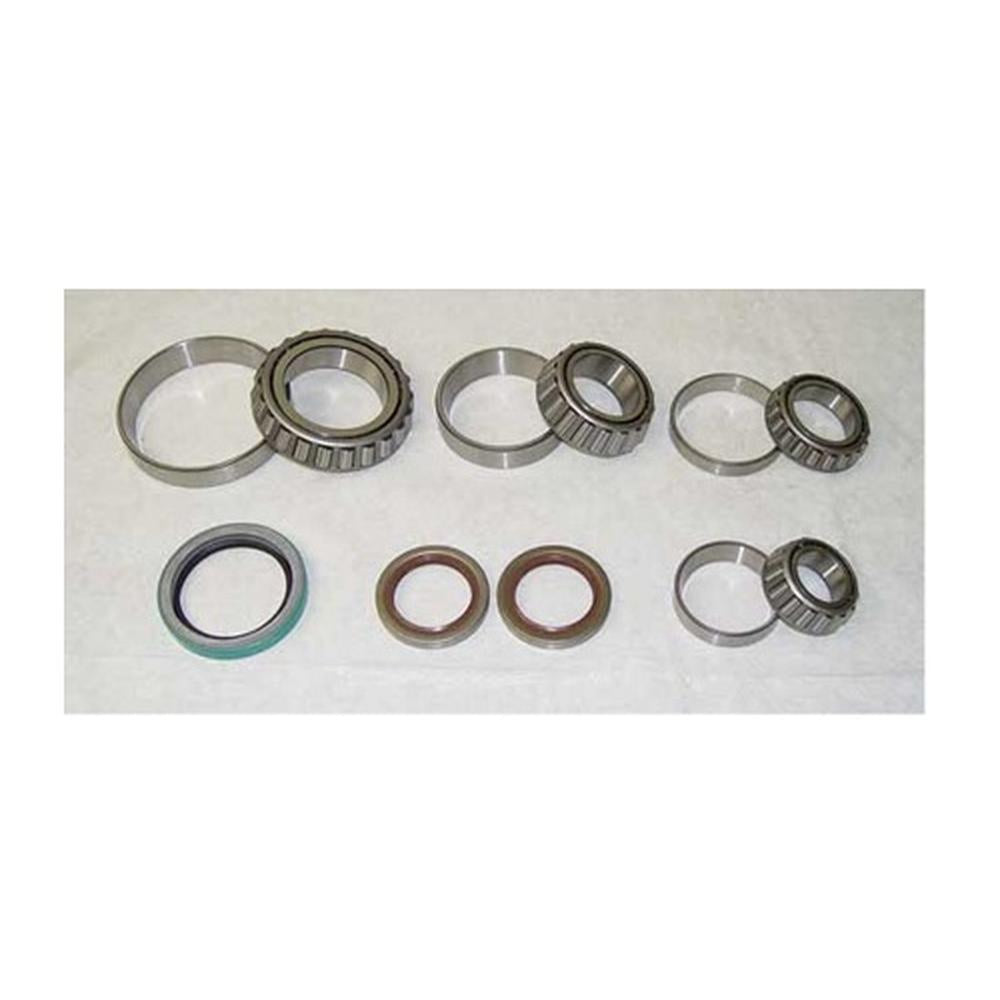

One New Aftermarket Replacement Final Drive Bearing, Seal, and Gasket Sealant Kit that Fits John Deere models: 420 and/or 430

This Kit Contains the Following:

15245 Bearing Cup x 1
15123 Bearing Cone x 1
18590 Bearing Cone x 1
18520 Bearing Cup x 1
17387 Seal x 1
25520 Bearing Cup x 1
25580 Bearing Cone x 1
390 Bearing x 1
394AS Bearing Cup x 1
7M7260 Gasket Sealant x 1

Models This Part Fits:

Final Drive Assembly

Additional Information:

Kit Contains: (1) Cone Bearing Bore: 1.250" Radius: .14" Width: .750" Replaces Part Number: JD8134 (1) Tapered Bearing Cup Height: 9/16" Length: 9/16" Width: 9/16" Bearing O.D.: 2.375" Replaces Part Number: JD7449 (1) Seal Width: 5/16" (8mm) Outer Diameter: 2-1/2" (63.65mm) Inner Diameter: 1-3/4" (44.45mm) Replaces Part Number: AT58390 (1) Bearing Cup Replaces Part Number: TR18520 (1) Taper Cone Replaces Part Number: JD8179 (1) Tapered Cup Outside Diameter: 3.265" Radius: .03" Width: .750" Replaces Part Number: JD7418 (1) Bearing Cone Bore: 1.750" Radius: .14" Width" 1" Replaces Part Number: JD7395 (1) Bearing Cone Replaces Part Number: JD7589, JD8146 (1) Cup Bearing Outside Diameter 4.330" Radius .13" Width .741" Replaces Part Number: JD7272 (1) Liquid Gasket Container Size: 4 oz Maximum Operating Temperature: 400 Degrees Fahrenheit Minimum Operating Temperature: 65 Degrees Fahrenheit Volatile Organic Compound (VOC) Rating: 19.42 VOC SDS Required: Yes
