Filter Service Kit Fits Minneapolis-Moline Replaces 156513A

Filter Service Kit Fits Minneapolis-Moline Replaces 156513A

$202.00 CAD
$202.00 CAD
Sale Sold out
Shipping calculated at checkout.

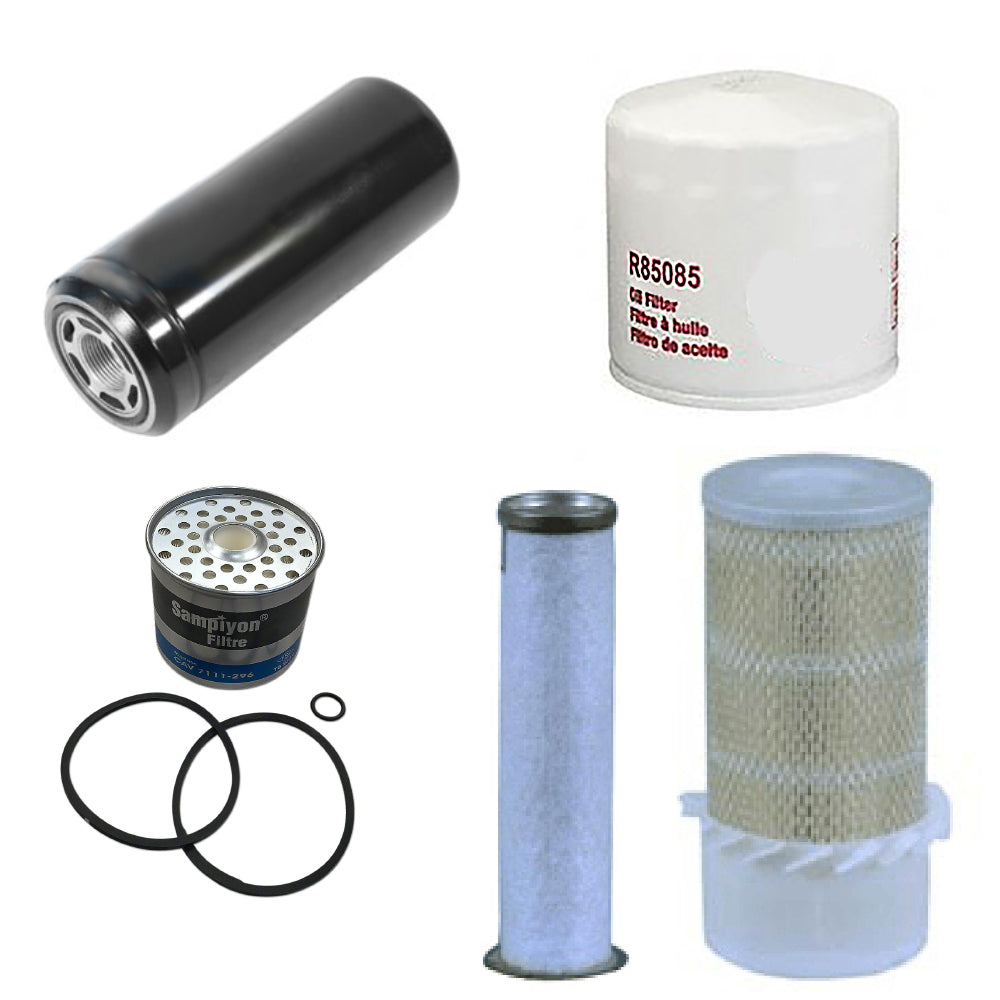

One New Aftermarket Filter Service Kit

Tech Info:
 -Kit Includes:
 -
 -(1)Primary Air Filter
 -Inside Diameter: 2.713" (68.9mm)
 -Length: 11.425" (290.2mm)
 -Outside Diameter: 5.24" (133.1mm)
 -Replaces Part Numbers: 1560611080, 18A42222, 42222, 721779, 811138
 -
 -(1) Air Filter
 -Replaces Part Numbers: AF1966
 -
 -(1) Fuel Filter
 -Inside Diameter: 3/4" (19.05 mm)
 -Outside Diameter: 3-7/16" (87.3 mm)
 -Length: 2-13/16" (71.4 mm)
 -Replaces Part Numbers: CAV7111/296, WIX 33166
 -
 -(1) Spin-on Oil Filter
 -Outside Diam.: 3-5/8 (92)
 -Length: 6-3/4 (172)
 -Thread: 3/4 x 16 UNF
 -Features: anti-drip valve, by-pass valve
 -Lube filter for diesel and gas applications
 -Replaces Part Numbers: LF3376J
 -
 -(1) Hydraulic Filter
 -3.810" Top O.D.
 -9.490" Height
 -1-3/8"-12 Thread Size
 -Style - Spin-On Hydraulic Filter
 -Service - Hydraulic
 -Type - Full Flow
 -Media - Microglass
 -Outer Diameter Bottom - Closed
 -By-Pass Valve Setting-PSI - None
 -Beta Ratio - 20/75=17/23
 -Burst Pressure-PSI - 1000
 -Max Flow Rate - 24-28 GPM
 -Nominal Micron Rating - 17
 -Replaces Part Numbers: AL118036, RE34958, 1346028C1, 32910601, 3515328M92

Fits Minneapolis-Moline:
 Tractor Models: G1355, G950, G955
 Model Breaks: G1355 (For Hydra-Power Unit),G950 (For Hydra-Power Unit),G955 (For Hydra-Power Unit)
 Replaces Part Number(s): 156513A

Models This Part Fits:

G955, G950, G1355

Additional Information:

(1) Primary Air Filter Inside Diameter: 2.713" (68.9mm) Length: 11.425" (290.2mm) Outside Diameter: 5.24" (133.1mm) Replaces Part Numbers: 1560611080, 18A42222, 42222, 721779, 811138 (1) Air Filter Replaces Part Numbers: AF1966 (1) Fuel Filter Inside Diameter: 3/4" (19.05 mm) Outside Diameter: 3-7/16" (87.3 mm) Length: 2-13/16" (71.4 mm) Replaces Part Numbers: CAV7111/296, WIX 33166 (1) Spin-on Oil Filter Outside Diameter: 3-5/8" (92mm) Length: 6-3/4" (172mm) Thread: 3/4 x 16 UNF Features: anti-drip valve, by-pass valve Lube filter for diesel and gas applications Replaces Part Numbers: LF3376J (1) Hydraulic Filter 3.810" Top Outer Diameter 9.490" Height 1-3/8"-12 Thread Size Style - Spin-On Hydraulic Filter Service - Hydraulic Type - Full Flow Media - Microglass Outer Diameter Bottom - Closed By-Pass Valve Setting-PSI - None Beta Ratio - 20/75=17/23 Burst Pressure-PSI - 1000 Max Flow Rate - 24-28 GPM Nominal Micron Rating - 17 Replaces Part Numbers: AL118036, RE34958, 1346028C1, 32910601, 3515328M92

Reference Numbers:

156513A
