FD209RK-IMP Bearing for Universal Products
FD209RK-IMP Bearing for Universal Products
Couldn't load pickup availability

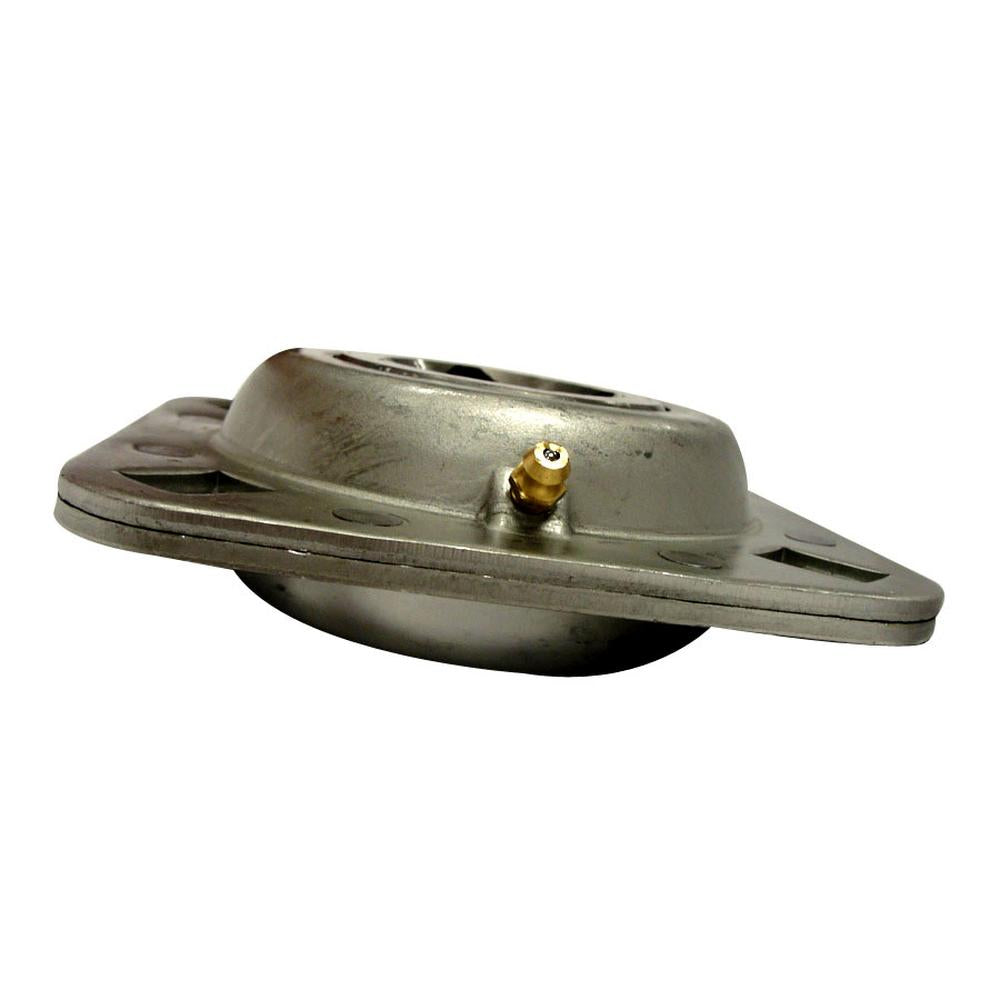

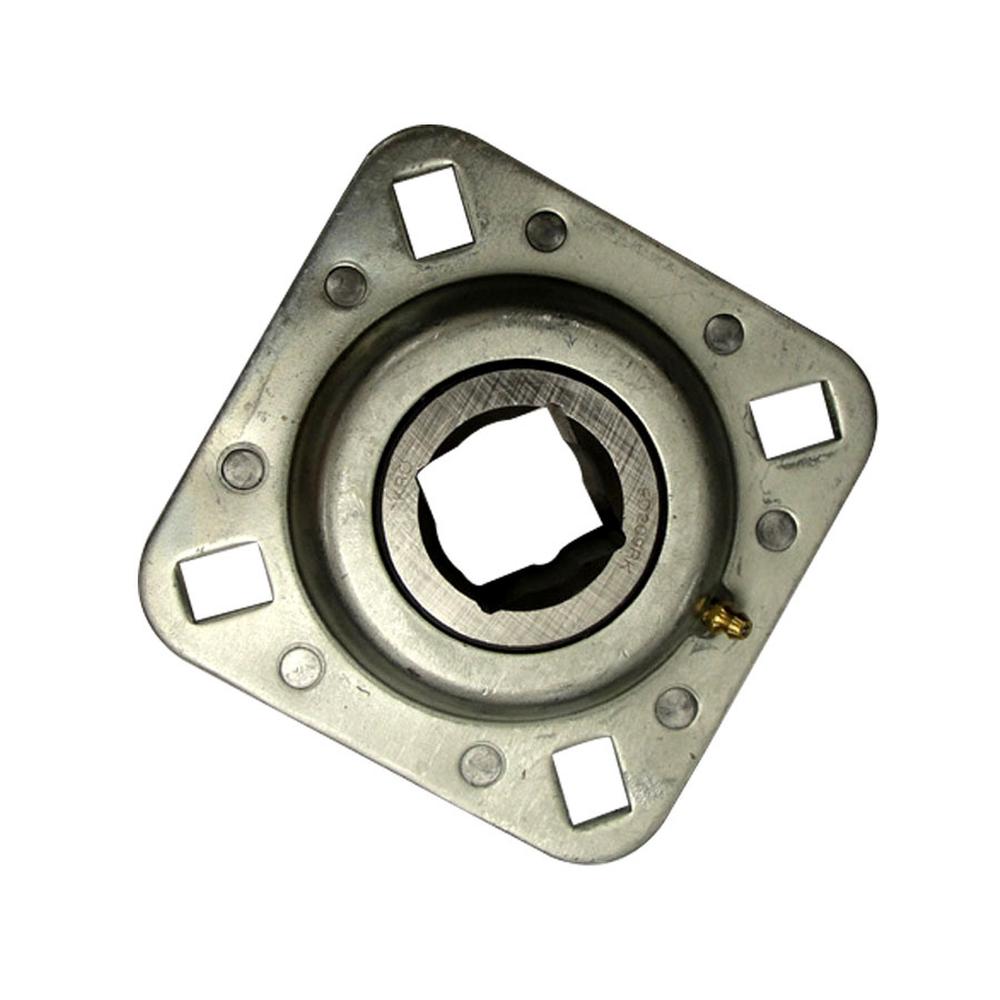

One New Aftermarket Replacement Disc Harrow Flange Bearing for Universal Fit Agricultural Tillage Equipment
This riveted flange disc harrow bearing features a 1-1/4" square bore and a 4-bolt mounting pattern, designed for use on disc harrows, chisel plows, rippers, vertical tillage units, and soil finishers. The flanged housing provides a rugged, bolt-in-place design that withstands the demands of severe tillage applications while helping to seal out contaminants.
Specifications
- Type: Riveted Flange Disc Harrow Bearing Unit
- Bore: 1-1/4" (1.25 in) Square
- Bore Diameter: 1.291 in | 32.79 mm
- Bolt Circle (Bolt to Bolt): 5 in | 127.00 mm
- Width: 1.687 in
- Mounting: 4-Bolt Riveted Flange
Compatible Equipment
Case IH: Ripper 870, 875; Vertical Tillage 330, 335VT
Krause: Chisel Plow 4320A, 4330A, 4336A; Packer 4400; Ripper 4850; Soil Finisher 3110A, 3112A, 3115A, 3118A, 3121A, 3124A, 3127A, 3131A, 3136A; Vertical Tillage 8000
Great Plains: Disc and tillage equipment using 822-209C
Also fits Quinstar (Fallowmaster) and other agricultural tillage implements using the FD209RK bearing standard.
Replaces Part Number(s):
FD209RK-IMP, FD209RK, FD-209-RK, FD209114SQ, DHU114S209, DHU1-1/4S209, ST209-1-1/4, SMA209K, 311007, 822-209C, 84151226, 40-128
Aftermarket Interchange Numbers
BCA/Federal Mogul: FD-209-RK | Fafnir/Torrington: DHU114S209, DHU1-1/4S209 | Great Plains: 822-209C | Case IH (CNH): 84151226 | Krause: 40-128 | Quinstar: 311007
New aftermarket replacement part - not remanufactured, not used.
