Expansion Valve 3321511M91 Fits Massey Ferguson 2675 2705 2745 2775 2805

Expansion Valve 3321511M91 Fits Massey Ferguson 2675 2705 2745 2775 2805

$57.00 CAD
$57.00 CAD
Sale Sold out
Shipping calculated at checkout.

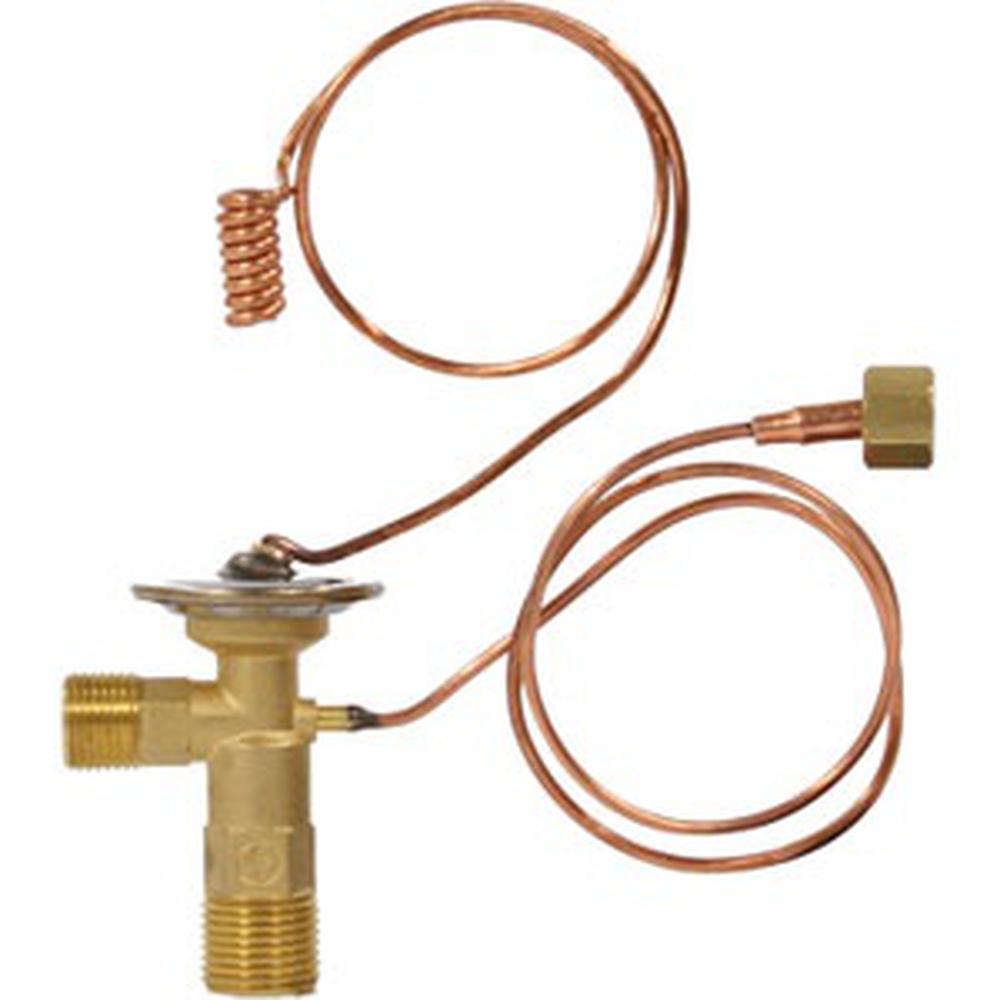

One New Aftermarket Replacement Externally Equalized Expansion Valve for Massey Ferguson Tractors

This aftermarket replacement peanut-style, externally equalized expansion valve (TXV) regulates refrigerant flow in the cab air conditioning system of Massey Ferguson (MF) tractors and is a direct replacement for OEM part number 3321511M91. The externally equalized design senses equalizing pressure at the evaporator outlet for stable refrigerant flow regardless of system pressure changes, maintaining efficient cab cooling. This valve uses O-ring connections at both the inlet and outlet for leak-free installation.

Specifications

  • Valve Type: Peanut
  • Inlet Size: #6
  • Inlet Type: O-ring
  • Outlet Size: #8
  • Outlet Type: O-ring
  • Tonnage: 2.0T
  • Superheat: 8
  • Capillary Length: 14-1/2"
  • Equalizer Length: 18"
  • Equalizer Fitting: 7/16-20 UNF

Compatible Models

Massey Ferguson Tractors: 2675, 2705, 2745, 2775, 2805

Replaces Part Number(s):

3321511M91, 1634663M1, 3038918M91, 3380223M1, 3551655M91, 773361M91, AH140818, AG726761, AL37525, AR58482, RE13886, RE206757, RE577432, 1280333C1, 1280333C2, 128033C1, 128033C2, 118305C3, 274571, 47597455, 47597457, 80449624, E3NN19849AA, V48724, V70267, BN69872, 86000562, 904-213, 904-304, 904-243, 904-288, 904-296, 909205, 909220, 909230, 9966200, 60012-5002, 70259379, 70259978, 70261764, 70268470, 261764, 700711760, 700712704, F205550050180, 176.713.0, 70741091, 82002793, 9966613, 9971586, AH204686, 2G0401, 2G-0401, 3E-9343, 128033C1, 128033C2

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

208, 2950, 6500, 7000, 256V, 7080, 915, 110-90DT, 9970, 6100, 7720, TR85, 7045, 2250, 130-90DT, 4030, 885, 5720, TL80, 90-90, T4050, 1166, TL70, 655A, 815, 2100, 3525, 60-94, 2705, 9920, 2650, 150, 4430, 1158, 8450, 1900, 986, 205, 670, 260, 2420, 2450, 2640, 1177, 4450, 2350, 2675, 8820, SPX3185, 7030, 72-94, T5070, 8840, 4255, 4840, 886, 3155, 675, 8040, 9030V, 276II, 220, 5730, 4560, 4700, 60-90DT, 7455, 55-90, 5820, 755A, 2855, 4455, 3040, 715, 2745, 8550, 444E, 9030, 4230, 4350, 2-105, 1055, 1896, Dominator 76, 4630, 655, 3140, 200, 895, T5050, 6070, 1188, 616, 1085, 2855N, 4850, 3388, 85-90DT, 80-90DT, 2-180, 7440, 2-115, 4000, 9930, 4650, 201, 1155, 256, 4186, 695, 130-90, 206, 3505, 4755, 8060, 4055, 1188HY/4, 1075HY/4, 100-90, 2940, 6620, 8430, 4640, 1157, 1174, F100, 70-90DT, 82-94, 2040, 250, 800, 3350, 7580, 65-94, 698, 4760, TR75, TL80A, 4435, 622, 8080, 3545, 1169HY/4, 7020, 3210, 892DLC, TL90, 585, 1068H, TR88, F115, 4050, 4750, 344E, 3650, L, 140-90DT, 1440, 6000 Hi-Cycle, 890A, 8850, 2-155, SPX4260, Challenger 65, F130, 160-90DT, 1420, 685, 2955, F120, 110-90, 80-90, 8650, 95, 3788, TL100, 60-90, 644C, 5830, 8050, 2-150, 1466, 3255, 3055, 9935, Hydro 186, 1085HY/4, 1400, 82-94DT, 88-94, 65-94DT, 115-90DT, 1586, 60-94DT, 240, 209, 3588, 1072, 4555, 65-90, SPX2130, 595, 9950, 8825, 8630, 2805, 6060, 4040S, 782, G, 9976, 210, 2320, 2-110, 544 ROGATOR, 7445, E3, TR95, E, 555, 3030, 160-90, Dominator 86, 4166, 3830, Dominator 96, SPX3200, 9965, 6600, 1086, 5500, 7010, 4240, 6700, 786, 690, 3640, SPX3200B, K, 3050, 2140, 72-94DT, 2550, 3185, 8825HP, 755B, 9910, 8640, 9940, 1065, F, 100-90DT, 6080, 1640, TR96, 4425, 2750, 8070, T5040, 160, 2555, 276V, 2850, 8440, 7050, 7722, 2040S, 555B, 70-90, M, SPX3150, 3150, 555A, 484, 3640S, 207, 180-90DT, 8030, 4955, 2355, 203, GH, 4440, 7450, 2115, 690B, 9960, 2-135, 9030E, 4250, 4960, 1075, 1470, 3430, 3130, 7060, 1594, 7040, 5000, 8830, 268, 6622, 270, 115-90, 276, 4240S, 554 ROGATOR, 2775, 90-90DT, 1166HY/4, 4040, 1486, F140, TL90A, 1690, 1174HY/4, 180-90, 280 Farmer, 1169, 2840, 655B, 1460, 1915, 275, 699, TL100A, 1480, 2755, 88-94DT, 140-90, 85-90, Challenger 75, 65-90DT

Additional Information:

Valve Type: Peanut Inlet Size: #6 Inlet Type: O-ring Outlet Size: #8 Outlet Type: O-Ring Tonnage: 2.0T Superheat: 8 Capillary Length: 14-1/2" Equalizer Length: 18" Equalizer Fitting: 7/16-20 UNF

Reference Numbers:

60012-5002, AG726761, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 274571, 47597455, 47597457, 80449624, E3NN19849AA, AG726761, 904-213, 904-304, 904-243, 904-288, 904-296, 909205, 909220, 909230, AH140818, AG726761, AL37525, AR58482, RE13886, RE206757, RE577432, F205550050180, 80449624, E3NN19849AA, V70267, 274571, 47597455, 47597457, BN69872, 118305C3, 1280333C1, 1280333C2, 274571, 47597455, 47597457, 128033C1, 128033C2, 176.713.0, 86000562, V48724, V70267, 70741091, 82002793, 9966613, 9971586, AH204686, 2G0401, 2G-0401, 3E-9343, 118305C3, 1280333C2, 274571, 47597455, 47597457, 274571, 9966200, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 70268470, 70261764, 70259978, 70259379, 700712704, 700711760, 261764
