2405T1274 Dipper Arm Bushing fits Kobelco SK200
2405T1274 Dipper Arm Bushing fits Kobelco SK200
Regular price
$368.00 CAD
Regular price
Sale price
$368.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

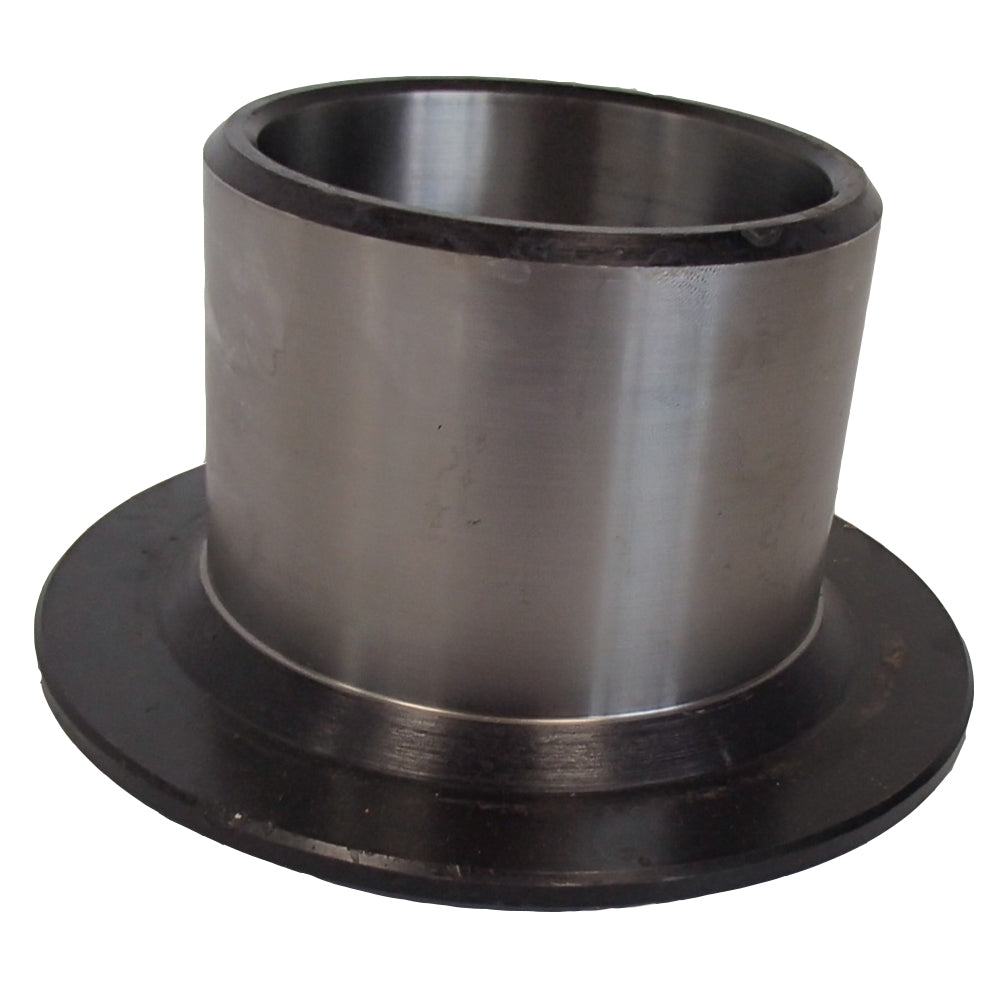

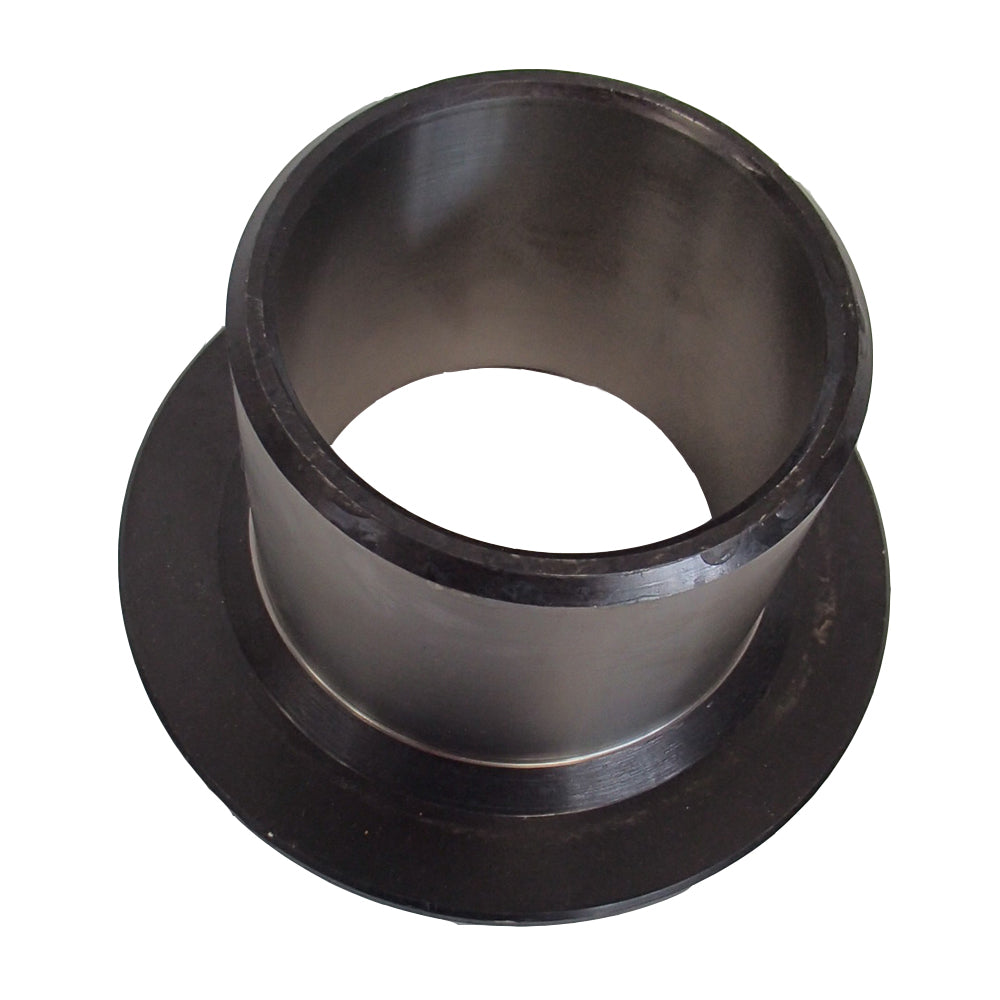

One New Aftermarket Replacement Dipper Arm Bushing for Kobelco SK200 Crawler Excavator
This dipper arm bushing installs at the end of the dipper stick (dipper arm) where it connects to the bucket linkage on Kobelco SK200 and SK210 crawler excavators. It is part of the pin and bushing assembly, which is a primary wear point at the bucket pivot. Regular inspection and replacement of this bushing helps maintain precise bucket control and reduces wear on mating pins during heavy digging operations.
Specifications
- Inner Diameter: 80 mm
- Outer Diameter: 95 mm
- Height: 82.50 mm
- Flanged collar design
- Weight: approx. 4.31 lbs
Compatible Models
Kobelco Crawler Excavators: SK200, SK200 Series III, SK200 Series IV, SK200 Series V, SK200LC, SK210, MD200BLC, MD200C, K907, K907LC
Replaces Part Number(s):
2405T1274, EXB10-0014
New aftermarket replacement part - not remanufactured, not used.
