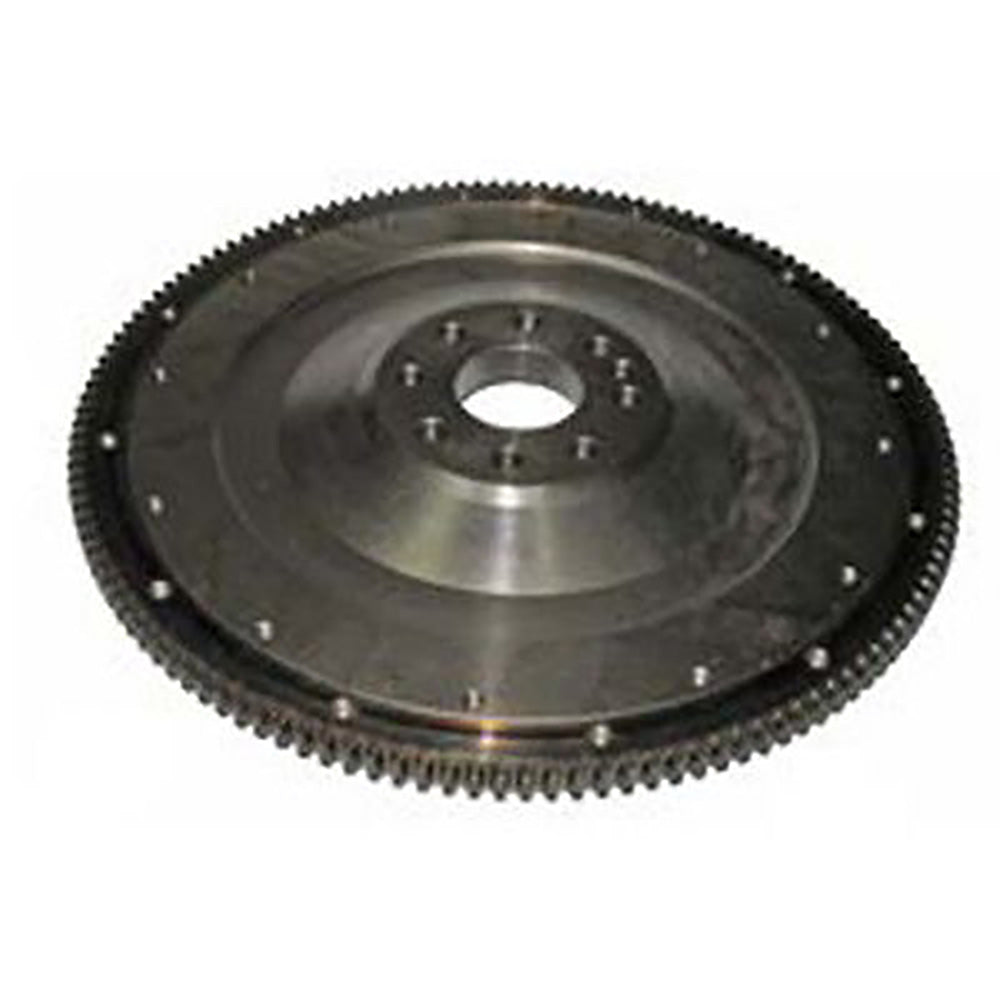

One New Aftermarket Replacement Flywheel Assembly Fits Caterpillar 3116, 3126, and C7 Engines
This aftermarket replacement flywheel assembly is designed Fits Caterpillar (Fits CAT) 3100-series and C7 diesel engines used in on-highway trucks, material loaders, and industrial applications. The flat-style SAE #2 flywheel mounts via 8 bolts and one dowel pin, and is compatible with 13-inch or 14-inch Spicer plate clutches. The ring gear (134 teeth, 17-inch O.D.) is available in early and late configurations. Replaces OEM Fits Caterpillar part number 1265875.
Specifications
- Style: Flat, SAE #2
- Outer Diameter: 17 inches
- Overall Height: 1.5 inches
- Bore Size: 7.12 inches
- Clutch Size: 13 inch or 14 inch Spicer plate clutch
- Mounting: 8 bolt holes and 1 dowel pin hole
- Ring Gear Teeth: 134
- Ring Gear Part Number: 7W5095 (early) or 1631387 (late)
- Pilot Bearing: 206 / 305
Compatible Models
Fits Caterpillar 3100 / C7 Series Engines: 3114, 3116, 3126, 3126B, 3126E, C7
Applications: On-highway truck engines, material loaders, petroleum/industrial C7 engines
Replaces Part Number(s):
1265875, 1265875-A, ENP70-0017, V3018, V3018-A, 1619068, 15028478, 15979722, 1991255, 7E6700, 6I-3667, 101-3246
Aftermarket Interchange Numbers
50-2762, FWHTR16, AK15979722, AK15028478, FMP-1265875, AF1265875
New aftermarket replacement part - not remanufactured, not used.
