PISTON A 1290358 Fits Caterpillar NEW
PISTON A 1290358 Fits Caterpillar NEW
Couldn't load pickup availability

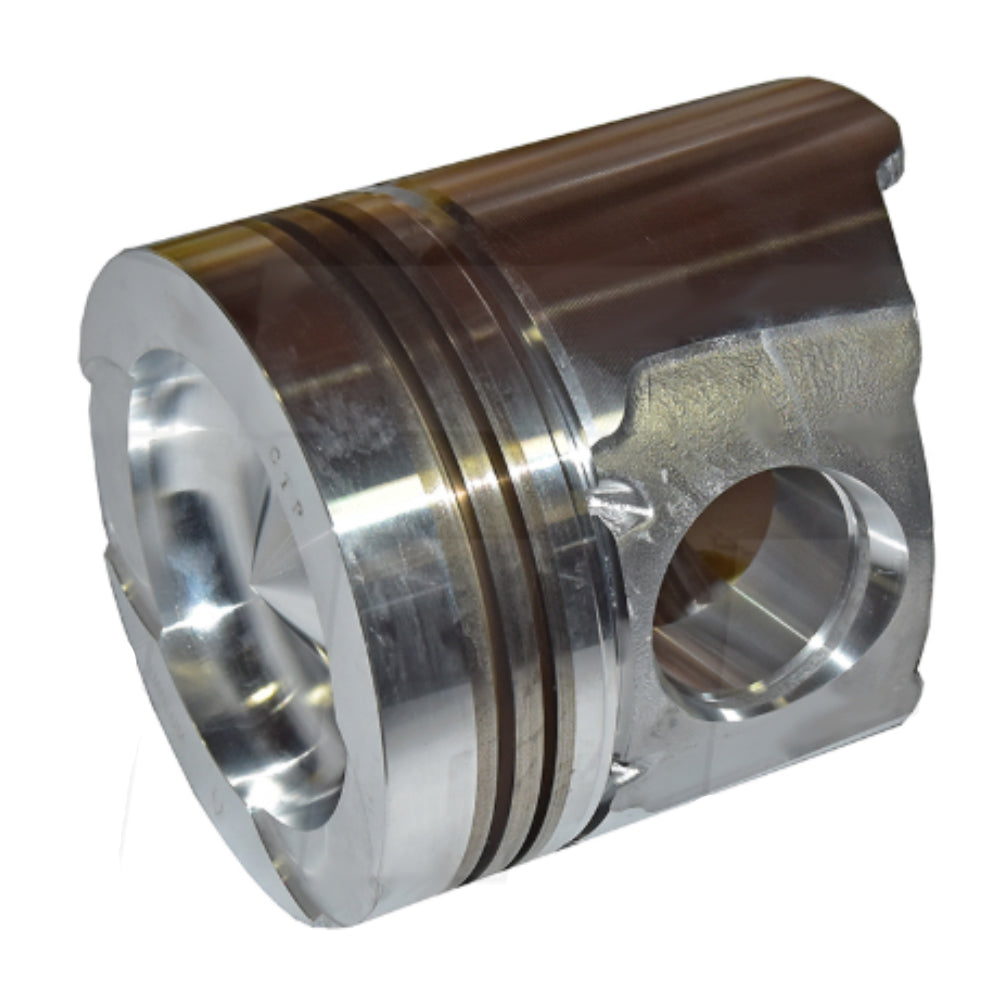

One New Aftermarket Replacement Piston Fits Caterpillar (Fits CAT) 3300 Series Engines
This aftermarket replacement piston (body) Fits Caterpillar 3304 and 3306 engines used in a wide range of Fits CAT construction and industrial equipment. The piston is a direct-fit internal engine component designed for direct injection applications with a tapered connecting rod. OEM part number 1290358 supersedes the earlier 1W6757.
Specifications
- Engine: Fits Caterpillar 3300 Series (3304, 3306)
- Injection Type: Direct Injection
- Compression Ring Style: Rectangular
- Oil Ring: 3mm / 0.125 in.
- Rod Type: Tapered
- Compression Ratio: 15.1:1 (per some sources; verify arrangement before ordering)
- Dimensions: Approx. 5.91 x 5.91 x 5.12 in.
- Weight: Approx. 5.6 lbs.
Serial Number / Arrangement Restrictions
Important: Fitment for the 3304 engine is restricted by serial number and arrangement number. Confirmed serial number ranges include 12Z2786-UP, 12Z676-UP, 13E300-UP, 3TC1-UP, 4YD2200-UP, and 7Z1300-UP, each with specific arrangement numbers. Verify your engine serial number and arrangement before ordering.
Compatible Models
Fits Caterpillar Engine: 3304, 3306 (3300 Series)
Fits Caterpillar Equipment (confirmed via multiple sources): 120G Motor Grader, 130G Motor Grader, D6D Track-Type Tractor, D6H Track-Type Tractor, 936F Wheel Loader
Replaces Part Number(s):
1290358, 1W6757
Aftermarket Interchange Numbers
129-0358, CA1290358, 1W-6757, 1W6759, 2243297, 2243297X, 2261889, G925H, LK0358, LK1290358, LK6757, 1290358K
New aftermarket replacement part - not remanufactured, not used.
