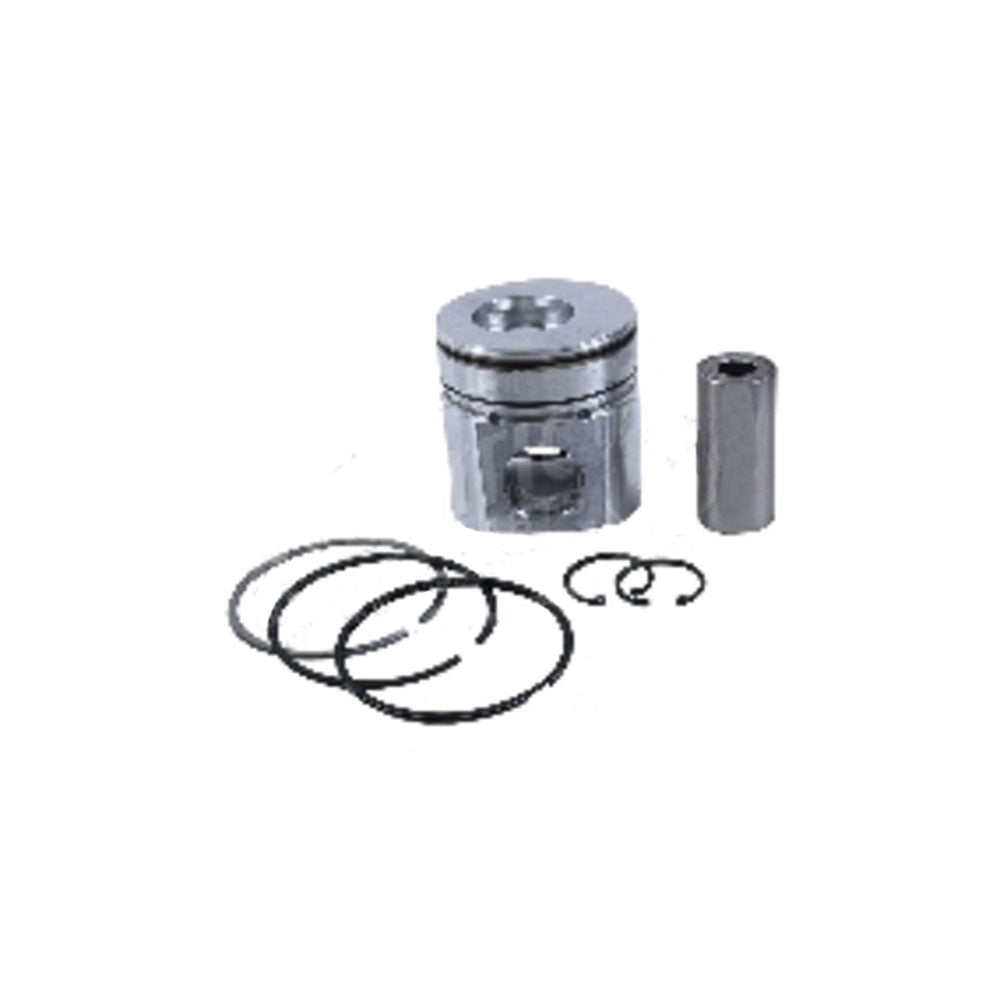

J802747 Piston Kit (Std) Fits Case/International Harvester 4T-390 570LXT 570LXT
J802747 Piston Kit (Std) Fits Case/International Harvester 4T-390 570LXT 570LXT
Couldn't load pickup availability
One New Aftermarket Replacement Standard Piston Kit Fits Case / Fits Case IH and Fits International Harvester Equipment
This standard bore (STD) piston kit is a direct replacement for the Cummins 4B/4BT/6B/6BT series diesel engine found across a wide range of Fits Case, Fits Case IH, and Fits International Harvester construction, agricultural, and industrial equipment. The kit restores combustion sealing and compression in worn engines, addressing loss of power, hard starting, and excessive oil consumption. Each kit includes pistons, piston rings, wrist pins, and retaining clips (pin retainers) for a complete rebuild-ready assembly.
Specifications
- Size: Standard (STD) - not for bored-over blocks
- Bore: 102mm (standard)
- Engine Compatibility: Cummins 4B3.9, 4BT3.9, 6B5.9, 6BT5.9 diesel engines
- Kit Contents: Pistons, ring sets, wrist pins, and pin retainers/clips
Compatible Models
Fits Case / Fits Case IH Construction and Industrial: 570LXT, 570LXT Series 2, 580L, 650G, 686G, 686G XR, 9010B, 9020B
Fits Case / Fits Case IH Skid Steer Loaders: 90XT, 95XT
Fits Case IH Hay and Forage: 4T-390, 8860, 8860HP, 8870
Note on Serial Number Restrictions: Some sources indicate the 9010B and 9020B applications may be limited to units with serial number DAC01#2001 and earlier. Verify your serial number before ordering.
Replaces Part Number(s):
J802747, 3802747-PISTONS, 3802747, A-3802747
Aftermarket Interchange Numbers
3928673 (piston), 3802230 (ring set), 3934047 (wrist pin), 3901706 (retainer), 6735-31-2140, 6735312140, J919053, J934047
New aftermarket replacement part - not remanufactured, not used.
