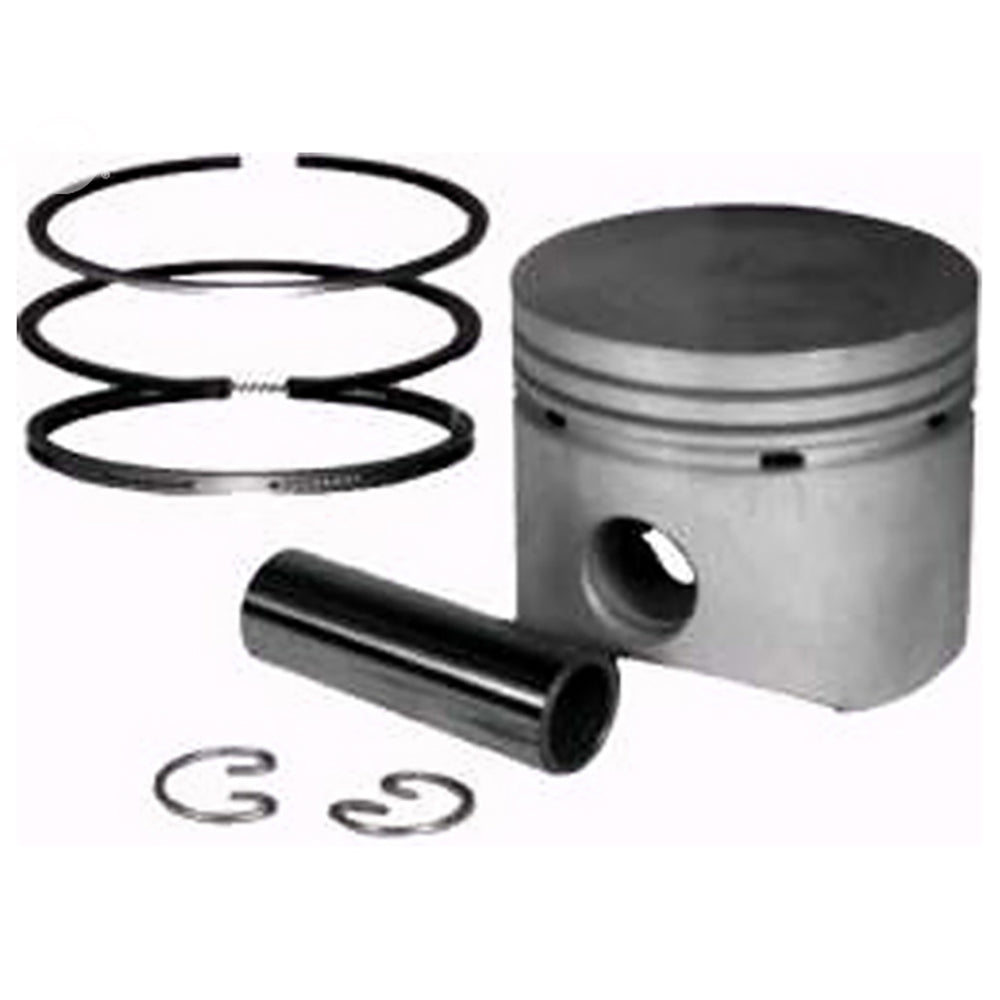

12HP Piston and Ring Set Fits Kohler K301 Engines 3.375" Standard Size
12HP Piston and Ring Set Fits Kohler K301 Engines 3.375" Standard Size
Couldn't load pickup availability
One New Aftermarket Replacement 12HP Piston and Ring Set for Kohler K301 / M12 Engines
This aftermarket replacement piston and ring set is designed for the Kohler K301 and M12 (Magnum) 12HP cast iron single-cylinder engines. The kit fits the internal cylinder bore assembly and is an essential component for engine rebuilds and overhaul jobs on these popular K-Series engines. Includes piston, rings (Rotary #2472), wrist pin, and wrist pin retainer clips. Standard (STD) bore size only -- measure your cylinder bore before ordering to confirm you do not need an oversize piston.
Specifications
- Piston Size: Standard (STD)
- Cylinder Bore Size: 3.375"
- Engine Output: 12 HP
- Includes: Piston, Rotary #2472 Ring Set, Wrist Pin, Wrist Pin Retainer Clips
- Ethanol compatibility: Not compatible with greater than 10% ethanol fuel
Serial Number Restriction
Important: This piston fits Kohler K301 and Gravely K301 engines before Serial No. 1730100013 and M12 (old style) engines only. Verify your engine serial number before ordering.
Compatible Models
Kohler K-Series and Magnum: K301, K301A, K301S, K301AS, K301Q, K301QS (before Serial No. 1730100013); M12 (old style)
Gravely: K301 (before Serial No. 1730100013); M12 (old style)
Replaces Part Number(s):
47-874-06-S, 47 874 06, 47 074 16, 47 074 16-S, 4787406, 4787406S, 4707416, 4707416S, 040995
Aftermarket Interchange Numbers
Fits Stens 515-239, Rotary 6749, Prime Line 7-03815, Sunbelt B1SB6749, Foley/PLP 163-360, ESF 163-360, Foley/Belsaw 5979373, Green Meadow P360, Laser 94231, NHC 266-8758, Fits Napa 7-03815, MFG Supply 23-6749
New aftermarket replacement part - not remanufactured, not used.
