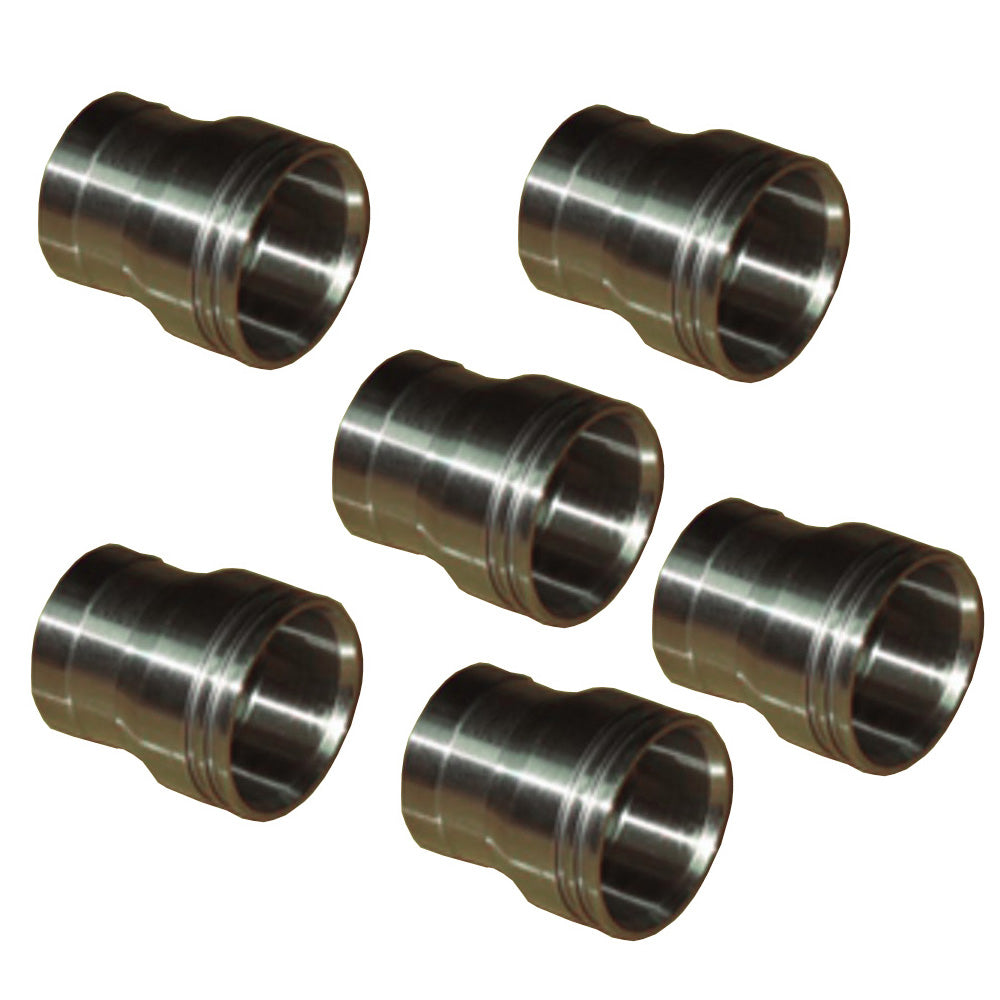

Set of 6 New Aftermarket Replacement Injector Sleeves Fits Caterpillar (Fits CAT) Engines
This set of six aftermarket replacement injector sleeves (also called injector cups) Fits Caterpillar engines equipped with HEUI-style fuel injectors. Each sleeve installs into the engine cylinder head to provide a secure, leak-proof passage for the fuel injector into the combustion chamber. Set includes six sleeves with O-rings.
Specifications
- Quantity: Set of 6 injector sleeves with O-rings
- Outer Diameter: 35mm
- Compatible injector style: HEUI (Hydraulic Electronic Unit Injector)
- O-ring part number: 8C-0563 / 8C0563
Compatible Models
Fits Caterpillar Engines: 3126, 3126B, 3126E, C7, C15
Fits Caterpillar Excavators: 322C, 322C FM, 325C, 325C FM, 325CL, M325C, M325C MH
Fits Caterpillar Track-Type Loaders: 953C, 963C
Fits Caterpillar Wheel Loaders: 924G, 938G II, 950G II, 962G II
Fits Caterpillar Integrated Toolcarriers: IT38G II, IT62G II
Fits Caterpillar Motor Graders: 120H, 135H
Fits Caterpillar Track-Type Tractors: D5N, D6N
Fits Caterpillar Pipelayers: 561N
Fits Caterpillar Combines: 460, 465, 470
Replaces Part Number(s):
2272911, 227-2911
Aftermarket Interchange Numbers
CA2272911, CA227-2911, 1590300, 159-0300, 1578373, 157-8373, 1240811, 124-0811, 240-1003, PAI 392090
New aftermarket replacement part - not remanufactured, not used.
