2418385 Outer Valve Spring Fits Caterpillar Industrial Construction Model
2418385 Outer Valve Spring Fits Caterpillar Industrial Construction Model
Couldn't load pickup availability

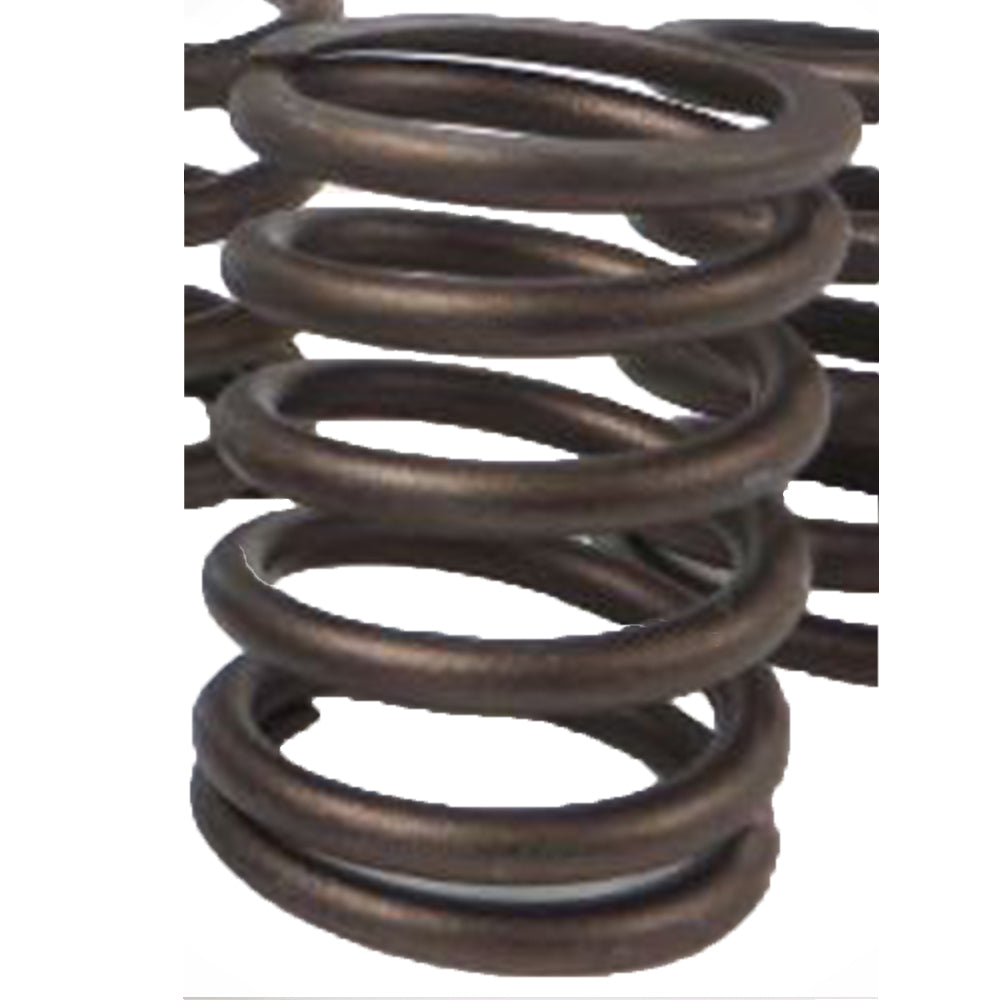

One New Aftermarket Replacement Outer Valve Spring Fits Caterpillar (Fits CAT) C9 / C9.3 Engines
This outer valve spring is a cylinder head valvetrain component Fits Caterpillar C-9 and C9.3 diesel engines. It works in tandem with the inner valve spring to maintain proper valve seating pressure and ensure reliable valve operation across intake and exhaust cycles.
Specifications
- Free Length: 67.69 mm (2.665 in)
- Inner Diameter: 28.56 mm (1.124 in)
- Test Length 1: 44.00 mm (1.732 in) at 300.0 N (67.44 lb)
- Test Length 2: 32.00 mm (1.260 in) at 441.0 N (99.14 lb)
- Wire Diameter: 2.36 mm (0.093 in)
- Type: Outer (pairs with inner spring 241-8386)
Compatible Models
Fits Caterpillar Engine Models: C9 (S/N: 4ZF1-UP), C9.3
Fits Caterpillar Motor Graders: 140M, 140M 2, 160M, 160M 2
Fits Caterpillar Excavators: 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L
Fits Caterpillar Articulated Trucks: 2290, 2390, 2391, 2491, 2590
Fits Caterpillar Forest / Pipelayer Equipment: 511, 521, 521B, 522, 522B, 532, 541, 541 2
Replaces Part Number(s):
2418385, ENL80-0208
Aftermarket Interchange Numbers
241-8385, CA2418385, M 2418385
New aftermarket replacement part - not remanufactured, not used.
