ENGINE REBUILD KIT FOR LONG TRACTOR 4 CYL 102 MM

Name: ENGINE REBUILD KIT FOR LONG TRACTOR 4 CYL 102 MM
SKU: 11501253REBUILD
Price: 1265.0 USD
Availability: OutOfStock

ENGINE REBUILD KIT FOR LONG TRACTOR 4 CYL 102 MM

$1,265.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

New Aftermarket Replacement ENGINE REBUILD KIT FOR LONG TRACTOR 4 CYL 102 MM

Models This Part Fits:

2610SD, 2610, 2610SD-DTC, 610DTE, 610C, 610

Additional Information:

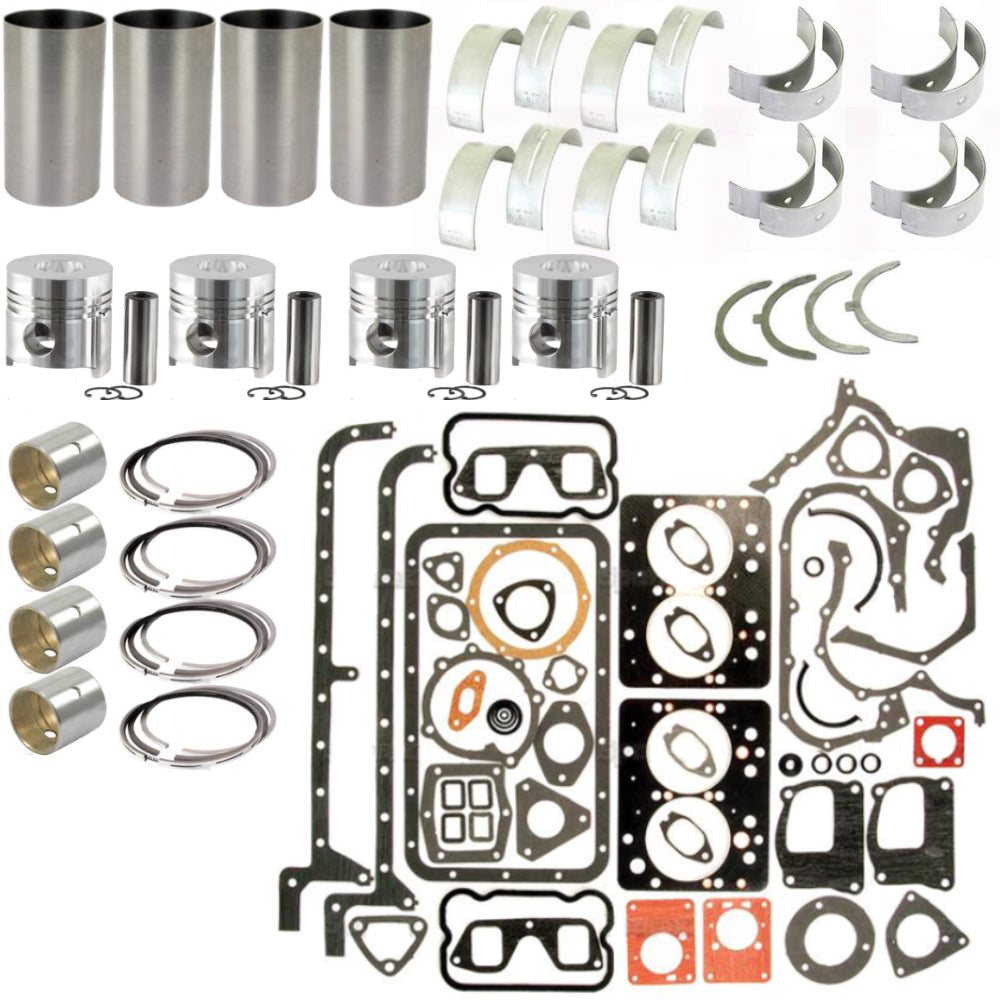

Kit Contains: (4) Standard Piston Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3 Replaces Part Number: TX15107 (4) Liner Liner - 4.01” (102mm) Bore Replaces Part Number: TX12098 (4) Main Bearings (Pair) Main Bearing Kit (Std.) (4) Standard Connecting Rod Bearing Connecting Rod Bearing Pair (Std.) (4) Small End Bushing Inside Diameter 1.23” (31.4 mm) Wall Thickness 0.09” (2.35 mm) Overall Length 1.36” (34.7 mm) Lubrication Hole Yes Replaces Part Number: TX10196 (4) Piston Ring Set Replaces Part Number: TX15167 (1) Thrust Bearings Set Thrust Washer Set (Std.) (Centre Tab) (1) Full Gasket Set Replaces Part Number: TX16504
