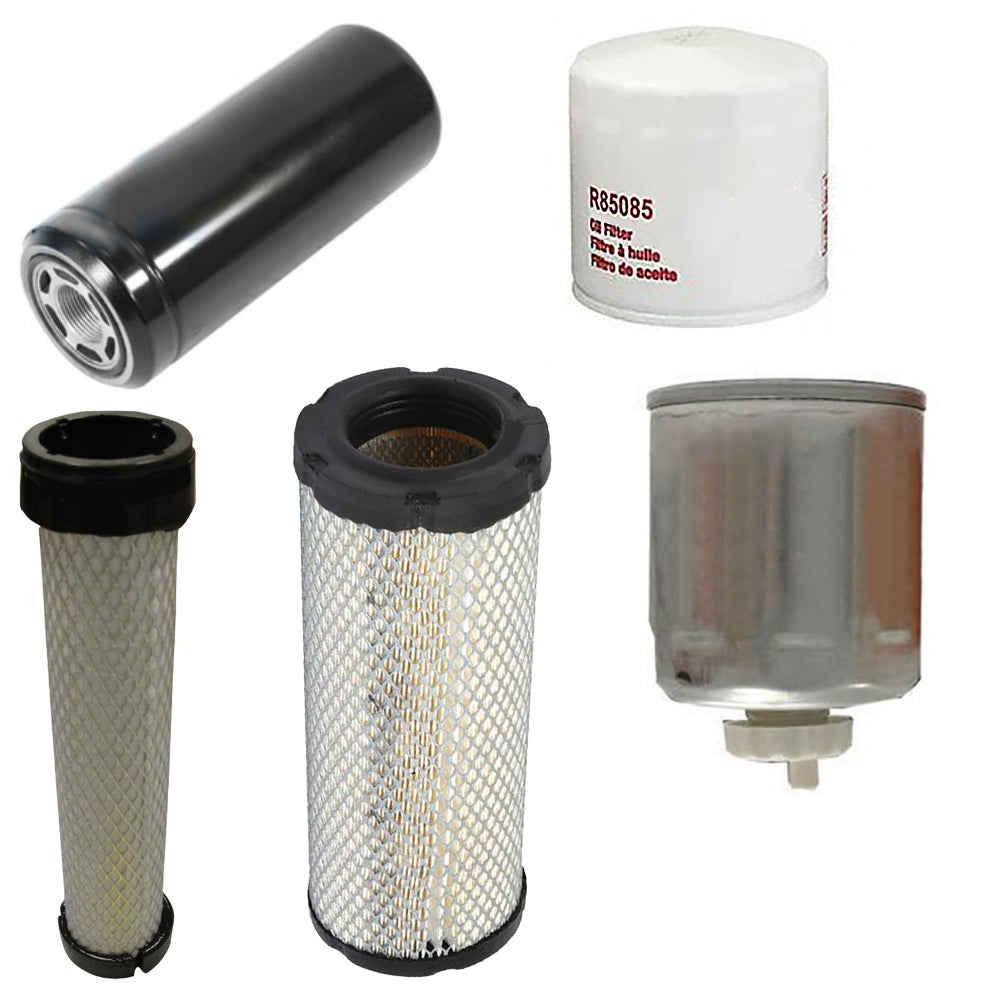

Engine Maintenance Filter Kit Fits Ford/New Holland Replaces 86504140

Engine Maintenance Filter Kit Fits Ford/New Holland Replaces 86504140

$167.00 CAD
$167.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Engine Maintenance Filter Kit

Tech Info:
 -Kit Contains:
 -
 -(1) Hydraulic Filter
 -3.810" Top O.D.
 -9.490" Height
 -1-3/8"-12 Thread Size
 -Style - Spin-On Hydraulic Filter
 -Service - Hydraulic
 -Type - Full Flow
 -Media - Microglass
 -Outer Diameter Bottom - Closed
 -By-Pass Valve Setting-PSI - None
 -Beta Ratio - 20/75=17/23
 -Burst Pressure-PSI - 1000
 -Max Flow Rate - 24-28 GPM
 -Nominal Micron Rating - 17
 -Replaces Part Number: 1346028C1
 -
 -(1) Spin-on Oil Filter
 -Outside Diam.: 3-5/8 (92), Length: 6-3/4 (172), Thread: 3/4 x 16 UNF
 -Features: anti-drip valve, by-pass valve
 -Lube filter for diesel and gas applications
 -Replaces Part Number: LF3400
 -
 -(1) Fuel Filter
 -Filter Length: 4 7/32"
 -Filter O.D. : 3"
 -Filter Thread Size: M16 x 1.5
 -Replaces Part Numbers: 6647773, 120-716
 -
 -(1) Inner Air Filter
 -Inner Diameter: 1-3/4" (44.5mm)
 -Outer Diameter: 2-13/32" (61.1mm)
 -Length: 10-13/32" (264.3mm)
 -Replaces Part Numbers: AF25552, R1411-42280
 -
 -(1) Outer Air Filter
 -Inside Diameter: 2-5/16" (58.7)
 -Outside Diameter: 4-1/8" (104.8)
 -Length: 10-13/16" (274.6)
 -Replaces Part Numbers: R1411-42270, 121-3661

Made to Fits Ford/New Holland:
 Skid Steer Loader Models: L140, L150, L160, L170, L175, L465, L565, LS140, LS150, LS160, LS170, LX465, LX485, LX565, LX665
 Replaces Part Number(s): 86504140, 87036044

Models This Part Fits:

L150, L170, L465, L160, LX485, LX665, L565, LX565, L175, LS170, L140, LX465, LS150, LS140, LS160

Additional Information:

(1) Hydraulic Filter 3.810" Top Outer Diameter 9.490" Height 1-3/8"-12 Thread Size Style - Spin-On Hydraulic Filter Service - Hydraulic Type - Full Flow Media - Microglass Outer Diameter Bottom - Closed By-Pass Valve Setting-PSI - None Beta Ratio - 20/75=17/23 Burst Pressure-PSI - 1000 Max Flow Rate - 24-28 GPM Nominal Micron Rating - 17 Replaces Part Number: 1346028C1 (1) Spin-on Oil Filter Outside Diameter: 3-5/8 (92) Length: 6-3/4 (172) Thread: 3/4 x 16 UNF Features: anti-drip valve, bypass valve Lube filter for diesel and gas applications Replaces Part Number: LF3400 (1) Fuel Filter Filter Length: 4 7/32" Filter Outer Diameter: 3" Filter Thread Size: M16 x 1.5 Replaces Part Numbers: 6647773, 120-716 (1) Inner Air Filter Inner Diameter: 1-3/4" (44.5mm) Outer Diameter: 2-13/32" (61.1mm) Length: 10-13/32" (264.3mm) Replaces Part Numbers: AF25552, R1411-42280 (1) Outer Air Filter Inside Diameter: 2-5/16" (58.7) Outside Diameter: 4-1/8" (104.8) Length: 10-13/16" (274.6) Replaces Part Numbers: R1411-42270, 121-3661

Reference Numbers:

86504140, 87036044
