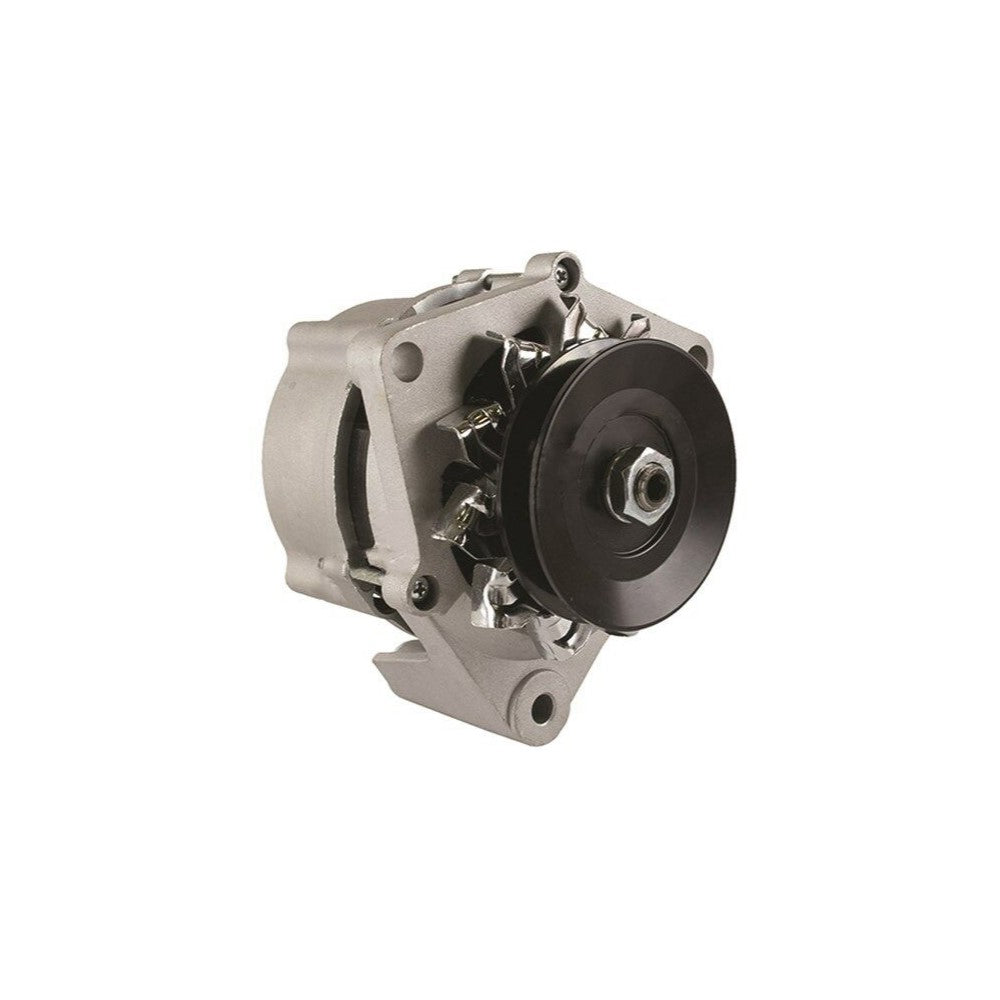

One New Aftermarket Replacement Alternator for Challenger (AGCO) and Massey Ferguson Tractors
This Bosch-type 12V/35A aftermarket replacement alternator fits Challenger MT334 and MT364 compact tractors equipped with Perkins engines. It is a direct-fit replacement for the original Bosch-style charging system unit, featuring an internal regulator, clockwise rotation, single-groove V-belt pulley, and external fan. The Bosch OEM number for this alternator is 9120080159 (also formatted as 9-120-080-159); the Massey Ferguson OEM numbers are 3589435M91 and 3589435M910.
Specifications
- Voltage: 12V
- Amperage: 35A
- Rotation: Clockwise
- Regulator: Internal
- Fan: External
- Pulley: Single-groove V-belt
- Pulley OD: 3.858 in / 98 mm
- Mounting: 3-ear spool mount
- Weight: approx. 11.7 lbs / 5.32 kg
- Unit Type: Bosch-style
Compatible Models
Challenger (AGCO) Tractors: MT334, MT364
Massey Ferguson Tractors: 235, 250, 250X, 251XE, 265, 271, 271X, 271XE, 275, 281, 281X, 281XE, 283, 290, 292, 297, 298, 299, 375E, 390E, 415, 425, 435, 440, 445, 451, 460, 465, 471, 475, 481, 491, 492, 650, 660, 680, 5275, 5285, 5290, 5300, 5340, 5355, 5360, 5365
Massey Ferguson Combine: MF3640
Replaces Part Number(s):
1200-0526, 1200-0526-A, 3589435M91, 3589435M91-A, 3589435M910, 3589435M910-A, 9-120-080-159, 9-120-080-159-A, 9120080159, 3146233M92, 049202T2
Aftermarket Interchange Numbers
Bosch 20711; also cross-references Bosch 0-120-080-159
New aftermarket replacement part - not remanufactured, not used.
