K307720 Alternator Fits Case/International Harvester 1294 1394 1494 1594 1690
K307720 Alternator Fits Case/International Harvester 1294 1394 1494 1594 1690
Couldn't load pickup availability

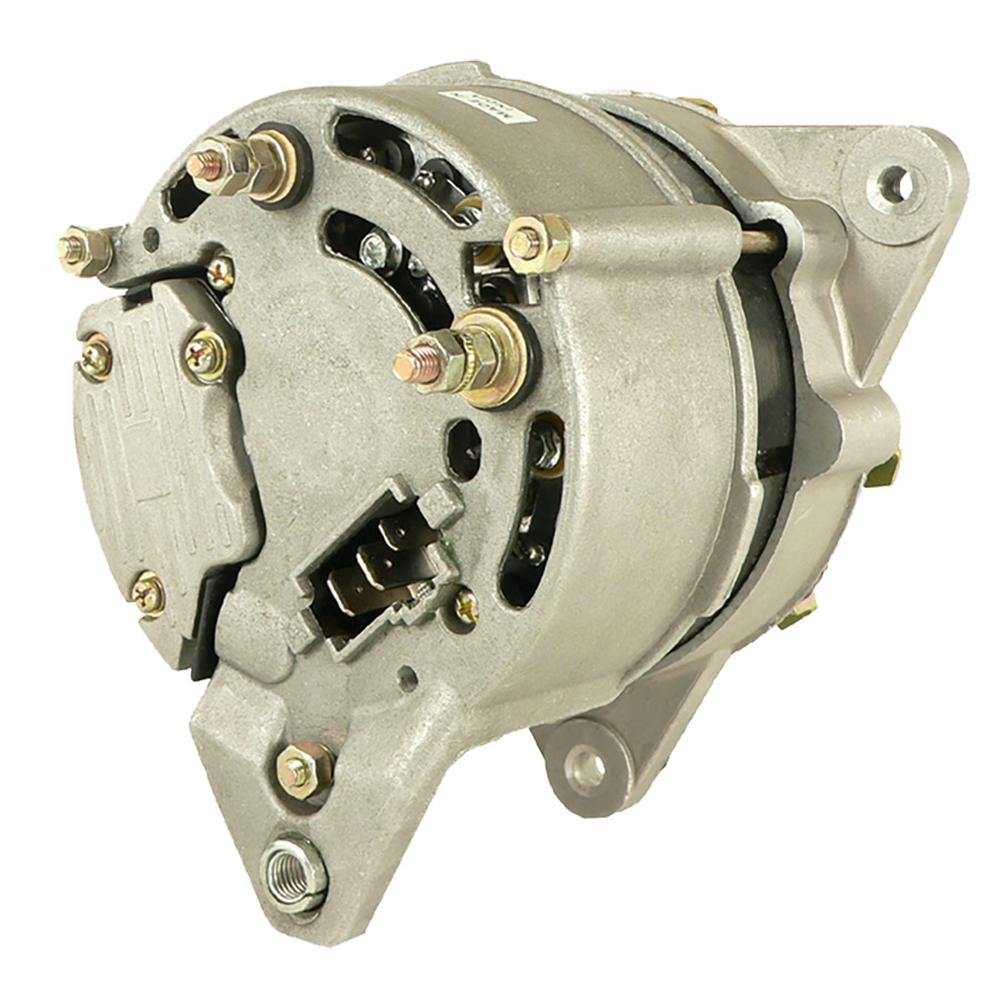

One New Aftermarket Replacement Alternator Fits Case/International Harvester Agricultural Tractors
This Fits Lucas-style alternator replaces OEM part number K307720 and restores charging system output on Fits Case and Fits International Harvester diesel tractors built from 1980 through 1988. The unit is a 12-volt, 65-amp alternator with an external fan, internal regulator, and clockwise rotation, designed as a direct-fit replacement for the original Fits Lucas unit.
Specifications
- Voltage: 12V
- Amperage: 65A
- Rotation: Clockwise (CW)
- Fan: External
- Regulator: Internal
- Polarity: Negative
- Regulator Clock Position: 9:00
- Note: Pulley not included
Compatible Models
Fits Case/International Harvester Agricultural Tractors:
- 1294 - 4-219 Diesel (1983-1984)
- 1394 - 4-219 Diesel (1983-1988)
- 1494 - 4-219 Diesel (1983-1988)
- 1594 - 6-329 Diesel (1983-1988)
- 1690 - 6-329 Diesel (1980-1985)
Replaces Part Number(s):
K307720, A47992, AL-445
Aftermarket Interchange Numbers
Fits Lucas: 24049, 24049A, 24049B, 24049D, LRA118, LRA131, A2511 | Iskra / Letrika: AAK4118, IA0276 | Fits Massey Ferguson: 3477851M91, 3538541M91 | Fits Motorola: 510-345, 9AR2919P | Fits Delco Reman (Europe): DRA3940
New aftermarket replacement part - not remanufactured, not used.
