RE70268 Alternator Fits John Deere 5210 5310 5310N 5320N 5410 5415H 5415N 5420 5

RE70268 Alternator Fits John Deere 5210 5310 5310N 5320N 5410 5415H 5415N 5420 5

$276.00 CAD
$276.00 CAD
Sale Sold out
Shipping calculated at checkout.

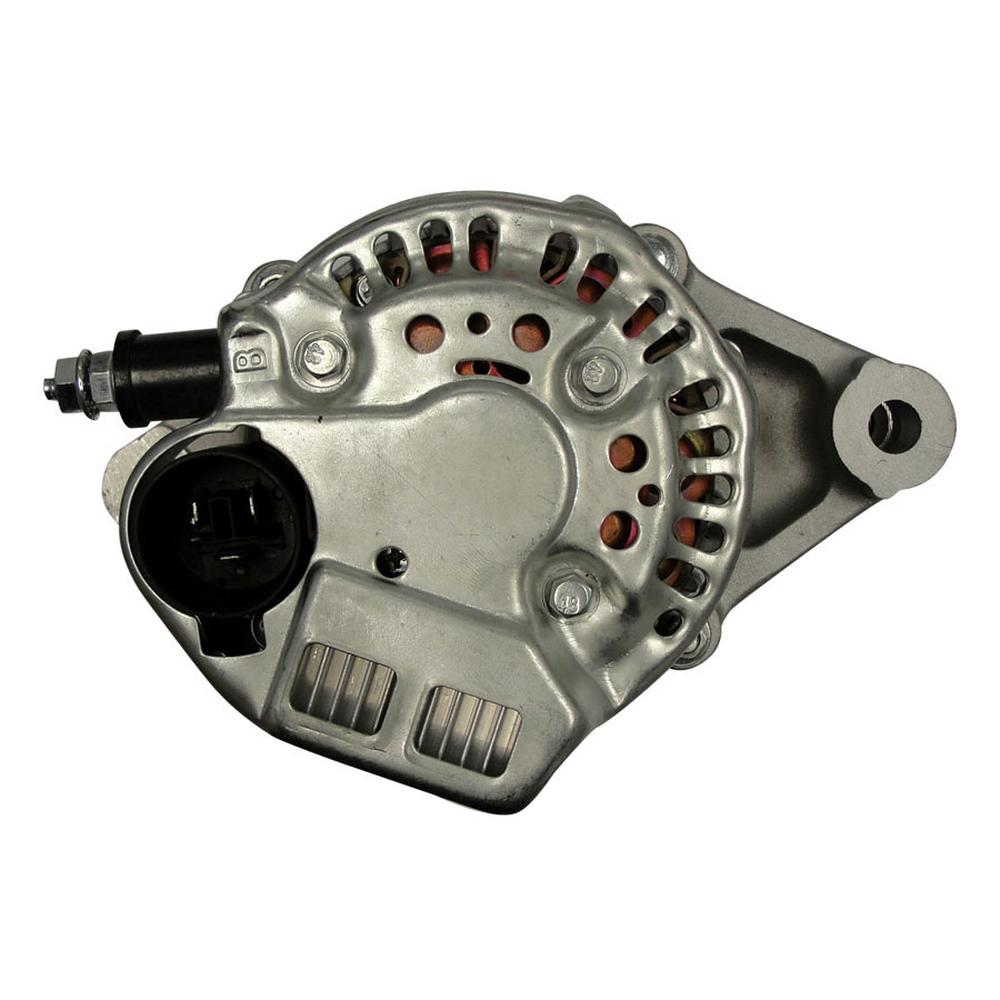

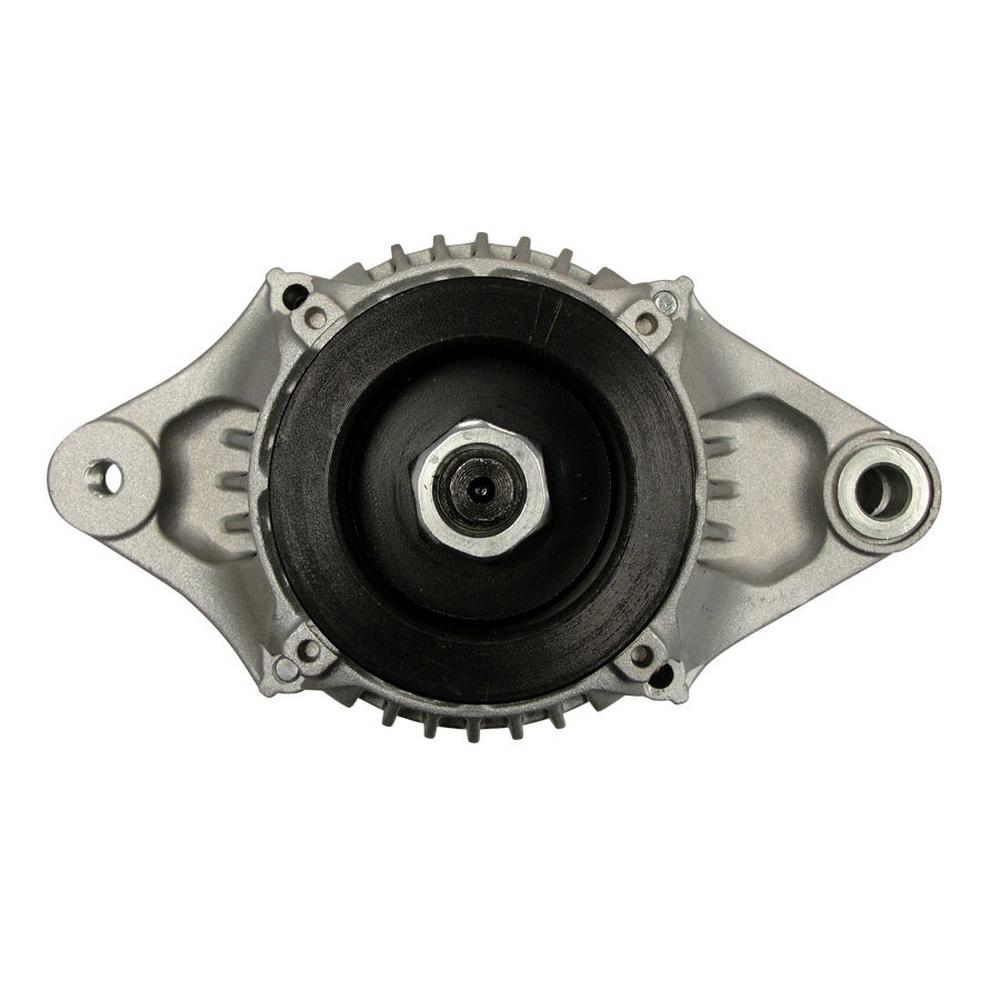

One New Aftermarket Replacement Alternator Fits John Deere (Fits JD) 5000 Series Tractors

This aftermarket replacement alternator Fits John Deere PowerTech 4.5L diesel tractors across the 5000 utility and farm series. It is a Fits Denso-style, 12-volt, 40-amp unit with a 5-groove pulley and internal regulator, supplying reliable electrical charging to keep your tractor running at full capacity.

Specifications

  • Voltage: 12V
  • Amperage: 40A
  • Rotation: Clockwise (CW)
  • Regulator: Internal (IR)
  • Fan Type: Internal Fan (IF)
  • Pulley: 5-Groove, 62mm OD
  • Clock Position: 12
  • Style: Fits Denso Type

Compatible Models

Fits John Deere Utility Tractors: 5210, 5310, 5310N, 5320N, 5403, 5410, 5415, 5415H, 5415N (Narrow), 5420, 5420N, 5510, 5510N, 5515, 5515F, 5515V, 5520, 5520N

Fits John Deere Farm/Ag Tractors: 5615, 5615F, 5615V, 5715, 5715HC

Replaces Part Number(s):

RE70268, RE72916, TY25240, 101211-1130, 101211-1131, 290-401, 400-52174, 12353N, 90-29-5423, AND0531

Aftermarket Interchange Numbers

Lester: 12353 | Fits Denso: 101211-1130, 101211-1131 | Arrowhead: AND0531 | J&N: 400-52174 | WAI: 12353N | item_name: ELV40-0228

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5510, 5310, 5520N, 5715HC, 5715, 5310N, 5210, 5615, 5320N, 5415H, 5410, 5420, 5510N, 5415N, 5420N, 5520

Reference Numbers:

290-401, TY25240, 400-52174, RE72916, RE70268, 12353N, 90-29-5423, 101211-1131, AND0531
