8972251170 Alternator Fits John Deere 27C ZTS 27ZTS 35C ZTS 35ZTS 50C ZTS 50ZTS
8972251170 Alternator Fits John Deere 27C ZTS 27ZTS 35C ZTS 35ZTS 50C ZTS 50ZTS
Couldn't load pickup availability

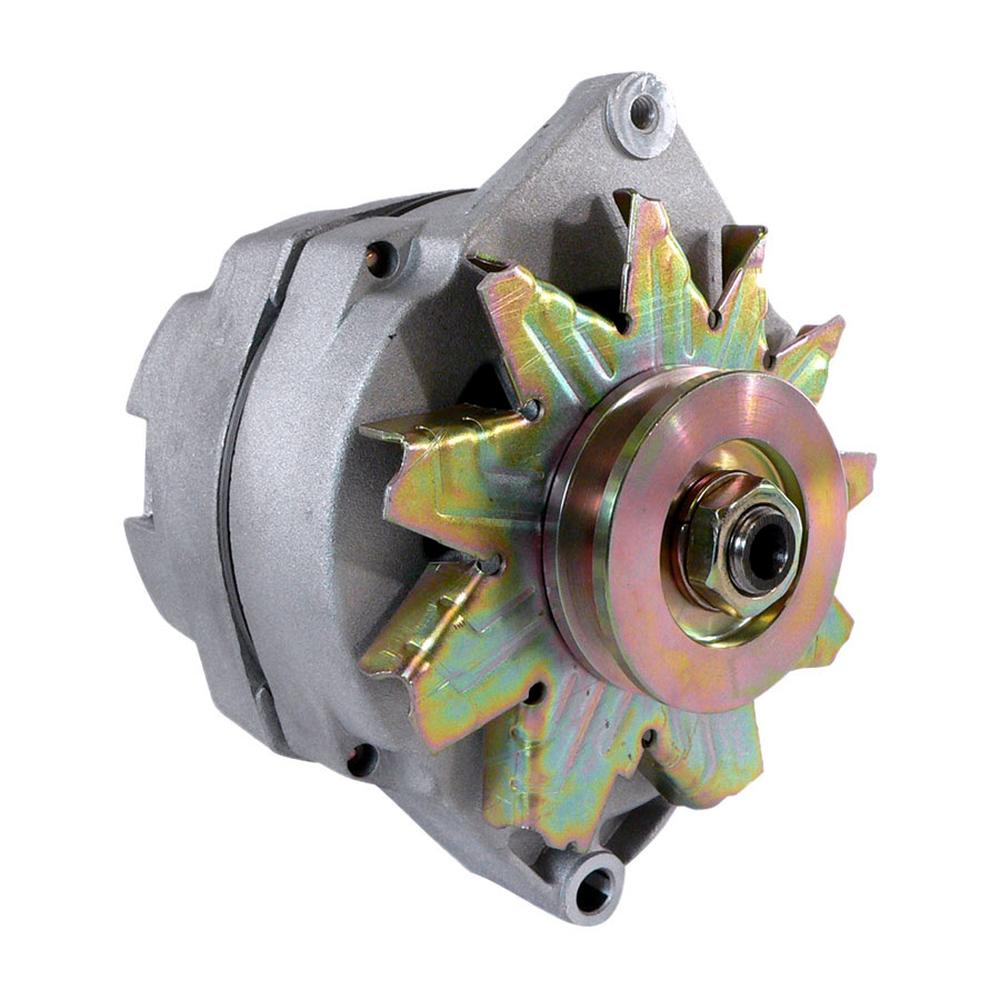

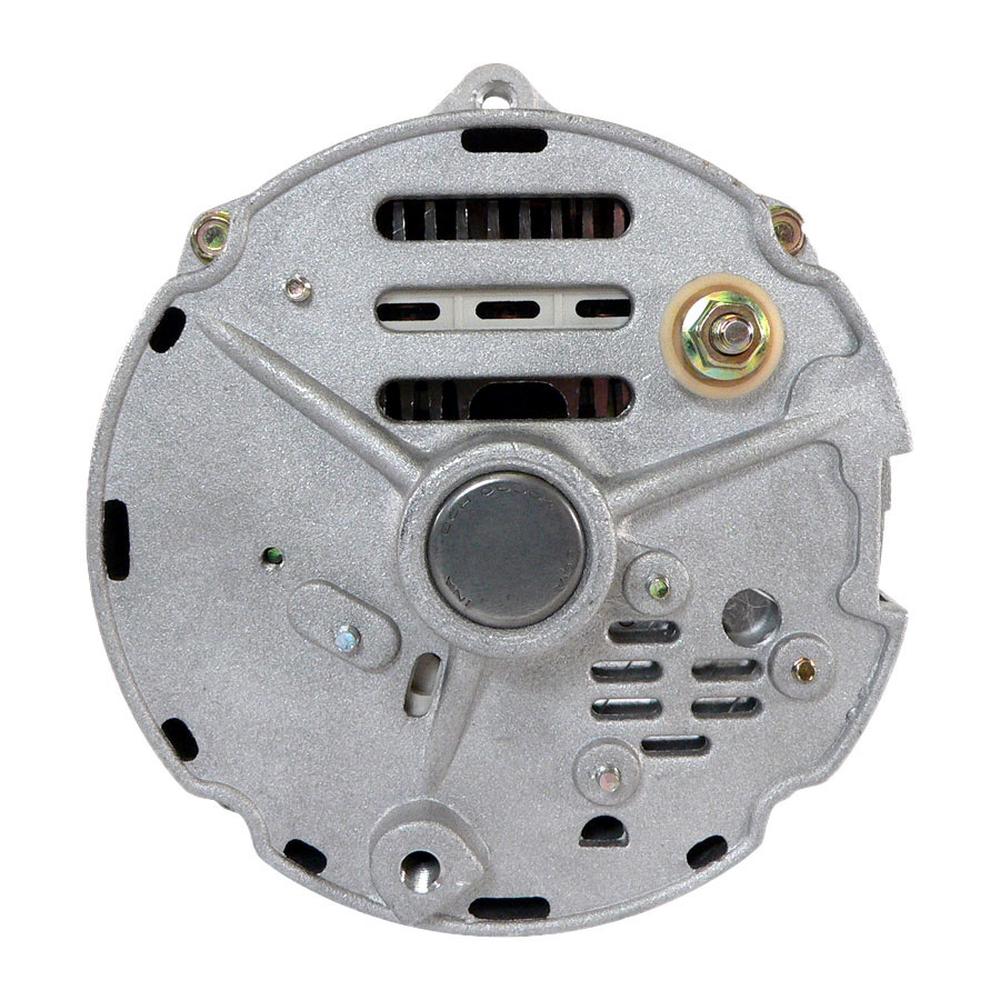

One New Aftermarket Replacement Alternator Fits John Deere ZTS Series Compact Excavators
This aftermarket replacement alternator Fits John Deere ZTS series compact excavators powered by Isuzu 3LD1, 3LD2, 4LE1, and 4LE2 diesel engines. The Fits Denso-type unit charges the 12-volt electrical system and is a direct drop-in replacement for OEM part numbers 8972251170 and AT195649.
Specifications
- Voltage: 12V
- Amperage: 35A
- Rotation: Clockwise (CW)
- Regulator: Internal (IR)
- Fan Type: Internal (IF)
- Pulley: Single-groove (V1), 74mm OD
- Regulator Clock Position: 12:00
- Polarity: Negative
- Output Stud: M6-1.0
- Weight: approx. 6.6 lbs / 3.0 kg
- Unit Type: Fits Denso
Compatible Models
Fits John Deere ZTS Compact Excavators: 27C ZTS (Isuzu 3LD2 engine), 27ZTS (Isuzu 3LD1 engine), 35C ZTS (Isuzu 3LD1 engine), 35ZTS (Isuzu 3LD1 engine), 50C ZTS (Isuzu 4LE2 engine), 50ZTS (Isuzu 4LE1 engine)
Replaces Part Number(s):
8-97225117-0, 8972251170, AT195649, 101211-1241, 101211-1242, 021080-0830, 400-52301, 90-29-5528, 290-5292, 12653N
Aftermarket Interchange Numbers
Fits Denso: 101211-1240, 101211-1241, 101211-1242, 021080-0830 | Arrowhead: AND0545 | J&N: 400-52301 | Lester: 12653
New aftermarket replacement part - not remanufactured, not used.
