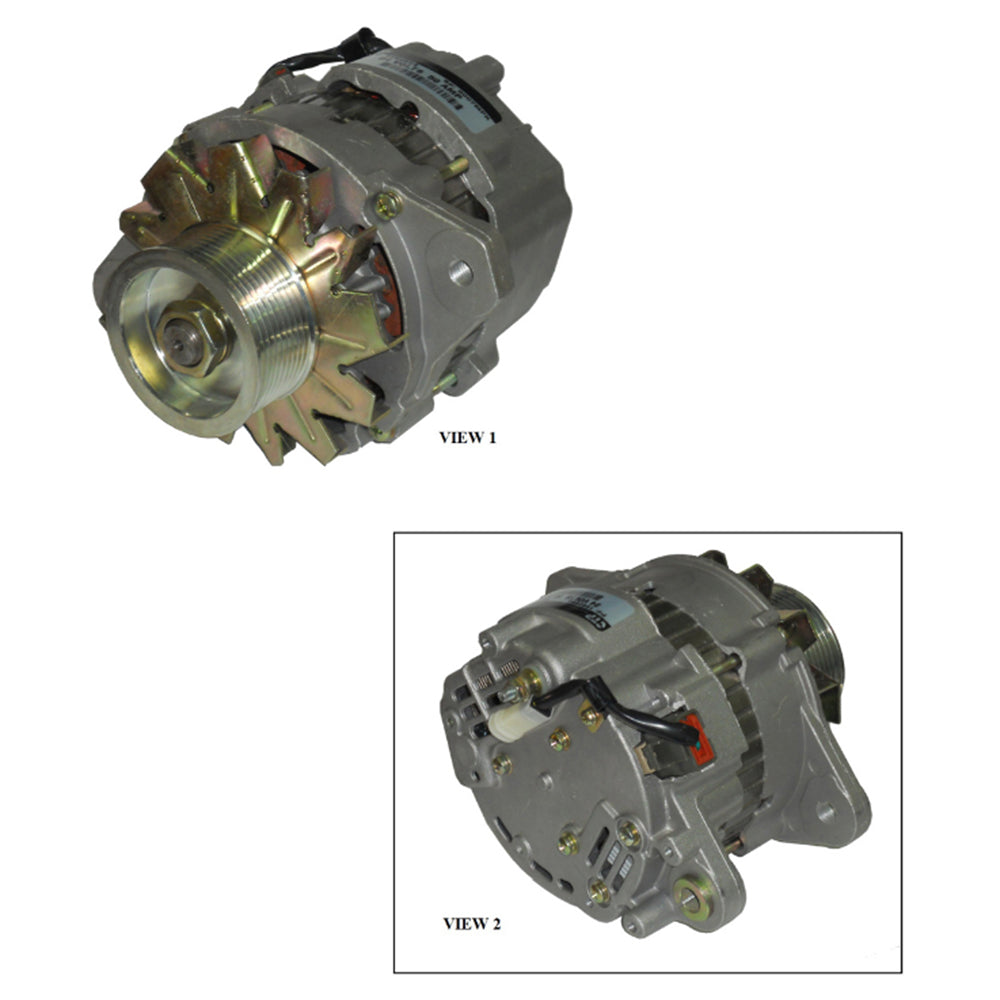

One New Aftermarket Replacement Alternator Fits Caterpillar (Fits CAT) Excavators
This alternator Fits Caterpillar (Fits CAT) OEM part number 1252994 (125-2994) and is designed for use in Fits CAT D-Series and B/C-Series excavators powered by the 3066 and C4.2 engines. It is a Fits Mitsubishi-type unit supplying 24-volt, 50-amp output to keep batteries charged and electrical systems running during demanding excavation work.
Specifications
- Voltage: 24V
- Amperage: 50A
- Fan: External
- Regulator: Internal
- Polarity: Negative
- Regulator Position: 5:00
- B+ Terminal: M5-0.8
- Weight: approx. 20.9 lbs / 9.5 kg
- Unit Type: Fits Mitsubishi
- Rotation: Clockwise
Compatible Models
Fits Caterpillar D-Series Excavators: 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN
Fits Caterpillar B/C-Series Excavators: 320B, 320B FM LL, 320B U, 320C, 320N
Fits Caterpillar Engines: 3066, C4.2
Replaces Part Number(s):
1252994, 125-2994, 10R7561
Aftermarket Interchange Numbers
Fits Mitsubishi: A4TU3591, A4TU3591ZC, A004TU3591, A004TU3591ZC; Fits Mitsubishi Industrial: 34368-02400, 3436802400; Fits Caterpillar alternate: 10R-7561
New aftermarket replacement part - not remanufactured, not used.
