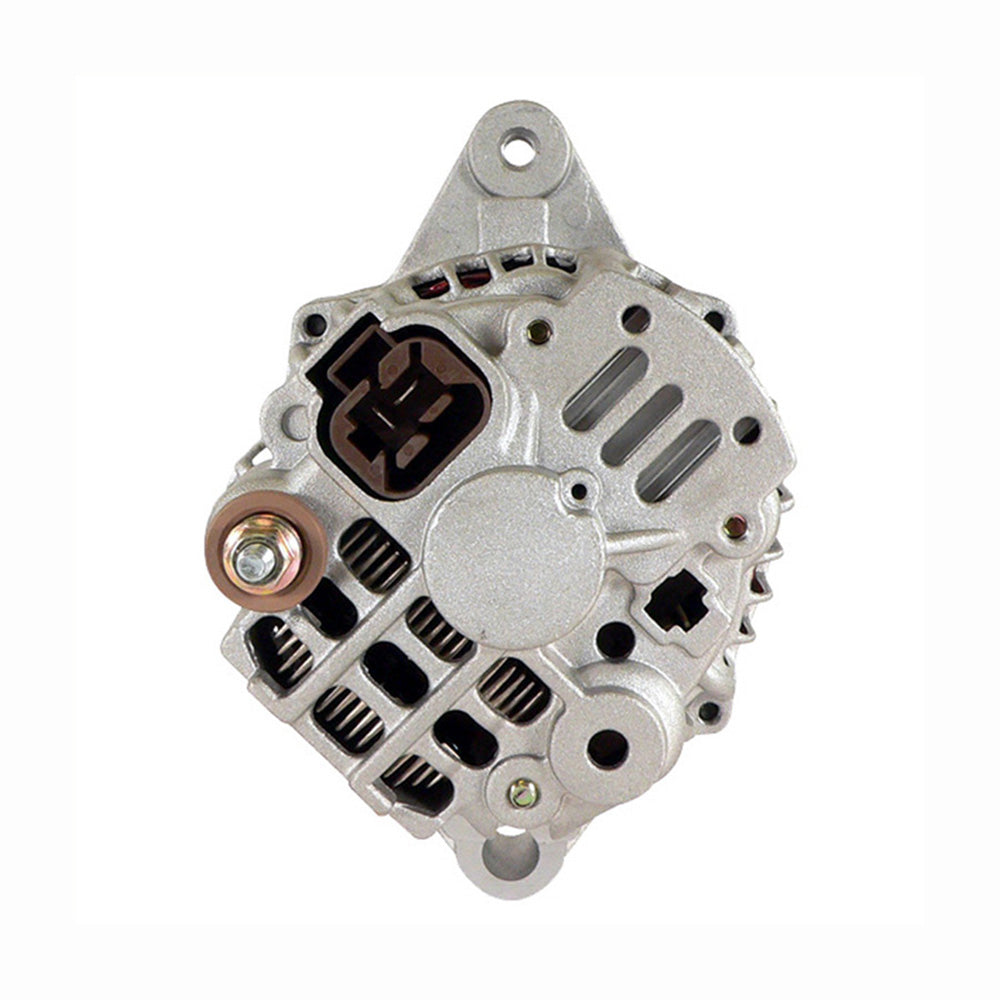

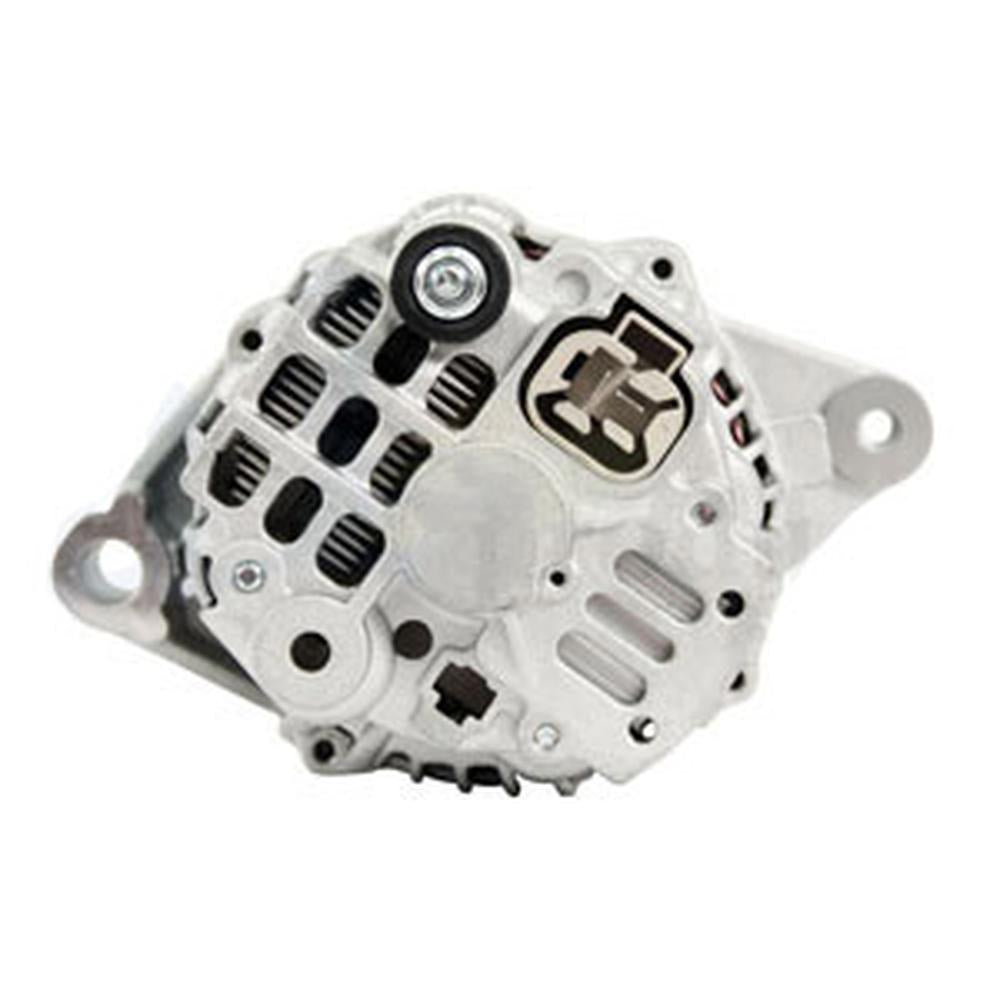

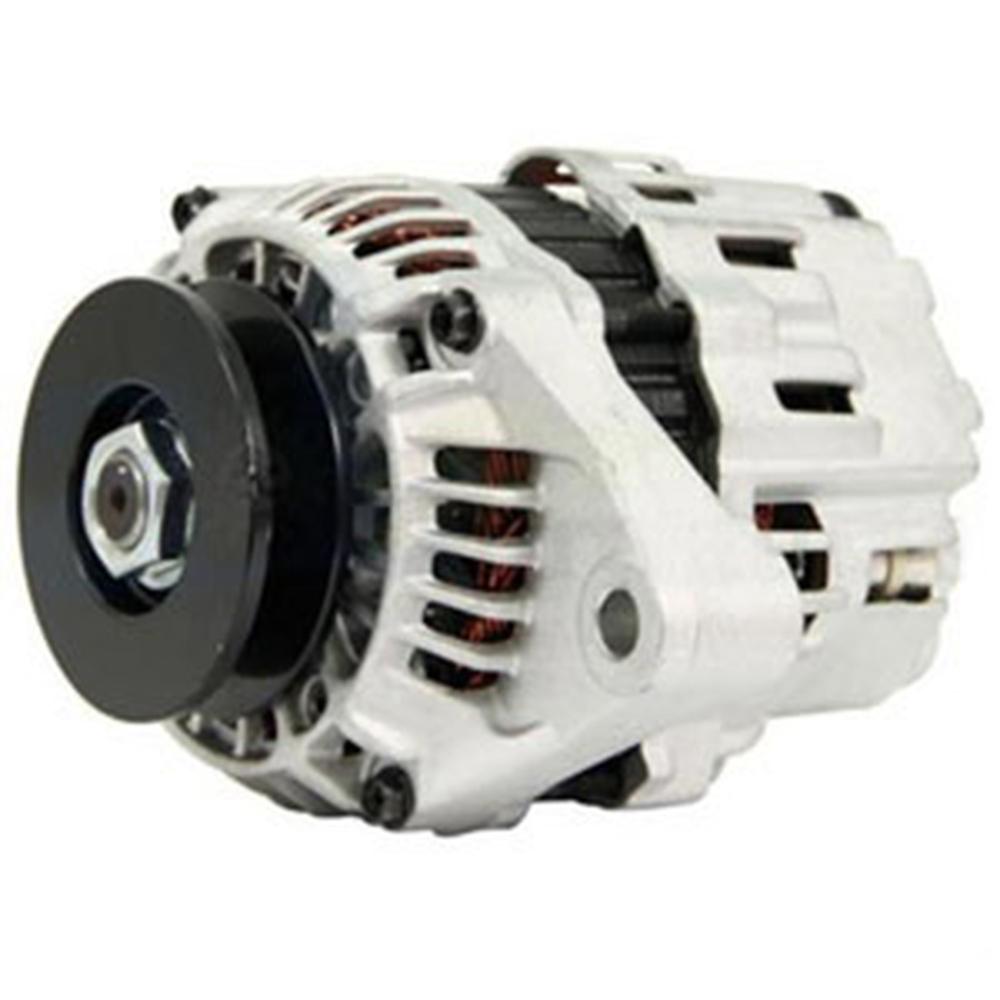

Alternator Fits Kubota 1C010-64010 A007TA1677 1C010-64011 A007TA1677ZC 12363

Alternator Fits Kubota 1C010-64010 A007TA1677 1C010-64011 A007TA1677ZC 12363

$273.00 CAD
$273.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Alternator Fits Kubota M-Series Utility Tractors

This aftermarket replacement alternator Fits Kubota M-Series utility tractors powered by the Fits Kubota V3300 and V3300E diesel engines. It is a Fits Mitsubishi-design unit with an internal regulator and internal fan, 12-volt, 45-amp output, clockwise rotation, and a single-groove solid pulley. Fits Kubota OEM part number 1C010-64010 and Fits Mitsubishi original units A007TA1677 and A007TA1677ZC. Lester catalog number 12363.

Specifications

  • Voltage: 12V
  • Amperage: 45A
  • Rotation: Clockwise (CW)
  • Regulator: Internal (IR)
  • Fan: Internal (IF)
  • Pulley: Single-groove (V1), solid, 2.913 in / 74 mm OD
  • Mounting Ear 1: M8 x 1.25 threaded
  • Mounting Ear 2: 10.7 mm unthreaded
  • B+ Terminal: M6 x 1.0
  • Polarity: Negative ground
  • Regulator Clock Position: 11:00
  • Unit Type: Fits Mitsubishi design

Compatible Models

Fits Kubota M6800 Series (V3300E, 68 HP Diesel, 1998-2005): M6800, M6800DT, M6800HD-F, M6800S, M6800S-F, M6800SC, M6800SD-F, M6800SDC, M6800SDT

Fits Kubota M8200 Series (V3300, 82 HP Diesel, 1998-2005): M8200, M8200C, M8200CCS, M8200DT, M8200DT-F, M8200DTC, M8200F, M8200SDNB, M8200SDNBC, M8200SDNBF

Fits Kubota M9000 Series (V3300, 90 HP Diesel, 1999-2009): M9000, M9000C, M9000DT, M9000DT-F, M9000DTC, M9000DTCCS, M9000DTL, M9000DTL-F, M9000DTM

Replaces Part Number(s):

ELV40-0055, ELV40-0471, 1C010-64010, 1C010-64011, 1C010-64012, A007TA1677, A007TA1677ZC

Aftermarket Interchange Numbers

Fits Mitsubishi: A7TA1677, A7TA1677ZC, A007TA3577, A007TA3577A, A007TA3577C, A7TA3577, A7TA3577A, A7TA3577C; Fits Kubota: 3A251-74011, 3C081-74010, 3C081-74011, 3C081-74012, KEARA1C010; Arrowhead: AMT0118; DB Electrical: 400-48089; Lester: 12363

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

M9540HD-1, M9540F, M9540HFL-1S, M8560HF, M9540DT-1, M9960HDL, M9540HFL-1, M8540HD12-1, M8560HD, M108SDSF, M6800DT, M6800HD, M8200SDTN, M8560HD12, M8200N, M9960HD12, M9960HD, M9540HD12-1, M8200HD, M96SHDM, M8540F, M9540HDL, M108SHD, M9540F-1, M8200DT, M95SDS, M108SDSL, M9540HDL-1S, M9000HDLF, M6800, M105SH, M8540HD, M9540HFL, M9000HD, M95SH, M9000, M9540HD12, M8200, M105SDSL, M8540F-1, M8540HDNB-1, M9540HDL-1, M9960HDLSN, M108SH, M8200DTN, M6800S, M105SDSF, M9000DTL, M96SDS, M96SH, M9960HF, M108SDS, M6800SDT, M8540DT, M8540HDNB, M9000DT, M8540HD-1, M9000DTM, M105SHD, M8540HD12, M9540DT, M9540HD

Reference Numbers:

1C010-64010, 1C010-64011, 1C010-64012, 3A251-74010, 3A251-74011, 3A251-74012, 3C081-74010, 3C081-74011, 3C081-74012, 77700-02600, KC08174012
