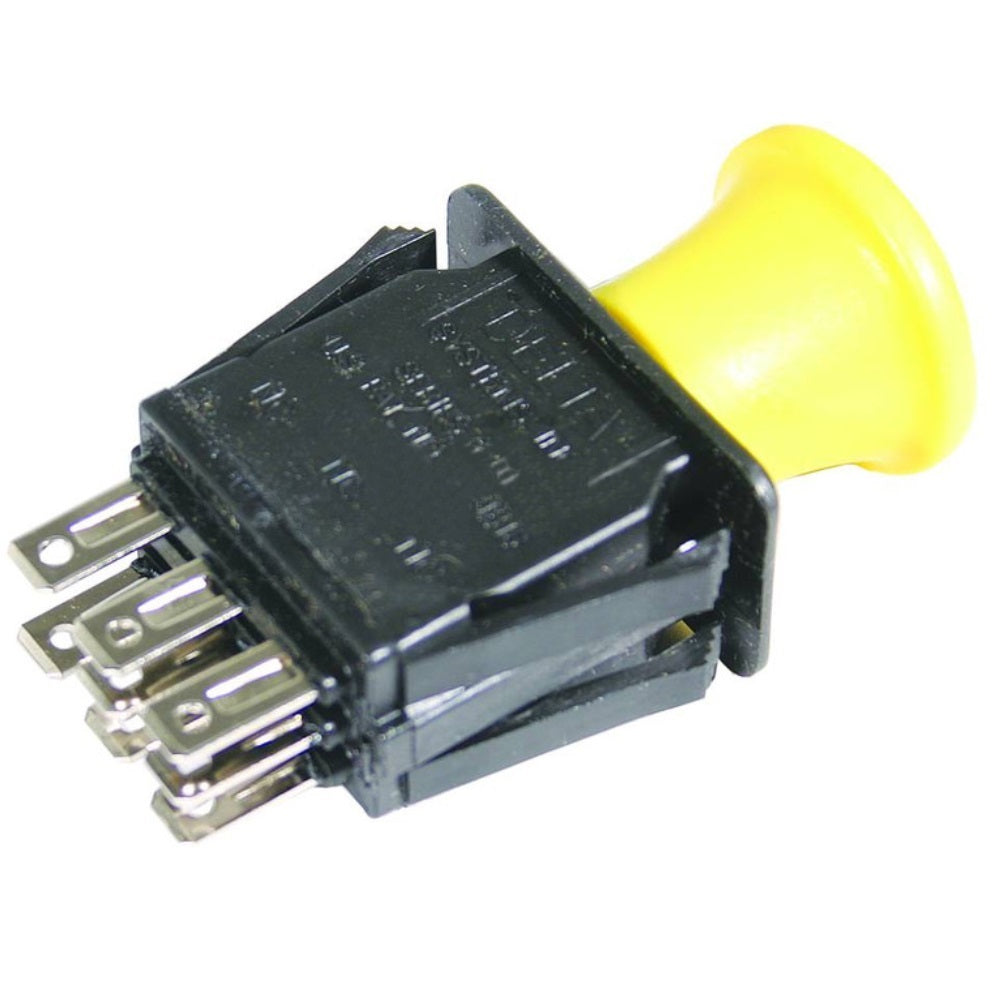

PTO Switch Fits John Deere Delta Fits Exmark Fits Toro Mowers 103-5221 TCA17834

PTO Switch Fits John Deere Delta Fits Exmark Fits Toro Mowers 103-5221 TCA17834

$26.00 CAD
$26.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement PTO Switch

Fits Bobcat: 61" Zero-Turn 200 942200-942299 Rider Drive Units; 930022, 930023, 922010 and 934010A Gear Drives; 930000-936406A Power Units and Hydro Drives

Fits EverRide: Warrior

Fits Exmark: Turf Tracer Floating Deck Walk-behinds, Serial No. 190,000 and Higher, without ECS, with 52" and 60" Deck; Lazer Z, Serial No. 102,000-370,000 with 52", 60" and 72" Deck; and Lazer XP, Serial No. 260,000-540,000 with 60" and 72" Deck

Fits Grasshopper: 320 Series Zero-Turns, 2002-2008, with 52", 61" and 72" Deck

Fits Toro: 74269 with 72" Deck and Z 500's Z Master with 60" and 72" Deck

Tech Info:
Push/pull
Snap mount
Yellow knob
Ignition type PTO
No of Positions 2

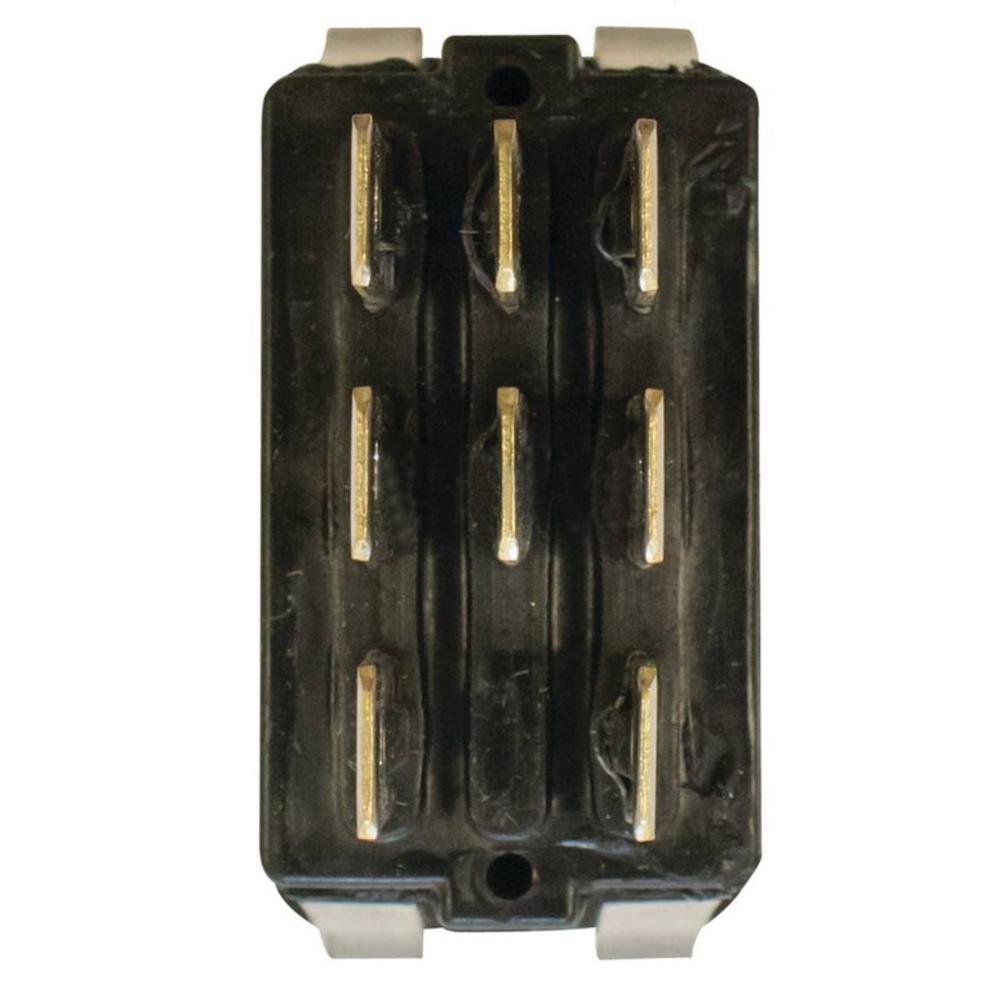

No of Terminals 8

color may vary based on stock

Replaces Part Numbers:
Fits Ariens: 00136574
Fits Bobcat: 4172503
Fits Delta: 6201-342, 6204-342
Fits Everride: 136574
Fits Exmark: 103-5221, 1-633673, 633673
Fits Grasshopper: 183925
Fits John Deere: B1EM48, TCA17834, TCA21027, TCA22710
Fits MTD: 725-07520
Fits Scag: 481635
Fits Toro: 103-5221, 1-633673
Fits Yanmar: 172531-17300

Models This Part Fits:

STCII-48V, Medion 310, La150, Warrior, 320, X130R, Mega 204, Tiger Cat 2, Dominator 98, Lazer Z, D170, Dominator 88, 930000-936406A, X140, 934010A, Jaguar 685, Mega 218, 930023, La165, STC61V, Dominator 78, STCII-61V, La175, 200 942200-942299, La130, 922010, 74269, Tiger Cat, Dominator 108, La140, Z 500's Z Master, Medion 340, STCII-52V, 930022, STC48V, STC52V, Mega 208, X155R, Jaguar 690, D160, La155, La145, X165, Lazer XP, Turf Tracer

Additional Information:

Smooth Knob (not with Grooves). Number of Positions: 2 Number of Terminals: 8 Ignition Type: PTO Knob Type: Push / Pull Mount Type: Snap Mount

Reference Numbers:

00136574, 136574, 4172503, 103-5221, 1-633673, 633673, AM119139, GY20939, 481635, 183925, 103-5221, 1-633673, 136574

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Switches
View More: Switches Replacement Parts
View full details
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Tom D (Leander, US)
Better than OEM

If you have a John Deere Z-track mower with this type of PTO switch you have probably experienced problems with them working erratically and preventing you from starting or running your machine. I had an OEM JD switch on hand and had bought this aftermarket one from Reliable as a backup. Last week the switch on our Z915-B finally died. I installed the JD OEM replacement and it didn't work! Fortunately I had the Reliable switch and swapped it out for the defective switch and it works like a champ. Better yet, it costs less too!!
