New Seat Switch Fits John Deere 2210 Compact Tractor 430-413, AM103119
New Seat Switch Fits John Deere 2210 Compact Tractor 430-413, AM103119
Couldn't load pickup availability

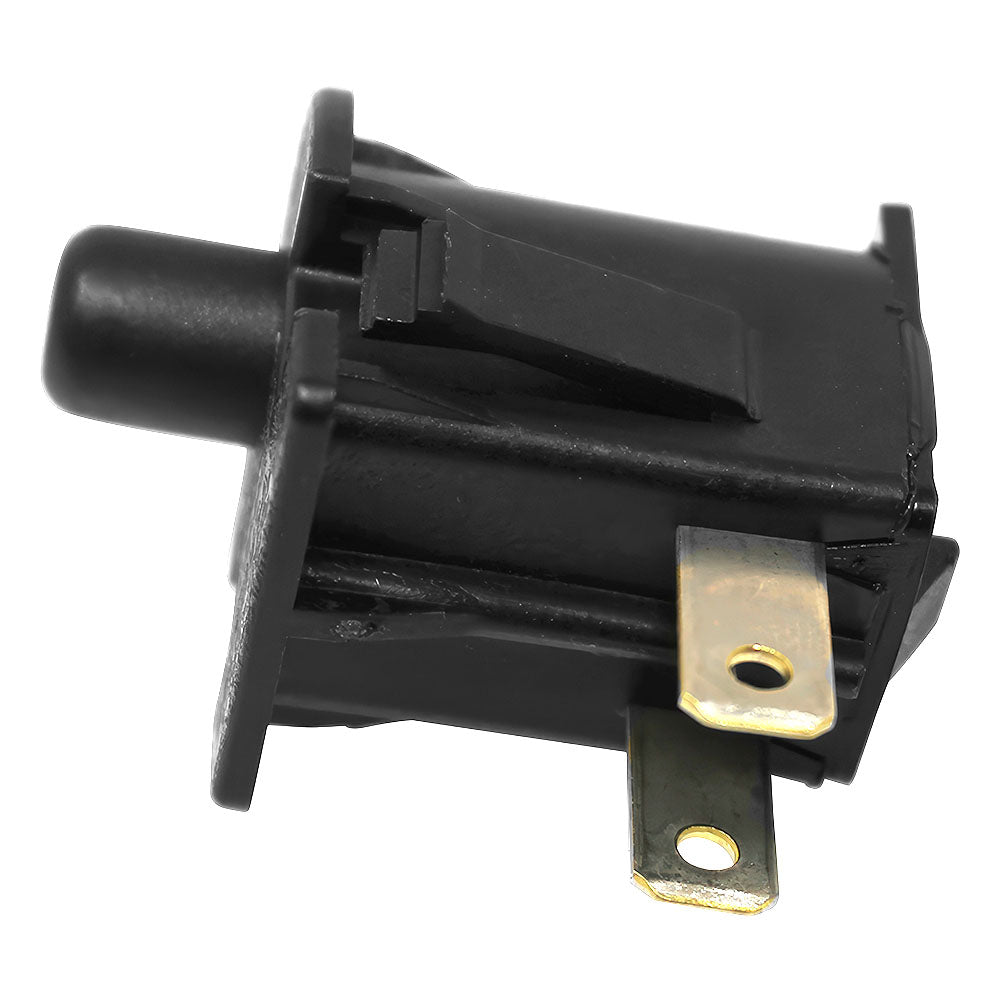

One New Aftermarket Replacement Seat Safety Switch for John Deere, Ariens, Husqvarna, Scag, Kubota and More
This operator presence seat safety switch is a critical interlock component that prevents engine start and disables the PTO when the operator leaves the seat. It mounts with a right-angle snap-in design and features a single-post, 2-terminal, 2-position, normally open configuration. It is a direct aftermarket replacement for John Deere part number AM103119 (supersedes D38001) and Stens 430-413, and is cross-referenced across a wide range of lawn, garden, and commercial mowing equipment brands.
Specifications
- Mount Type: Right-angle snap-in
- Posts: Single post
- Terminals: 2
- Positions: 2
- Circuit: Normally open (N/O)
- Rating: 14VDC, 10A
Compatible Models
John Deere Compact Utility Tractors: 2025R, 2027R, 2032R, 2210, 2305, 2320, 2520, 2720, 3120, 3320, 3520, 3720, 4110, 4115, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4510, 4520, 4600, 4610, 4700, 4710, 4720, 5083E, 5093E, 5101E, 485A
John Deere Lawn Tractors: 107H, 92H, 240, 245, 260, 285, 320, 325, 335, 345, 415, 425, 445, 455, STX30, STX38 (Yellow Deck), X115R, X116R, X117R, X130R, X135R, X146R, X147R, X155R, X166R, X167R, X350R
John Deere ZTrak Zero-Turn Mowers: 717, 717A, 717E, 727, 727A, Z510A, Z520A, Z710A, Z720A, Z740R, Z810A, Z820A, Z830A, Z840A, Z850A, Z860A, Z915B, Z915E, Z920M, Z920R, Z925A, Z925M, Z930A, Z930M, Z930R, Z945M, Z950A, Z950M, Z950R, Z955M, Z955R, Z960A, Z960M, Z960R, Z970A, Z970R, Z994R, Z997R
John Deere Front Mowers: F510, F525
John Deere Walk-Behind Mowers: HD45, HD75, WH36A, WH48A, WH52A, WH61A
John Deere Fairway Mowers: 1550 TerrainCut, 1570 TerrainCut, 1580 TerrainCut
John Deere GT Series: GT242, GT262, GT275
John Deere LX Series: LX172, LX173, LX176, LX178, LX186, LX188
Ariens: 927037, 927043, 927045-924056, 927061, 927063, 927065, 927301-927308, 927310
AYP: Models using 160784, 532160784
Bobcat: Models using 4124009
Bush Hog: Models using 50048610
Husqvarna: IZ4821T, IZ6125T
Kubota: Models using K1122-62280, K1122-62282
Poulan: PP20H46A, PP24H50A
Scag: Cheetah, Cougar, Sabre Tooth Tiger, Tiger Cub, Tiger Cat, Turf Tiger, Wildcat walk-behinds
Simplicity: Models using 1704379, 1704379SM, 21704379, 21704379SM
Snapper: Models using 1-5707, 7015707, 7015707YP
Toro / Exmark: All commercial-grade walk-behinds with 14, 16, 18, 20 HP engines (cross-reference 82-2190)
Wright Mfg. Stander: 48-inch, 52-inch, 61-inch deck models
Great Dane: Chariot LX 48-inch, Super Surfer 48-inch Deck
Replaces Part Number(s):
430-413, AM103119, D38001, 52410002, 52410003, 1704379, 1704379SM, 21704379, 21704379SM, 532160784, 539107523, K1122-62280, K1122-62282, 82-2190, 1-5707, 1732004SM, 7015707, 7015707YP, 6440-04, 481638, 50048610, 160784, 4124009, 02754100, 03086600
Aftermarket Interchange Numbers
Stens 430-413, Delta 6440-04, Cub Cadet 725-3167 / 925-3167, Briggs & Stratton 1732004 / 1732004SM, Gravely 02754100, Dixie Chopper 902602, Dixon 539107523
New aftermarket replacement part - not remanufactured, not used.
