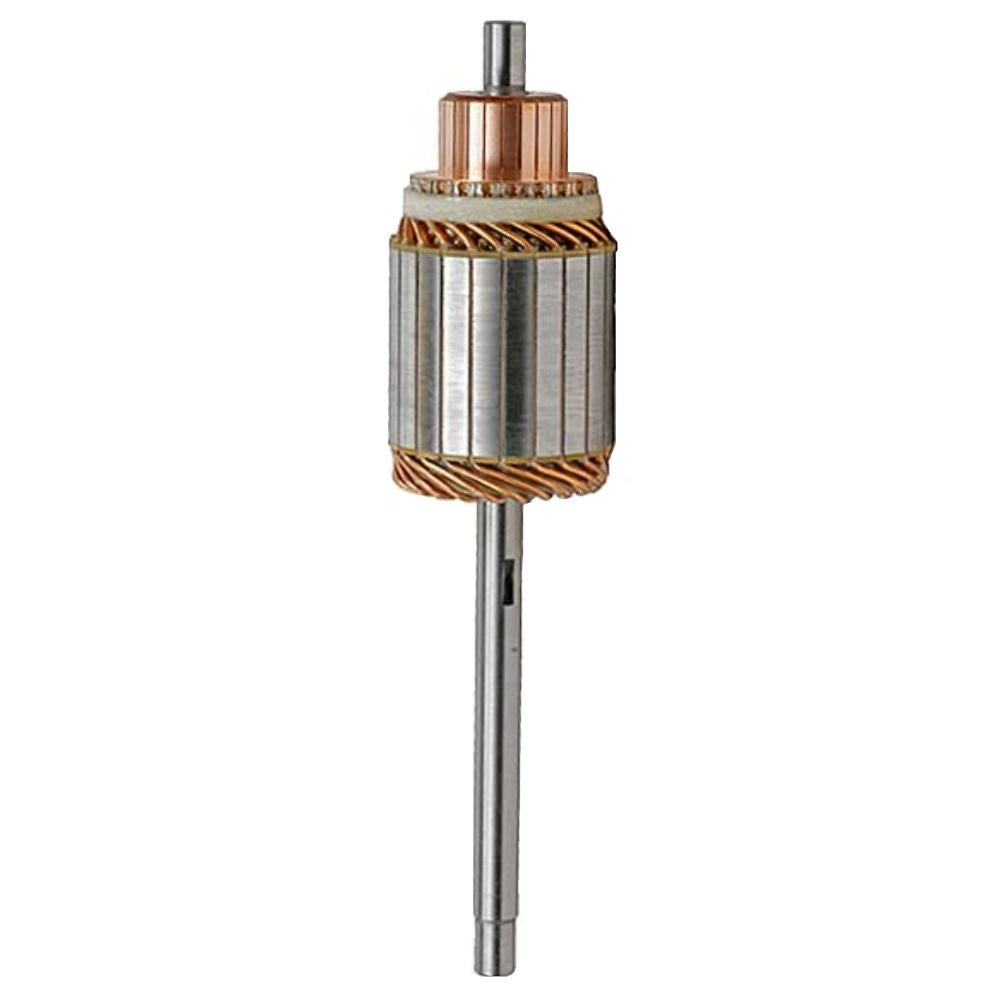

Starter Armature Fits John Deere Replaces ELS60-1017

Starter Armature Fits John Deere Replaces ELS60-1017

$132.00 CAD
$132.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Starter Armature

Tech Info:
 -Voltage: 6/12
 -Rotation: CW/CCW
 -Body OD: 2.937" (74.6mm)
 -CE OD: 0.563" (14.3mm)
 -DE OD: 0.563" (14.3mm)
 -Length: 12.469" (316.7mm)
 -CE to Bearing/Bushing Stop: 0.827" (21mm)
 -DE to Bearing/Bushing Stop: 7.165" (182mm)
 -Number of Comm Bars: 23
 -Lam Stack Thickness: 2.614" (66.4mm)
 -High Torque
 -Set Screw & Keyway on DE

Made to Fits John Deere:
 Tractor Models: 320, 330, 40, 420, 430, 430C, 440, 440, 440I, M, MC, MT, M69, M70, M69, M70
 Model Breaks: 320 (1956-1960, 2cyl Engine), 330 (1956-1960, 2cyl Engine), 40 (1953-1955, 2cyl Engine), 420 (1956-1960, 2cyl Engine), 430 (1957-1960, 2cyl Engine), 430C (1957-1960, 2cyl Engine), 440 (1957-1960, 2cyl Engine), 440 (1958-1960), 440I (1958-1960), M / MC / MT (1947-1953, All), M69 / M70 (1947-1953, All), M69 / M70 (1952-1958, All)

Models This Part Fits:

430C, M, MT, M70, 40, 440, 430, 440I, MC, 320, 420, 330, M69

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE

Reference Numbers:

12072, 12072-A, 1872505, 1873354, 2027
