Starter Armature Fits Allis Chalmers Replaces ELS60-1017

Starter Armature Fits Allis Chalmers Replaces ELS60-1017

$132.00 CAD
$132.00 CAD
Sale Sold out
Shipping calculated at checkout.

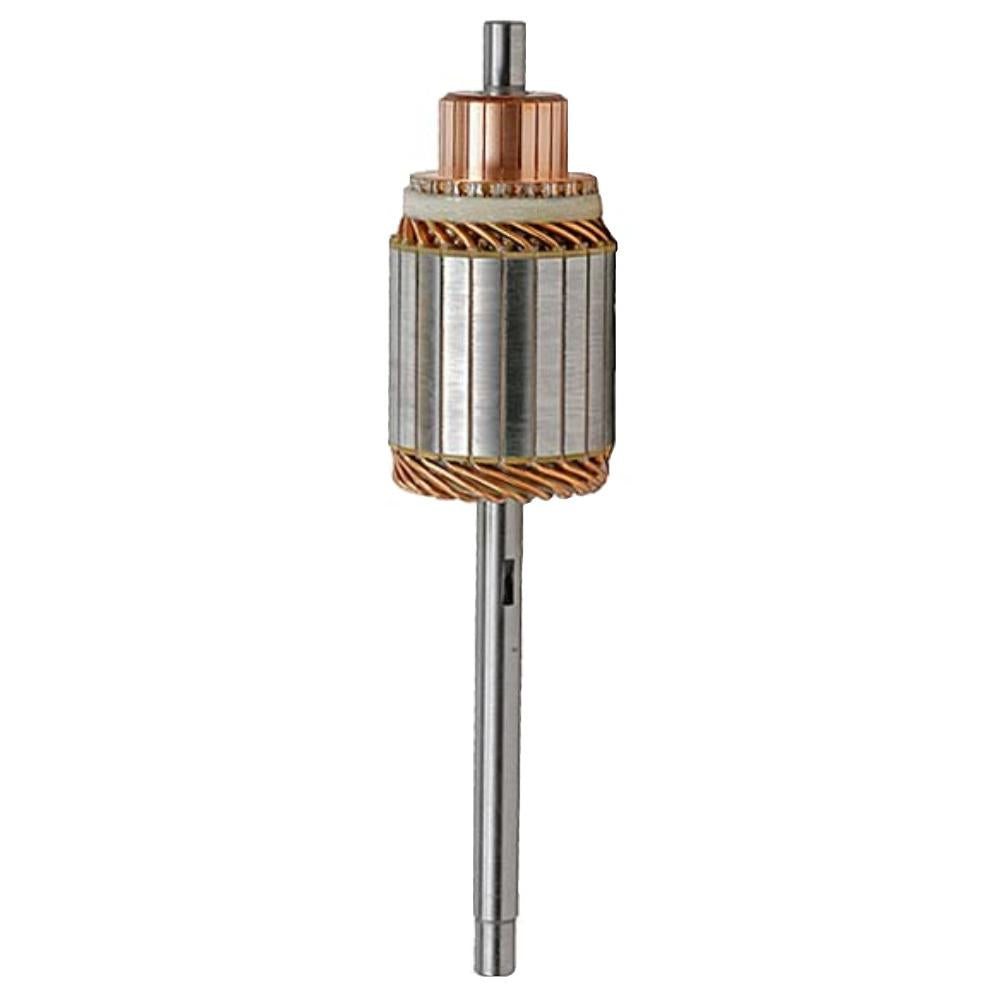

One New Aftermarket Starter Armature

Tech Info:
 -Voltage: 6/12
 -Rotation: CW/CCW
 -Body OD: 2.937" (74.6mm)
 -CE OD: 0.563" (14.3mm)
 -DE OD: 0.563" (14.3mm)
 -Length: 12.469" (316.7mm)
 -CE to Bearing/Bushing Stop: 0.827" (21mm)
 -DE to Bearing/Bushing Stop: 7.165" (182mm)
 -Number of Comm Bars: 23
 -Lam Stack Thickness: 2.614" (66.4mm)
 -High Torque
 -Set Screw & Keyway on DE

Made to Fits Allis Chalmers:
 Industrial/Construction Models: 149
 Model Breaks: 149 (1958-1959, Gas Engines)
 Tractor Models: B, B, B125, B15, C, CA, CA, D / DD Series, D10, D12, D14, IB, RC, Super 100, W-226, W-25, WC, WD-45, WD, WF
 Model Breaks: B (1938-1954, 4-125 Gas), B (1955-1957, 4-125 Gas), B125 (1955-1959, All), B15 (1950-1955, All), C (1940-1949, 4-125 Gas), CA (1950-1954, 4-125 Gas), CA (1955-1958, 4-125 Gas), D / DD Series (1949-1957, WD-45), D10 (1957-1959, 4-138 Gas), D12 (1959-1960, 4-138 Gas), D14 (1957-1958, 4-149 Gas), IB (1940-1951, 4cyl Engine), RC (1939-1941, 4cyl Engine), Super 100 (1955-1959, 4-226 Gas), W-226 (1955-1959, All), W-25 (1950-1955, All), WC (1934-1948, 4cyl Engine), WD-45 (1953-1957, 4-226 Gas), WD (1948-1953, 4-201 Gas), WF (1938-1951, 4-201 Gas)

Models This Part Fits:

B, C, WD, B125, D10, D / DD Series, Super 100, D12, WC, D14, W-226, IB, CA, RC, 149, W-25, B15, WD-45, WF

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE

Reference Numbers:

12072, 12072-A, 1872505, 1873354, 2027
