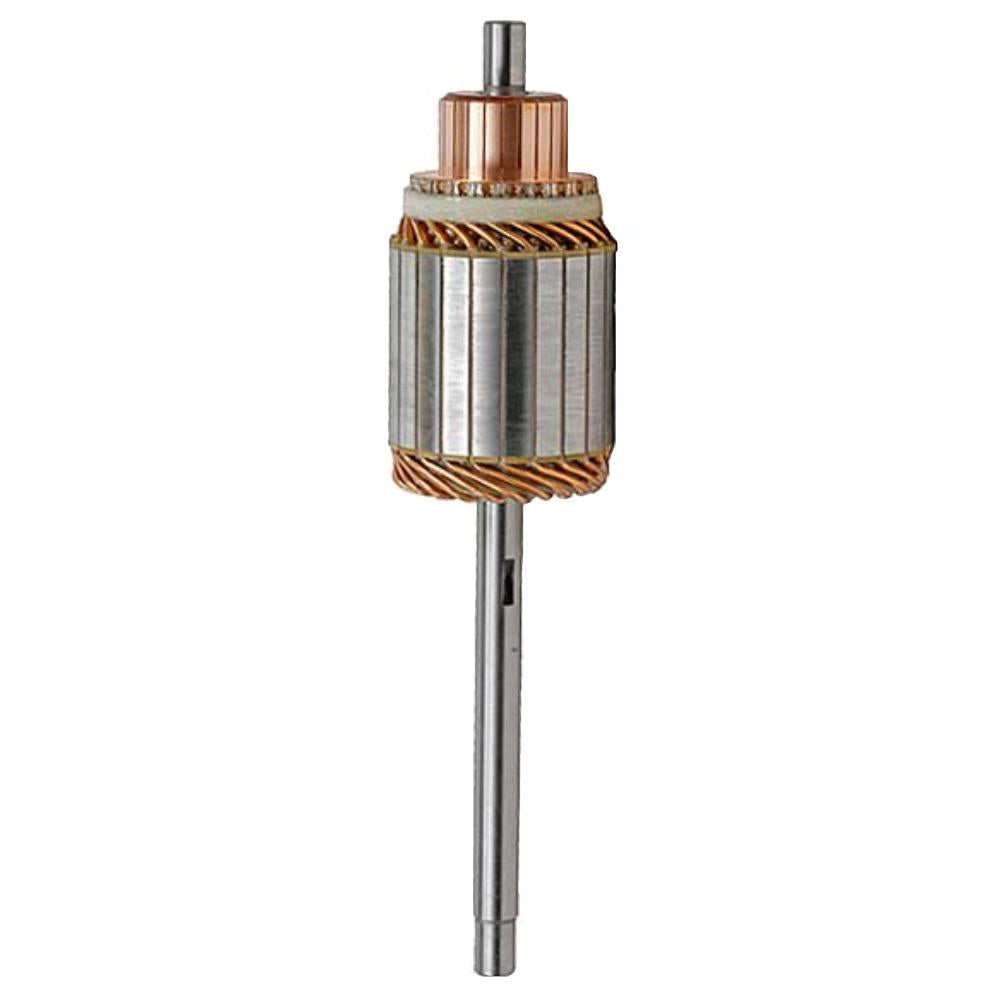

1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD45

Name: 1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD45
SKU: ELS60-1017
Price: 165.0 USD
Availability: InStock

1872505 Fits Delco Starter Armature 6/12 Volt Fits Allis Chalmers IB RC WC WD WD45

$165.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

New Aftermarket Replacement Fits Delco Starter Armature 6 or 12 Volt Fits Allis Chalmers B C CA B15 B125 1872505

Set Screw & Keyway on DE, Thick Body

Fits Allis Chalmers
B, C, CA, B15, B125, D14, IB, RC, WC, WD, WD45, & WF

Fits Delco # 1872505

Replaces the armature in the following units.
Fits Delco 1107006, 1107024, 1107025, 1107029, 1107030, 1107035, 1107036, 1107043, 1107044, 1107045, 1107046, 1107059, 1107064, 1107094, 1107096, 1107127, 1107162, 1107165, 1107200, 1107409, 1107423, 1107466, 1107472, 1107474, 1107820, 1107823, 1107824, 1107905, 1107951, 1107962, 1108036, 1108059, 1108072, 1108093, 1108099, 1108109, 1108162, 1108187, 323-95

Models This Part Fits:

430C, D10, 445, W-226, B, 430, 4 Star Super, 4000, 320, MT, WC, 206-4A, ZBU, 420, UNI ZAS, G-4, IB, WD-45, RC, 440, 335, 149, D7, WD, MC, M70, D / DD Series, W-25, 165-4A, C, B125, CA, D12, 206H-4B, D14, Super 100, ZBN, 440I, D8, 40, Jet Star, ZBE, 206H-4A, 12, WF, B15, 6000, 330, M, M69, 4 Star

Additional Information:

Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE
