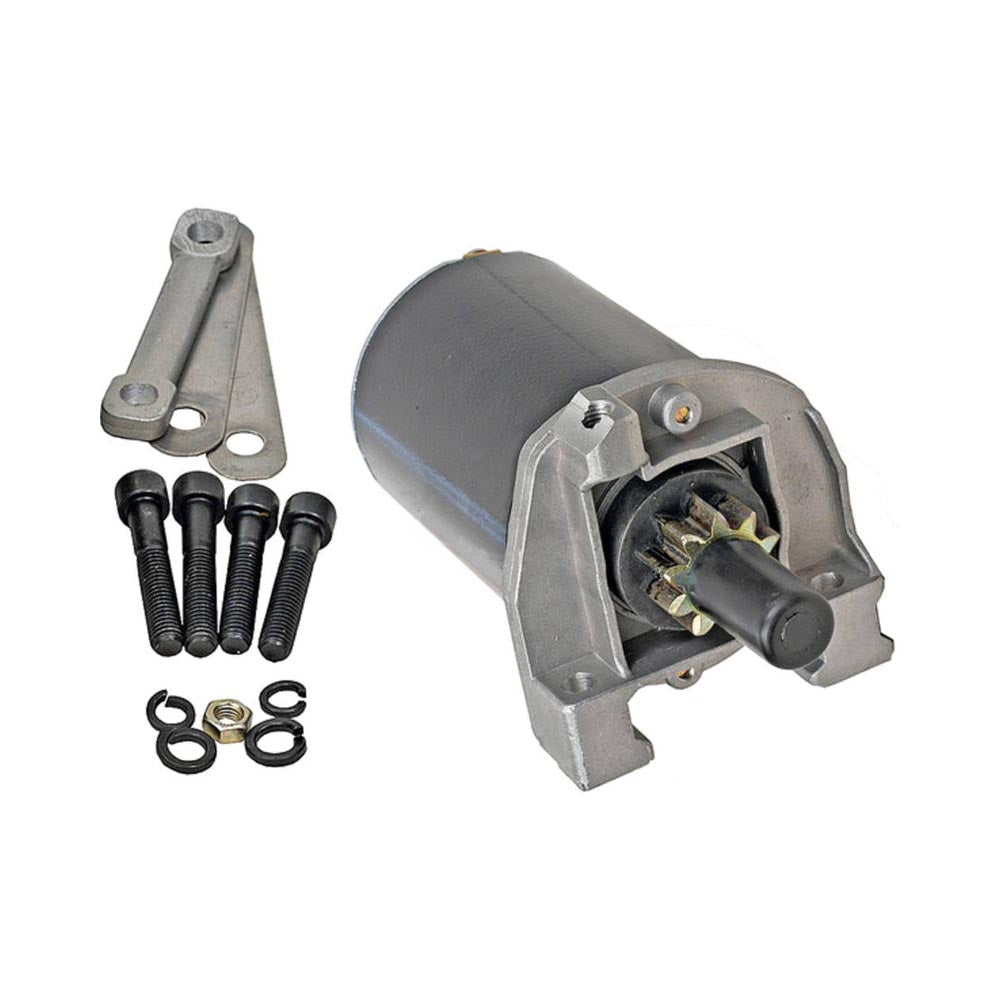

One New Aftermarket Replacement Starter Fits generac 0A7692 0D9230 0D92300ESV GN190-GN410, 6.5 15 HP Engine Generator
Models:
Fits generac Outdoor Power Equip.
ENGINES GN190
ENGINES GN191
ENGINES GN220 7.8HP
ENGINES GN320 11HP
ENGINES GN360 13HP
ENGINES GN410 15HP
Replaces:
Fits generac
021544, 0A7692, 0D9230, 0D92300ESV,
0D92300SRV, 21544, 87266, A7692, D9230
OEM(s): Fits Johnson Electric
Type: PMDD
Voltage: 12 Volts
Rotation: CCW
Teeth/Splines: 10 Teeth/Splines
Pinion/Splines OD: 32.1mm / 1.264in
Mounting Hole 1: 8mm ID Unthreaded
Mounting Hole 2: 8mm ID Unthreaded
Mounting Hole 3: M8-1.25 ID Threaded
Approximate Weight: 5.6 lbs / 2.55 kg
Notes:
3.94" / 100mm Field Fits Case Length,
The Upper Mounting Hole is Threaded and the Mounting Hole Surface is Angled at 45 Degrees,

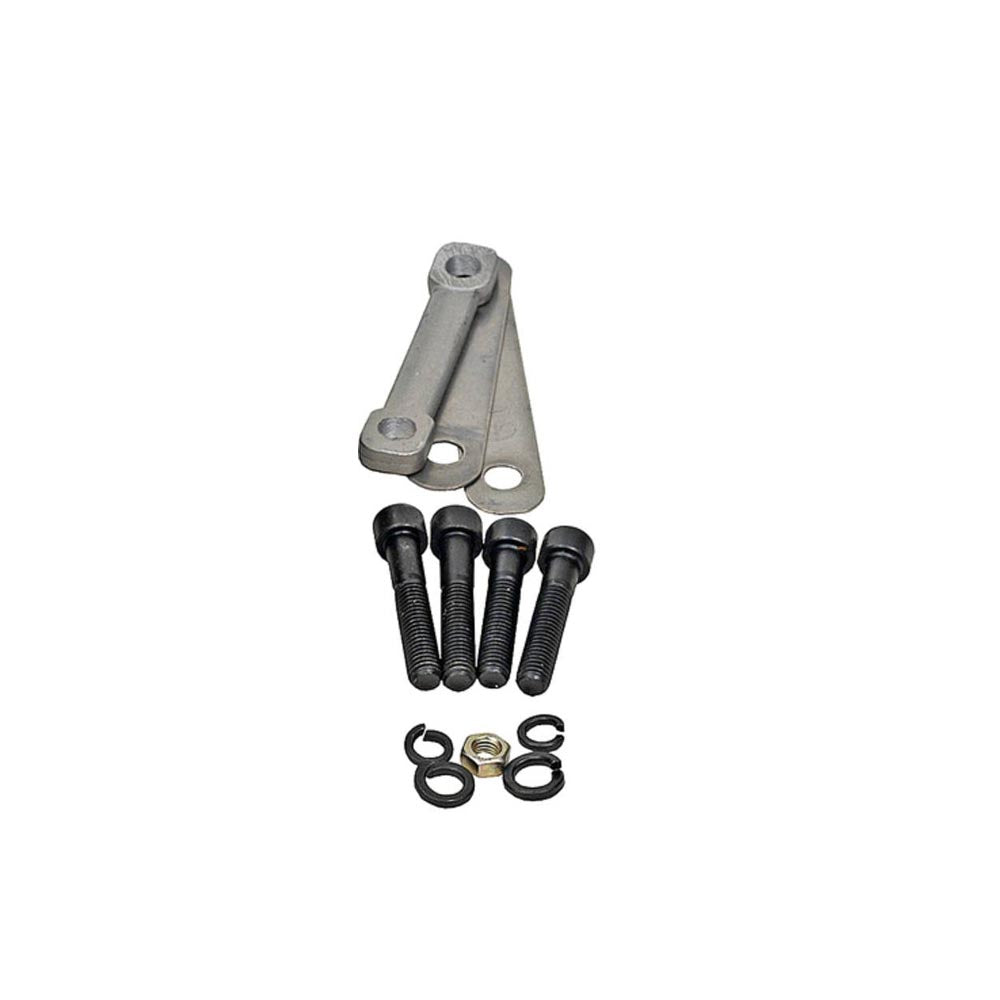

Includes Mounting Kit
Item Weight -- 6.6 pounds
Exterior -- Painted/Metal
