Starter fits Tecumseh Snowblowers 33290 33290A 33290C 33290D 33290E 33290F 33517

Starter fits Tecumseh Snowblowers 33290 33290A 33290C 33290D 33290E 33290F 33517

$283.00 CAD
$283.00 CAD
Sale Sold out
Shipping calculated at checkout.

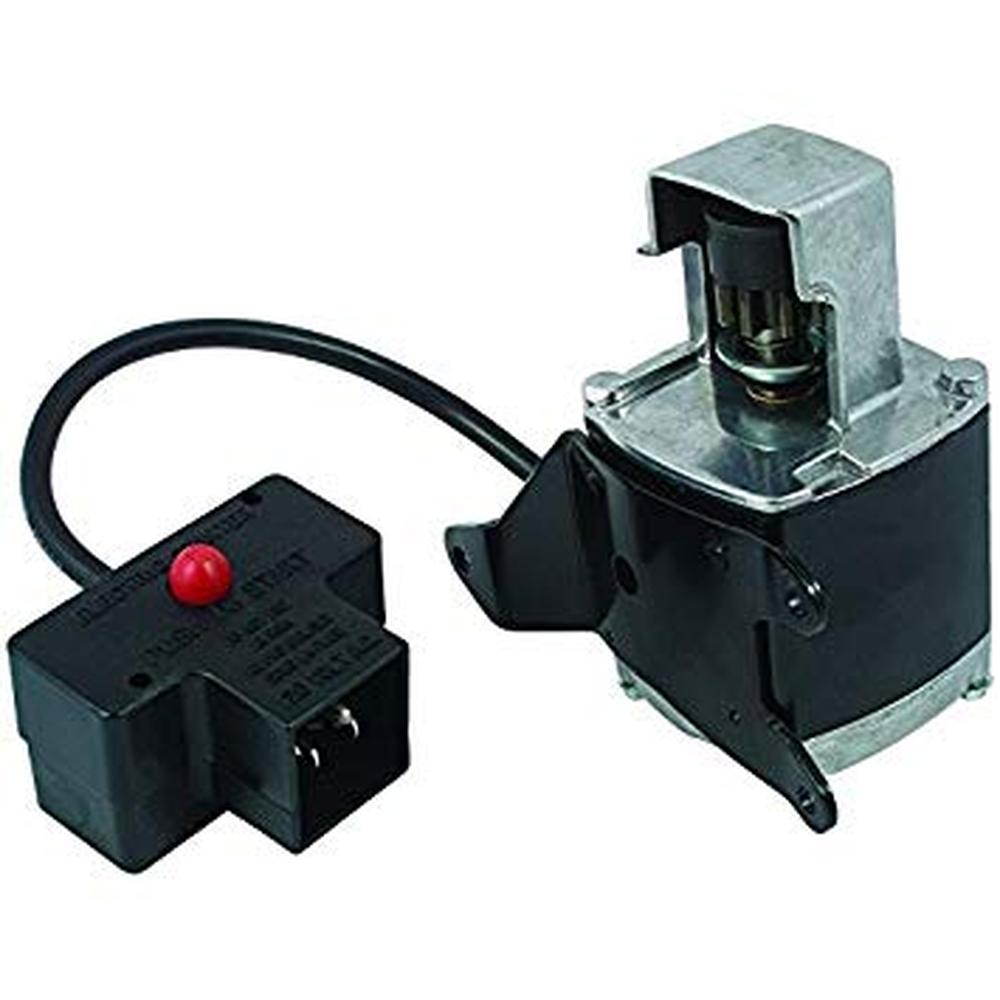

One New Aftermarket Replacement Electric Starter for Tecumseh Snow King Engines / Snowblowers

This 120-volt electric starter replaces the original Tecumseh plug-in starter motor on snowblowers equipped with Tecumseh Snow King small engines. The starter engages the ring gear via a 9-tooth pinion gear with counterclockwise (CCW) rotation. Note: the engine must have a ring gear installed to accept this starter.

Specifications

  • Voltage: 120 Volts (AC plug-in)
  • Rotation: CCW (Counterclockwise)
  • Pinion Teeth: 9
  • Gear OD: 26.6mm (1.047 in.)
  • Mounting Hole 1: 6.75mm ID - Unthreaded
  • Mounting Hole 2: 8mm ID - Unthreaded
  • Mounting Hole 3: 6.75mm ID - Unthreaded
  • Approximate Weight: 4.72 lbs / 2.15 kg

Compatible Models

Tecumseh Snow King Engine Series (found on snowblowers): H30, H35, H40, H50, HS40, HS50, HSK30, HSK40, HSSK40, HSSK50, HSSK55, HXL35, LH195, OH195, OHH50, OHH55, OHH60, OHSK50, OHSK55, OHSK60, OHSK65, OHSK70

Replaces Part Number(s):

33290, 33290A, 33290B, 33290C, 33290D, 33290E, 33290F, 33517, ELS60-0762, 71-35-5897, 91-35-1020, 106-322, STC0015

Aftermarket Interchange Numbers

Arrowhead: STC0015 | Ariens: 72200600 | Barsanco: 710-005 | Cargo: 112569 | Dixie: MS-6015 | EMS: TC-111N | J&N: 410-22032 | Lester: 5897 | Minnpar: 57-5123 | MTD: 390-985 | PIC: 106-322 | Rotary: 10975 | WAI: 2-2267, 5897N | Wilson HD: 91-35-1020 | Wilson Small Engine: 71-35-5897

New aftermarket replacement part - not remanufactured, not used.

Reference Numbers:

33290,33290A,33290B,33290C,33290D,33290E, 71-35-5897,91-35-1020, 106-322,STC0015
