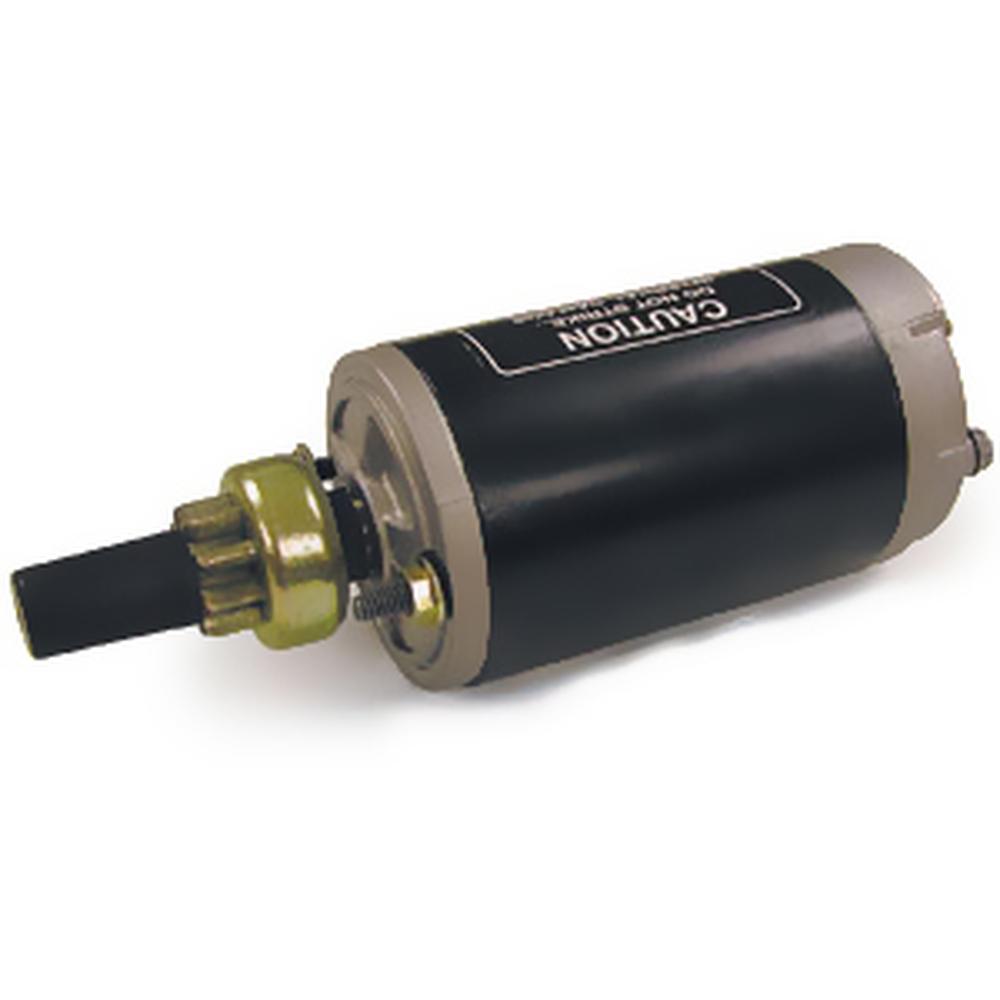

Starter Fits John Deere AM38013 AM121406 317 Kohler KT1705 17 HP Lawn Tractor
Starter Fits John Deere AM38013 AM121406 317 Kohler KT1705 17 HP Lawn Tractor
Regular price
$255.00 CAD
Regular price
Sale price
$255.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Starter made to fir Fits John Deere AM38013 AM121406 317 Kohler KT1705 17 HP Lawn Tractor
Fits John Deere Outdoor Power Equip.
1979 317 Kohler 17HP
1980 317 Kohler 17HP
1981 317 Kohler 17HP
1982 317 Kohler 17HP
KOHLER Outdoor Power Equip.
ENGINES Air Cooled KT-18
Replaces:
Fits John Deere
AM38013
KOHLER
52-098-04, 52-098-11
UNITED TECHNOLOGIES
1819140-M030SM, SM18191,
5666340-M030SM, SM56663
OEM(s): Kohler, Johnson Electric
Type: PMDD
Voltage: 12 Volts
Rotation: CCW
Teeth/Splines: 9 Teeth/Splines
Pinion/Splines OD: 29mm / 1.142in
Approximate Weight: 5.575 lbs / 2.53 kg
Notes:
4"/101.6mm Long Field Fits Case,
(2) 1/4-28 x 1.1" Bolts for Mounting
