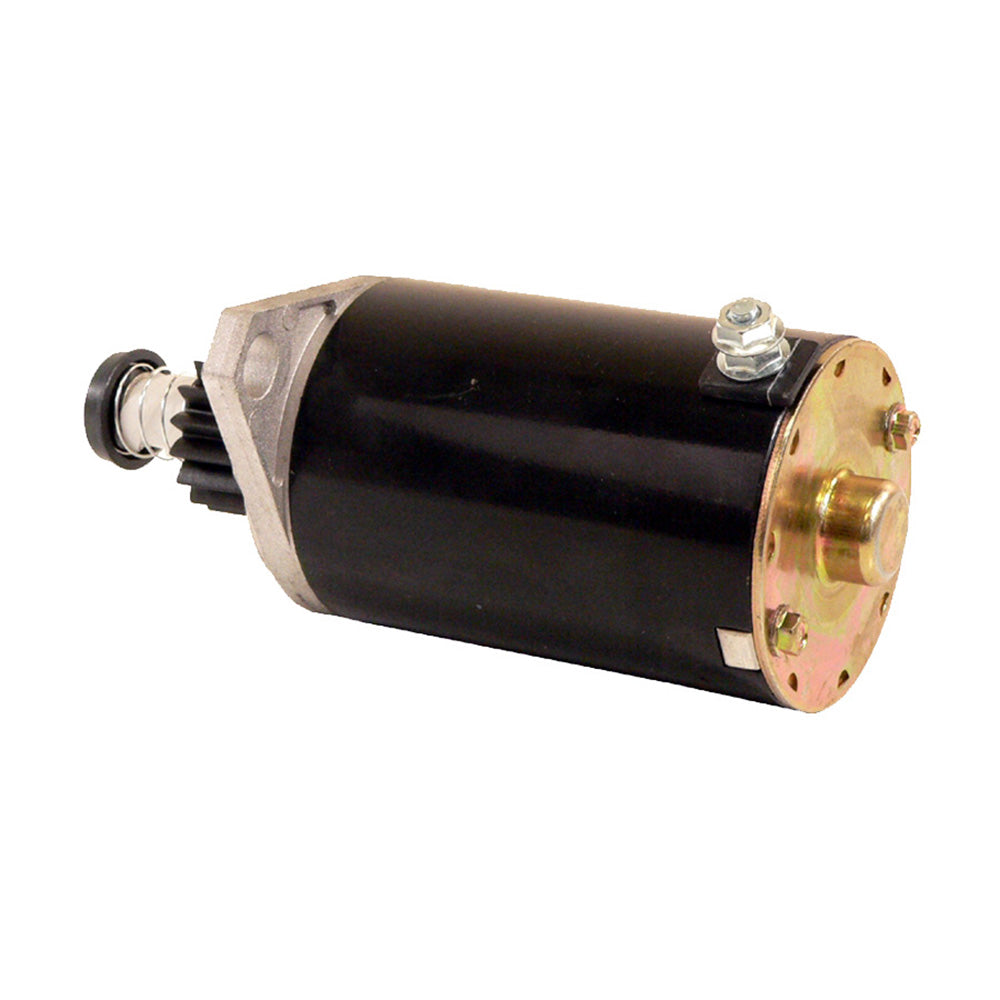

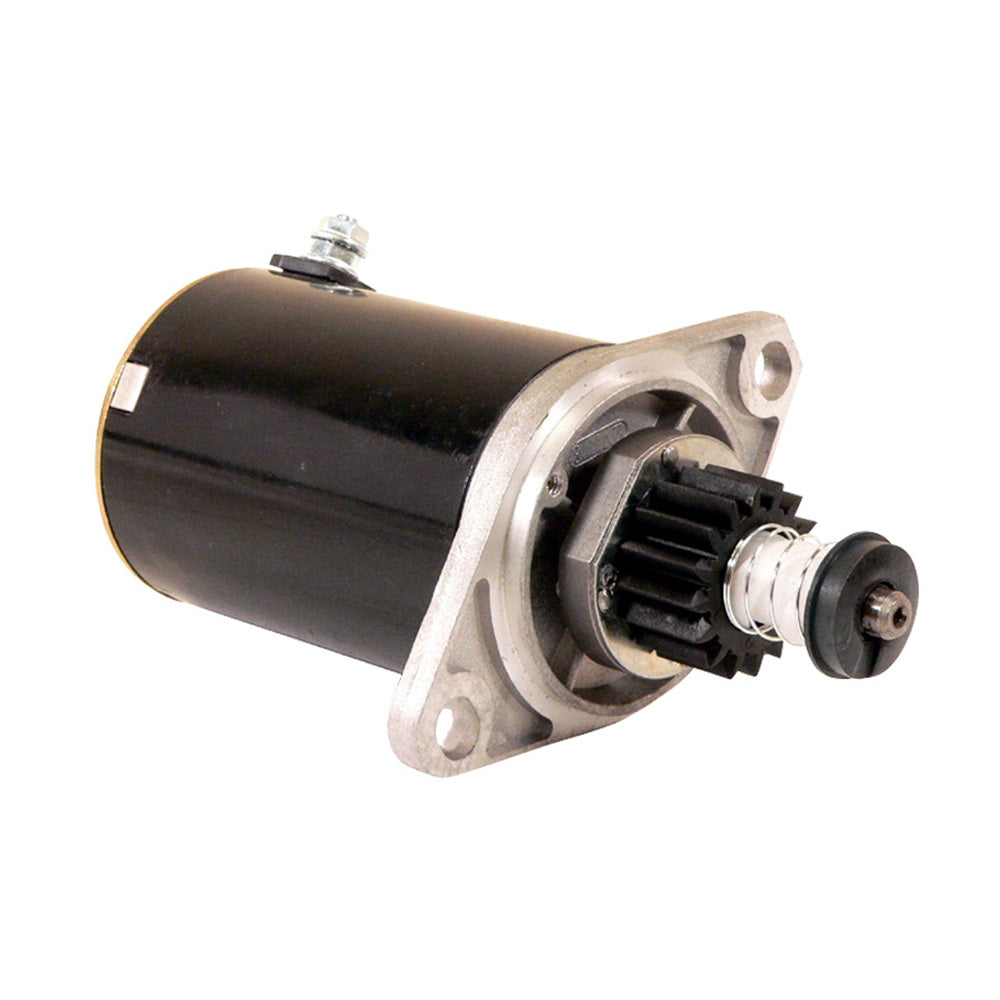

191-1630 191-2132 Onan Starter For Several Models
191-1630 191-2132 Onan Starter For Several Models
Couldn't load pickup availability
One New Aftermarket Replacement Starter for Onan (Cummins Onan) RV Generator and Engine Applications
This aftermarket replacement starter motor fits Onan BGD, BGDL, MCE, NHD, NHDL, NHE, NHEL, and NHM series engines used in RV generators, marine, outdoor power equipment, and agricultural and industrial applications. It is a direct-fit PMDD-type 12-volt starter with a 16-tooth drive gear and counter-clockwise (CCW) rotation, designed to replace the original Onan 191-1630 and 191-2132 units.
Specifications
- Voltage: 12V
- Rotation: CCW (Counter-Clockwise)
- Starter Type: PMDD
- Teeth/Splines: 16
- Pinion OD: 40.6mm / 1.598in
- Field Fits Case Length: 4.38in / 111.2mm
- Mounting Holes: 11.0mm ID, Unthreaded, Oblong
- Approximate Weight: 5.645 lbs / 2.57 kg
- Positive stud on side of field Fits Case
Compatible Models
Onan Engine Series (Marine, RV, OPE, Ag & Industrial): BGD, BGDL, MCE, NHD, NHDL, NHE, NHEL, NHM (1975 and up)
Onan RV Generator Series: Emerald RV Gensets, Marquis series, 4.5BGD commercial units
Replaces Part Number(s):
ELS60-0030, 191-1630, 191-2132
Aftermarket Interchange Numbers
Onan: 191-1667, 191-2158, 191-2416, 0191-2416 | Johnson Electric: 6013840, 6019440, 6091740, SM60138, SM60194, SM60917 | United Technologies: 6019440-M030SM, SM60194 | Arrowhead / J&N: 410-21025, SAB0033 | Lester: 5706, 5707 | WAI: 2-2244, 2-2244-UT | Wilson: 91-35-1007 | Wilson Small Engine: 71-35-5706 | Minnpar: 57-2195 | Cargo: 112832 | Andre Niermann: 011630, 11630 | Dixie: MS-684, MS-687 | Dixie New: 206-03103, 206-04104 | PIC: 106-201, 106-203 | RCP: ST-5706
New aftermarket replacement part - not remanufactured, not used.
