CCW 12V Starter for Several Tecumseh Models 206-03111 32817 33835

One New Aftermarket Replacement Starter for Tecumseh Small Engines

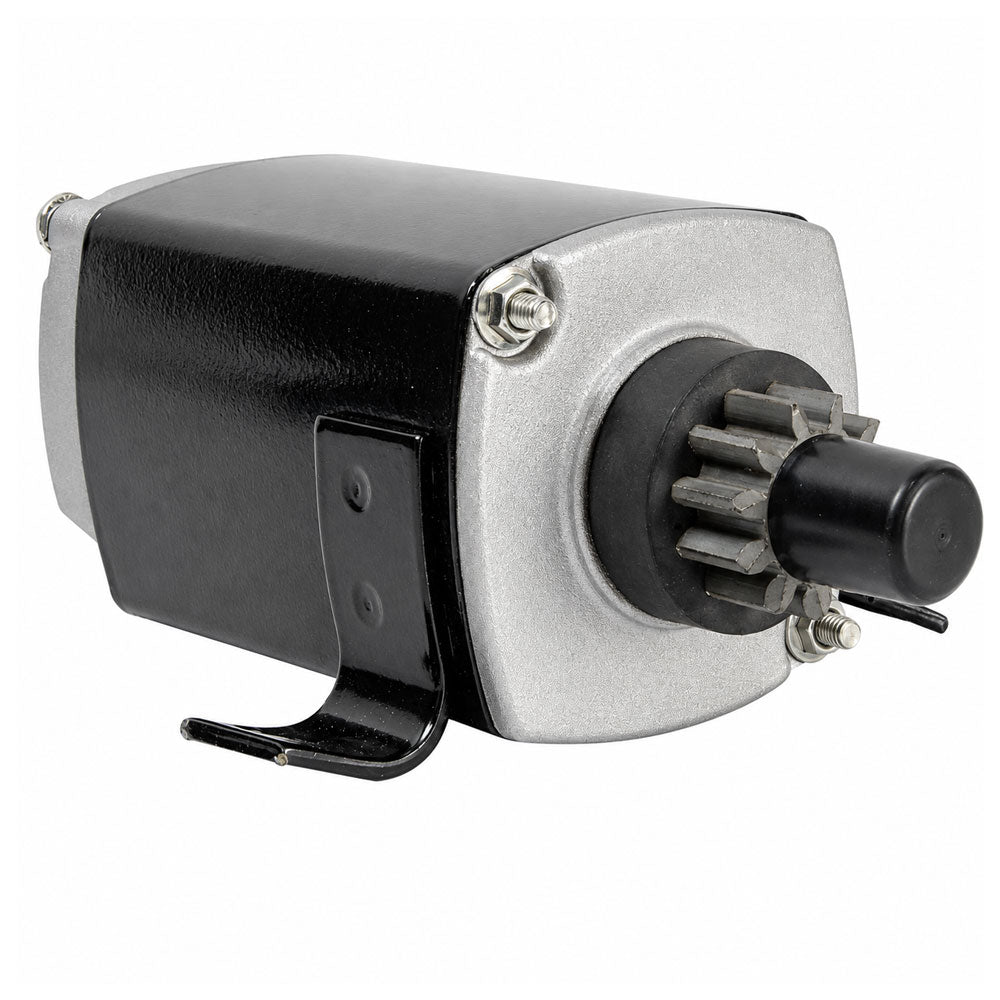

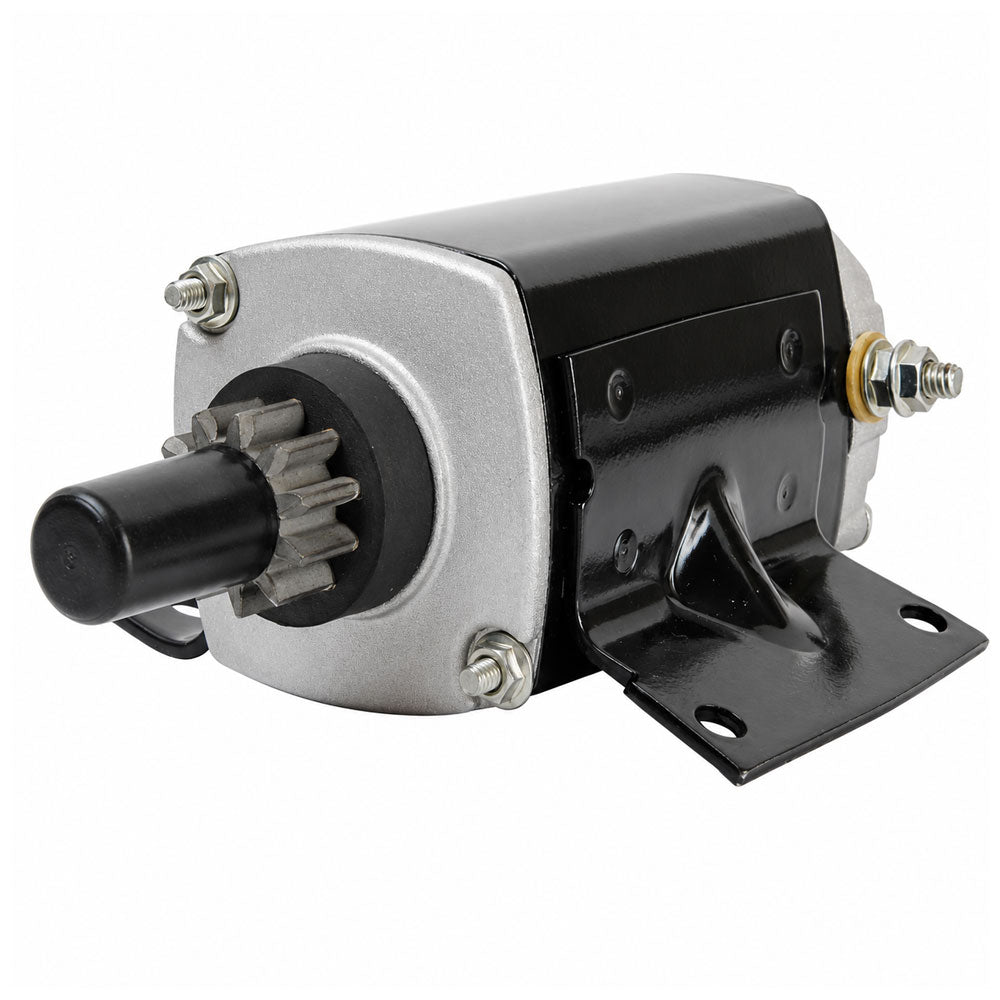

This 12-volt counterclockwise (CCW) PMDD electric starter motor is a direct-fit aftermarket replacement for Tecumseh HH and OH series small engines commonly found on lawn tractors, garden tractors, and compact utility equipment. It engages the flywheel ring gear via an 11-tooth pinion drive to crank the engine.

Specifications

• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Type: PMDD
• Number of Teeth: 11
• Pinion/Gear OD: 32mm (1.260 in.)
• Mounting Hole 1: 8.1mm ID Unthreaded
• Mounting Hole 2: 8.1mm ID Unthreaded (Oblong 8.1mm x 9.3mm)
• Mounting Hole 3: 9.1mm ID Unthreaded
• Field Fits Case Length: 4.07 in. (103.4mm)
• Shaft Diameter: 0.398 in. (10.1mm)
• Approximate Weight: 6.28 lbs (2.85 kg)

Compatible Models

Tecumseh Engines: HH100, HH140, HH150, HH160, OH120, OH140, OH160, OH180, VH100

Fits Case / Fits Case IH (Fits International Harvester): Uni-Loader 1816 (Tecumseh OH160, 1973-1977), Uni-Loader 1816B (Tecumseh OH160, 1977-1981)

Fits John Deere: 112 (Tecumseh 10H, 1968-1971)

Fits Massey Ferguson: MF-10 (Tecumseh HH-100, 1975-1976), MF-12 (Tecumseh HH-100, 1975-1976)

Replaces Part Number(s):

206-03111, 206-03111-A, 32817, 33835, ELS60-0811

Aftermarket Interchange Numbers

Fits Briggs and Stratton: 3835, 5149 | Fits John Deere: AM32393 | Tecumseh: 32510 | Fits Case: D59581, D61880

New aftermarket replacement part - not remanufactured, not used.
