6 Volt Voltage Regulator Fits IH Fits FARMALL Fits Cub Loboy C H M I6 W4 350 100
6 Volt Voltage Regulator Fits IH Fits FARMALL Fits Cub Loboy C H M I6 W4 350 100
Couldn't load pickup availability

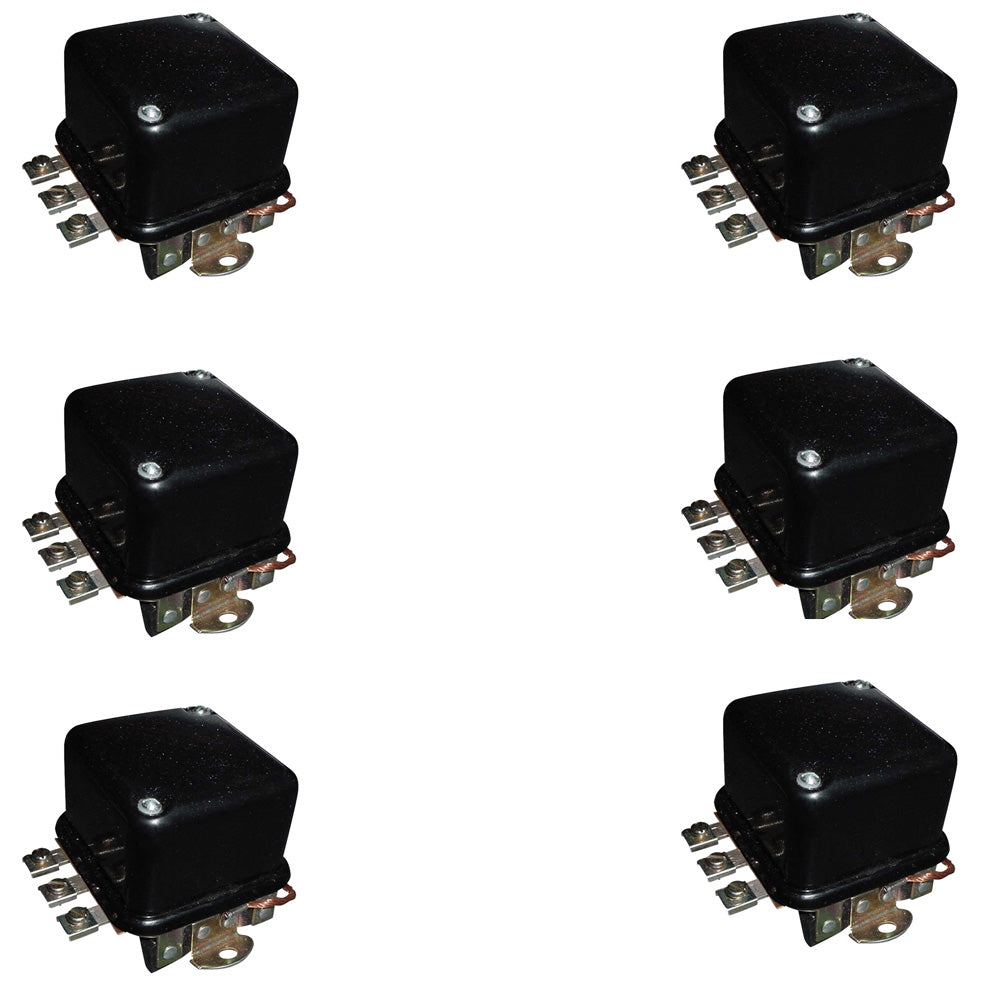

One New Aftermarket Replacement 6 Volt Voltage Regulator Fits International Harvester (IH) / Fits FARMALL Tractors
This external voltage regulator is a direct aftermarket replacement Fits International Harvester (IH) and Fits FARMALL tractors equipped with 6-volt Fits Delco generator systems. Designed for A-circuit, positive-ground configurations, it regulates charging output at approximately 7.1 volts and delivers 7-9 output amps for stable battery performance. The flat-base unit mounts externally and grounds through the base, with four terminals: L (Lights), BAT (Battery), F (Field), and GEN (Generator).
Specifications
- System Voltage: 6 Volt (Positive Ground)
- Circuit Type: A-Circuit (Fits Delco Generator)
- Voltage Set Point: 7.1V nominal (7-9 output amps)
- Mount Type: Flat-Base, External
- Terminals: L (Lights), BAT (Battery), F (Field), GEN (Generator) - ground via base
- Bolt Hole Spacing: 3-3/4" center to center
- Width Terminal to Terminal: 4-3/8"
- Base Cover: 3-1/4" x 3-1/4"
- Top Cover: 3" x 3"
- Height: 2-3/4"
Compatible Models
Fits International Harvester (IH) / Fits FARMALL Tractors: C, Fits Cub, Fits Cub Lo-Boy (Will NOT Fits Cub Lo-Boy 154, 184, or 185), H, I4, I6, I9, M, MD, O4, Super A, Super C, Super H, Super M, Super MTA, W4, W6, W9, WD6, WD9, WR9, 100, 130, 140 (with generator), 200, 230, 240 (with generator), 300, 330, 340, 350, 400, 450
Replaces Part Number(s):
121578C1, 1700-0572, VR1814
Aftermarket Interchange Numbers
354234R91, 360898R1, 376121R91, Fits Delco 1116807, 1116816, 1118291, 1118308, 1118780, 1118982, 1119575, D645, D657, Prestolite 8-291, GRX-291, Fits Allis-Chalmers 70228365
New aftermarket replacement part - not remanufactured, not used.
