Cub Cadet / MTD 12-Volt Relay, 725-1648
This is the 12-volt, 5-pin relay used across MTD-built outdoor power equipment, including Cub Cadet and Troy-Bilt machines. It replaces factory part numbers 725-1648, 925-1648, and 925-1648A. It is a relay, not a PTO switch or clutch, so it is the small plug-in cube that switches a heavier circuit on and off.
Specs

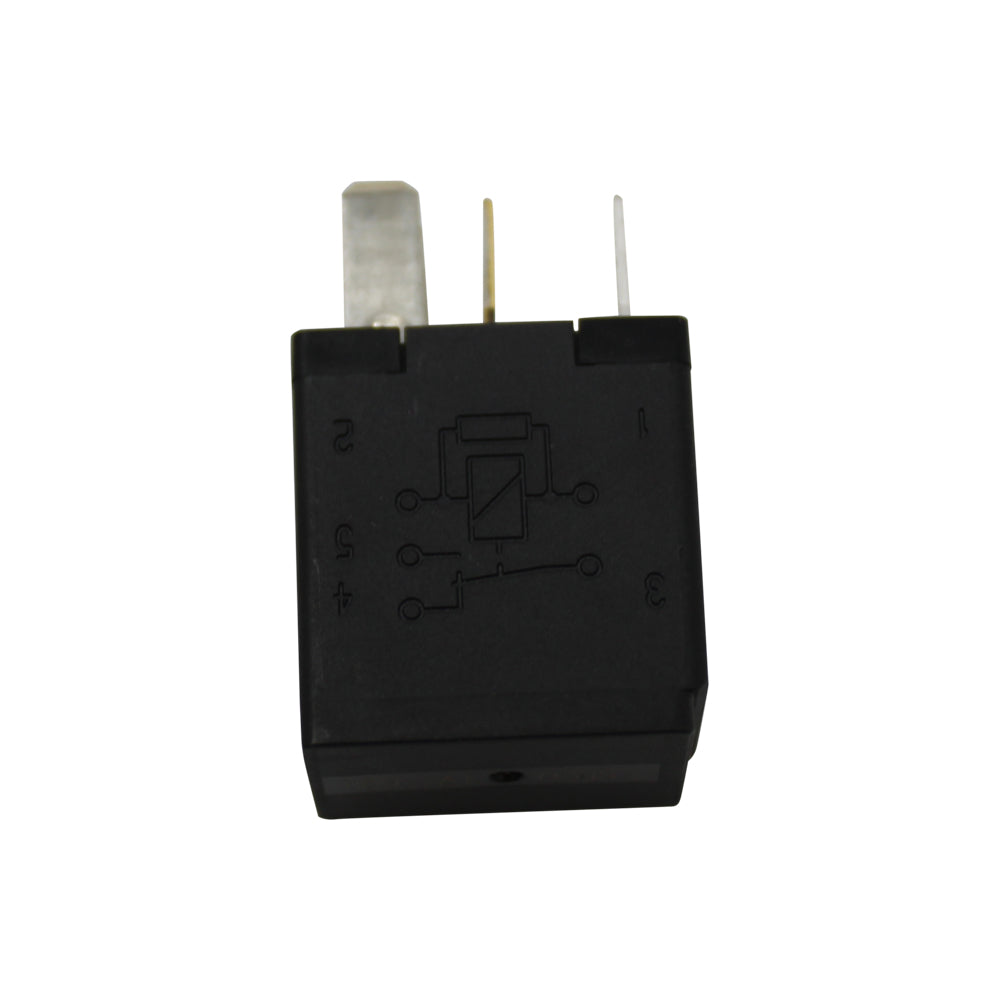

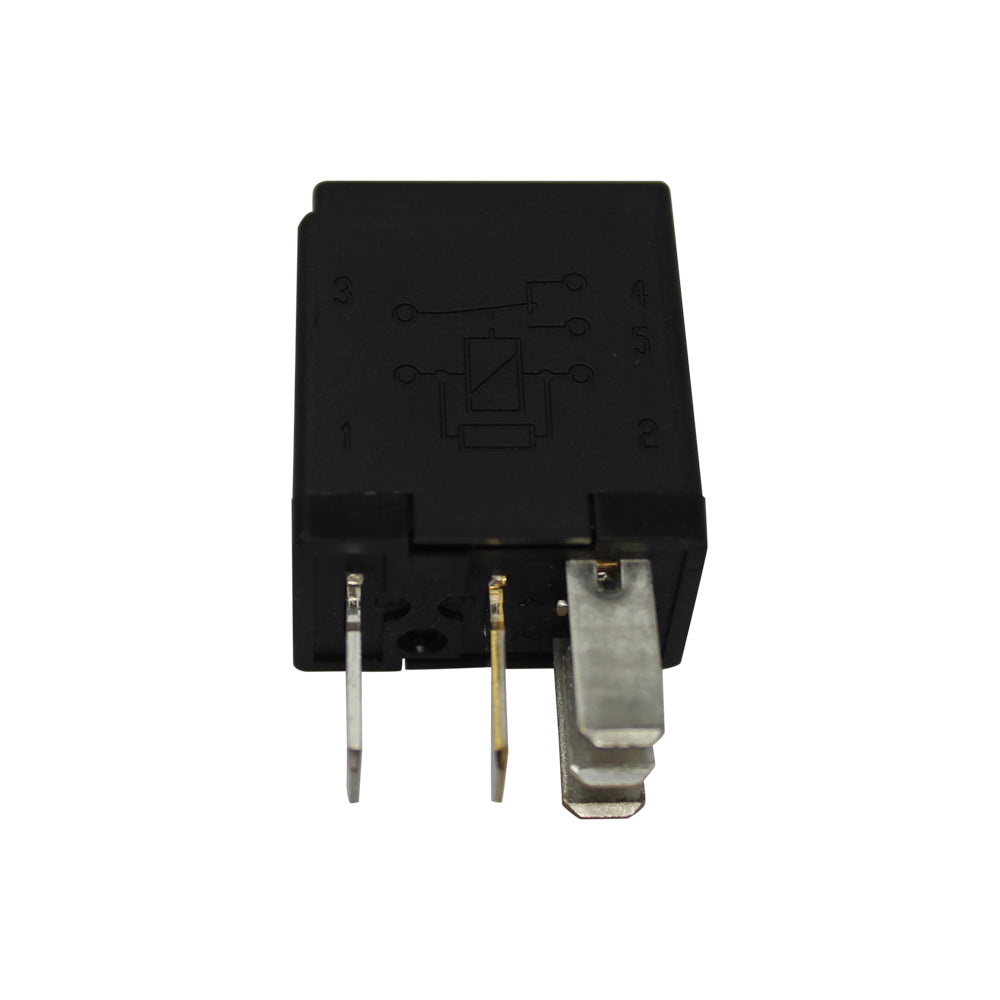

Standard ISO mini relay. Single-pole double-throw (SPDT) changeover with a 12V coil and contacts rated 30 amp normally open and 20 amp normally closed. Five blade terminals numbered 30, 85, 86, 87, and 87a.
Fits
Verified on Cub Cadet 3184, 3185, 3186, 3205, 3206, 3235, and 3240 garden tractors, 465 and 466 utility vehicles, XT1-LT 42 and XT1-LT 46 lawn tractors, and Troy-Bilt Super Bronco lawn tractors, along with other MTD-built models that use the 5-pin relay. Confirm your original relay has five blade terminals and carries the 725-1648 or 925-1648 number before ordering.
Easy Replacement
The relay plugs straight into the factory socket with no cutting or splicing. Pull the old unit, push the new one into place, and the circuit is restored.
