E1ADDN6055E 81710303 87295254 New STD Liner Fits Fordson NH Tractor Super Major

E1ADDN6055E 81710303 87295254 New STD Liner Fits Fordson NH Tractor Super Major

$21.00 CAD
$21.00 CAD
Sale Sold out
Shipping calculated at checkout.

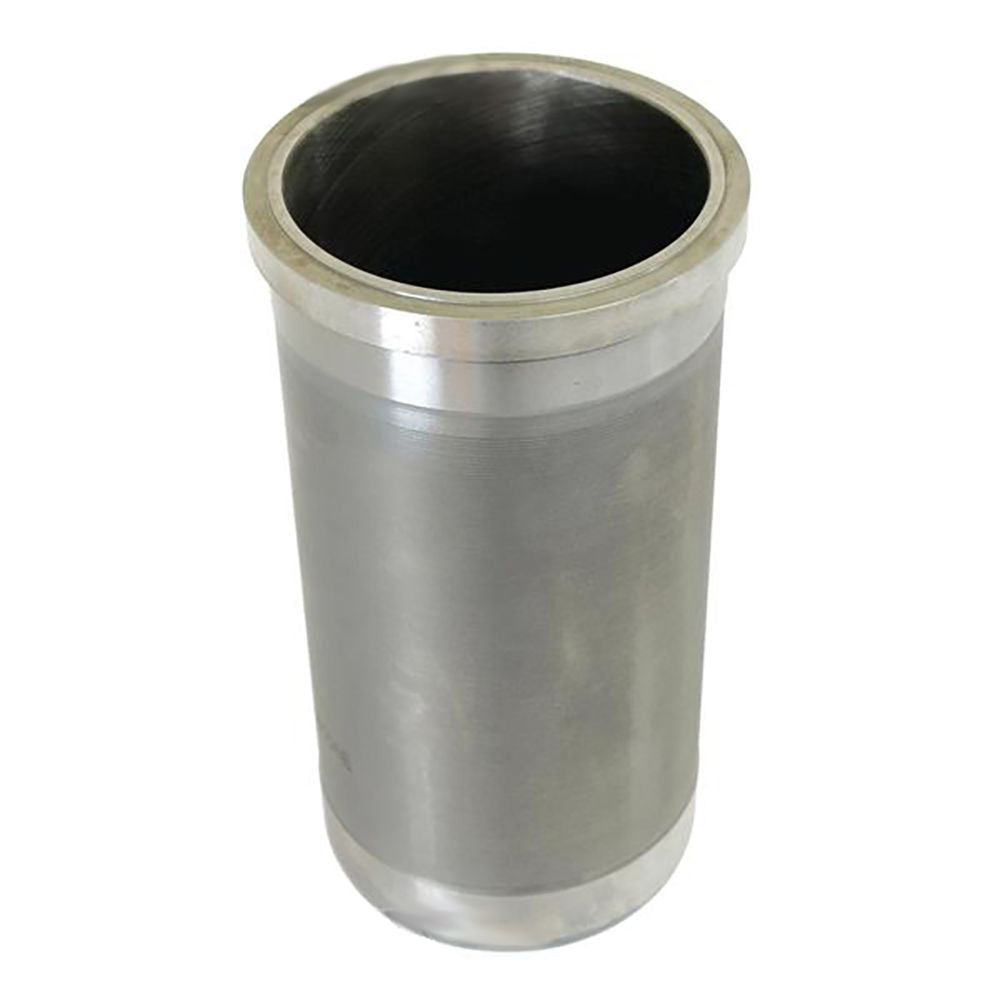

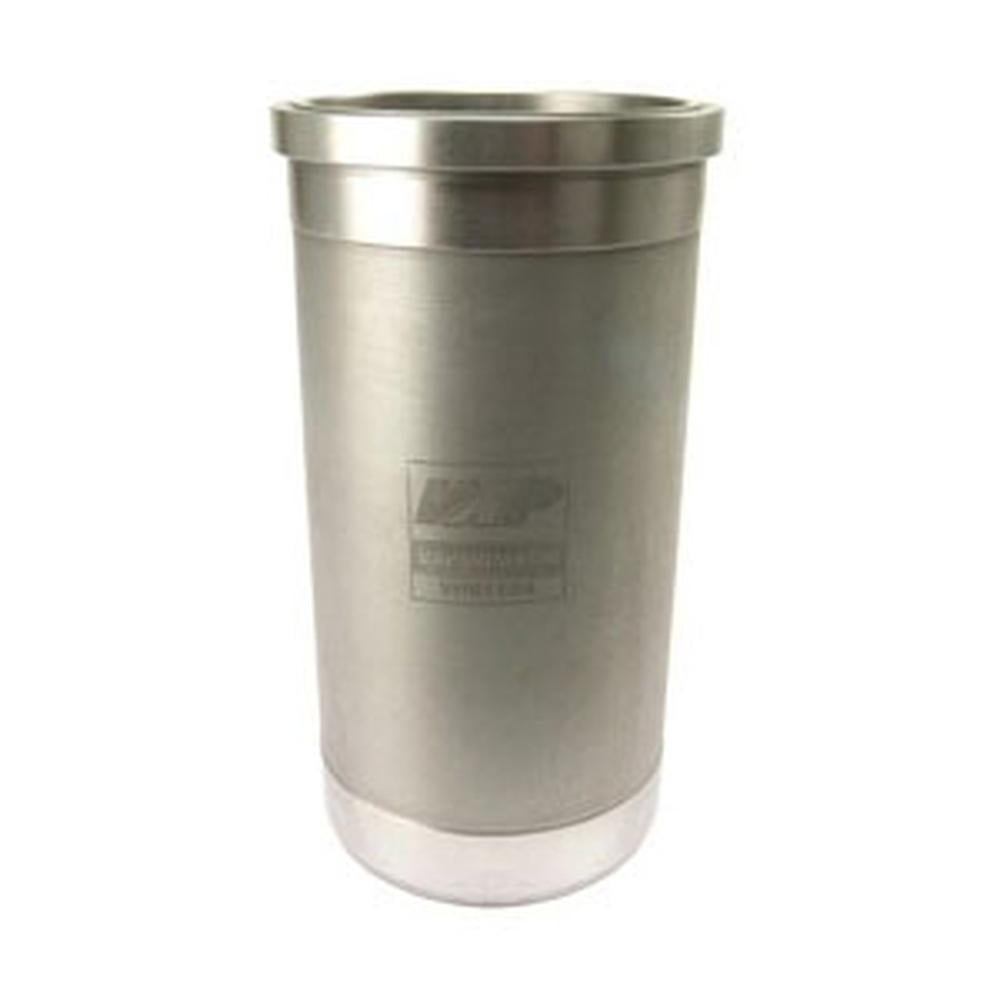

One New Aftermarket Replacement Standard Cylinder Liner for Fordson (Fits Ford New Holland) Major, Power Major, and Super Major Tractors

This standard wet-type cylinder sleeve is a direct replacement for the factory liner in the Fordson Major series 4-cylinder diesel engine. The E1ADDN6055E is the twin O-ring liner used in Power Major and Super Major tractors built from 1961 onward. Liner seals are not included -- for the upper sealing ring use 192355 and for the lower sealing ring use 192356. Sold individually per cylinder.

Specifications

  • Bore Diameter: 99.924mm (3.936")
  • Outside Diameter: 110.820mm
  • Overall Height: 222.770mm
  • Flange Diameter: 119.583mm
  • Flange Width: 11.176mm
  • Sleeve Type: Wet, Twin O-Ring

Compatible Models

Fordson / Fits Ford New Holland: Major, Power Major, Super Major

Replaces Part Number(s):

E1ADDN6055E, DDN6055E, 81710303, 87295254

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

POWER MAJOR, MAJOR, SUPER MAJOR

Additional Information:

99.924MM Bore Diameter 110.820MM Outside Diameter 222.770MM Overall Height 119.583MM Flange Diameter 11.176MM Flange Width Wet Type Sleeve

Reference Numbers:

E1ADDN6055E, 87295254, DDN6055E, 81710303
