Driveline 4600331 fits Kuhn Gmd600 Gmd700
Driveline 4600331 fits Kuhn Gmd600 Gmd700
Couldn't load pickup availability
One New Aftermarket Replacement PTO Driveline for Kuhn Disc Mowers (GMD600 / GMD700)
This aftermarket PTO driveline replaces Kuhn OEM part number 4600331 and is designed for use on Kuhn GMD600 and GMD700 disc mowers. Featuring quick disconnect (QD) yokes and a 100 Series, Size 5 construction, this is a complete driveline replacement -- components from the original will not interchange with this unit. Note: it may be necessary to cut this driveline to length; verify sufficient overlap of drive tubes exists in all working positions before use. This driveline does not include an overrunning clutch.
Specifications
- Series: 100, Size 5
- Rating: Category 4 (47 hp @ 540 rpm)

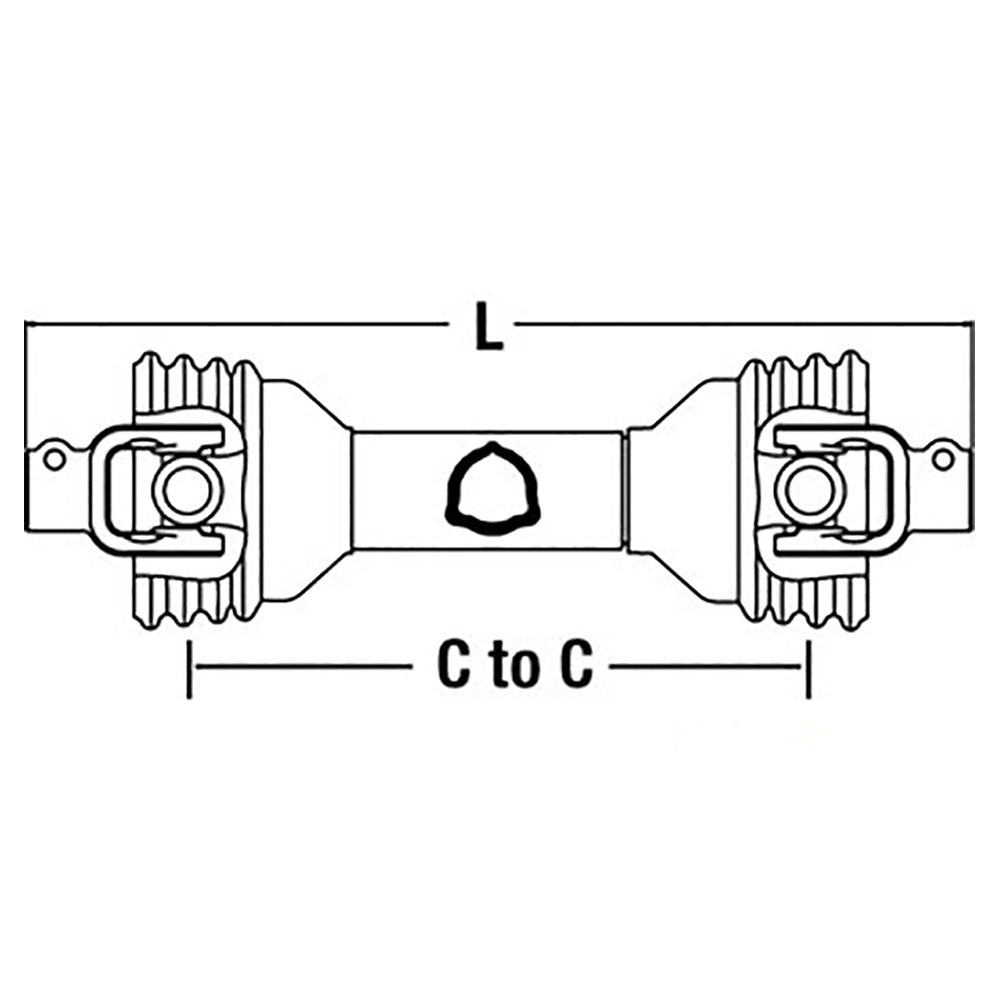

- Center-to-Center (C-to-C) Length: 25 in. (635 mm)
- Maximum C-to-C Length: 35 in. (900 mm)
- Total Collapsed Length: 33 in. (850 mm)
- Tractor End: 1-3/8 in. 6 spline
- Implement End: 1-3/8 in. 6 spline
- Yoke Style: Quick Disconnect (QD)
- No overrunning clutch
Compatible Models
Kuhn Disc Mowers: GMD600, GMD700
Agriquip Disc Mowers: CM245, CM270
Bush Hog Disc Mowers: DM7, DM8, DM9, DM70, DM80, DM90
Claas / Fahr / Fella Disc Mowers: SM2.21, SM2.24, SM240
Fort Disc Mowers: F25 (F25/5, F25/6, F25/7)
JF Disc Mowers: SB2000, SB2400, SB2800
Fits John Deere Flail / Rotary Mowers: 25A, 204, 205, 206, 207, 225, 226, 227, 240D, 280D, 340, 360, 370, 390, 2008, 2009, 2096
Land Pride Disc Mowers: DM3506, DM3507
M & W Disc Mowers: HC5, HC6, HC7
Mortl Disc Mowers: T4, T5, T6
Vicon Disc Mowers: CM167, CM1700, CM216, CM217, CM2200, CM240, CM2400, CM247, AM202, AM203S, AM242, AM243S
Replaces Part Number(s):
4600331 (Kuhn), ECC5251 (Edcor)
Aftermarket Interchange Numbers
CS52511, A-CS52511, A-4600331, DT435921N
New aftermarket replacement part - not remanufactured, not used.
