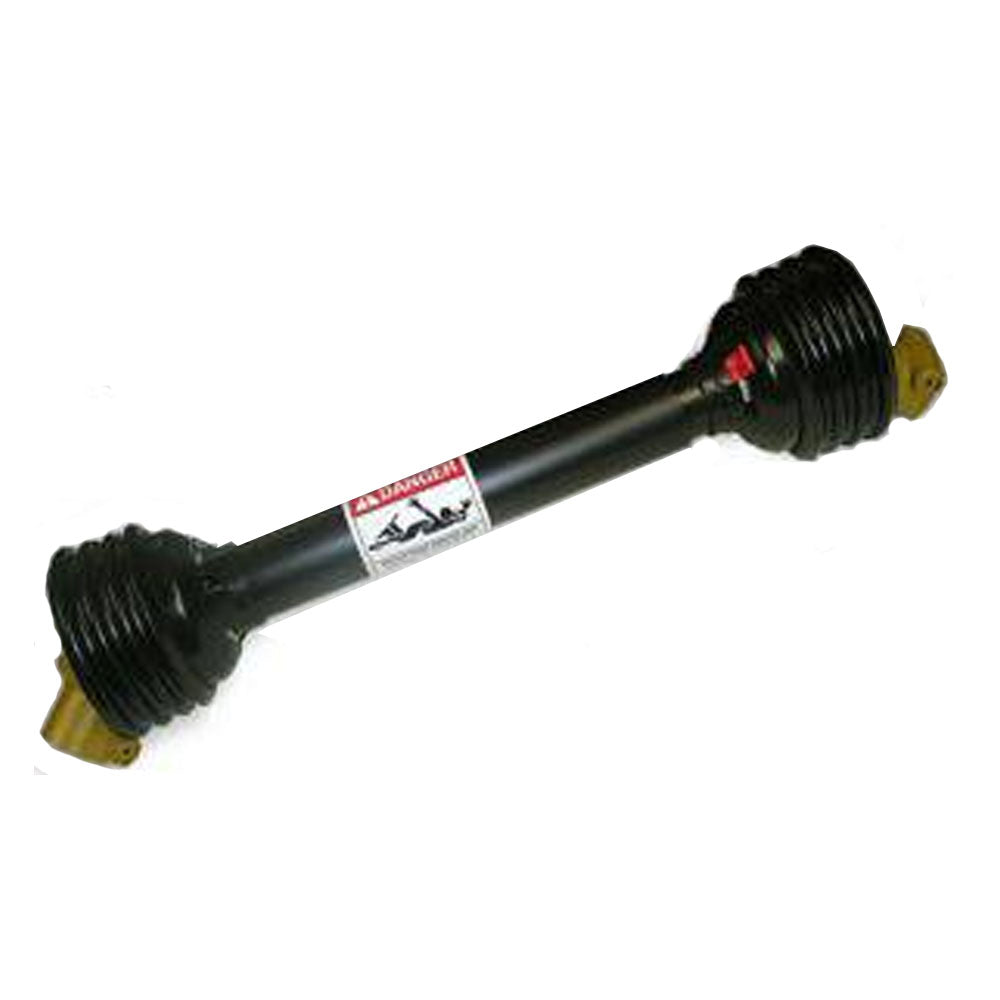

One New Aftermarket Replacement PTO Driveline for Rotary Mowers
This Series 5 PTO driveline is a direct-fit aftermarket replacement for rotary mowers and tractor-mounted implements requiring a 540 RPM, tri-tube telescoping shaft. It connects the tractor PTO to the implement gearbox via a quick-disconnect (QD) splined tractor yoke and a round-bore implement end secured with a shear bolt. Note: 1/2" Grade 2 shear bolt is not included.
Specifications
- Type: PTO Driveline, Series 5 (5S) Tri-Tube
- Speed: 540 RPM
- Collapsed Length (LOA): 42"
- Tractor End: 1-3/8" 6-Spline Quick-Disconnect (QD)
- Implement End: 1-3/8" Round Bore with 1/2" Pin Hole
- U-Joint Cap Size: 30.2 mm / 1-3/16" (1.189")
- Cap to Cap: 79.4 mm / 3-1/8" (3.126")
- Shear bolt (1/2" Grade 2) not included
Compatible Models
Universal Products (Weasler / Bondioli & Pavesi) Rotary Mower Driveline Applications: Series 5 rotary cutter and rotary mower applications requiring 540 RPM, 1-3/8" 6-spline QD tractor connection and 1-3/8" round bore implement end. Verify collapsed length and series compatibility before ordering.
Replaces Part Number(s):
14006542, AB5111WY138R
Aftermarket Interchange Numbers
CS5110SM, PM14006542, CS53414, 3013-6023, 15117542, 266014006542, 97114006542, A-CS53414, PM1400-6542
New aftermarket replacement part - not remanufactured, not used.
