Tandem Axle Suspension Kit Fits 1.75 in Wide 25.25 in Double Eye Springs
Tandem Axle Suspension Kit Fits 1.75 in Wide 25.25 in Double Eye Springs
Regular price
$79.00 CAD
Regular price
Sale price
$79.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tandem Axle Suspension Kit
SPRINGS ARE NOT INCLUDED
This is the mounting hardware only. Leaf springs, U bolts, tie plates and spring seats are separate parts. If you need springs as well, order them alongside this kit.
Trailer Tandem Axle Suspension Spring Hanger Kit

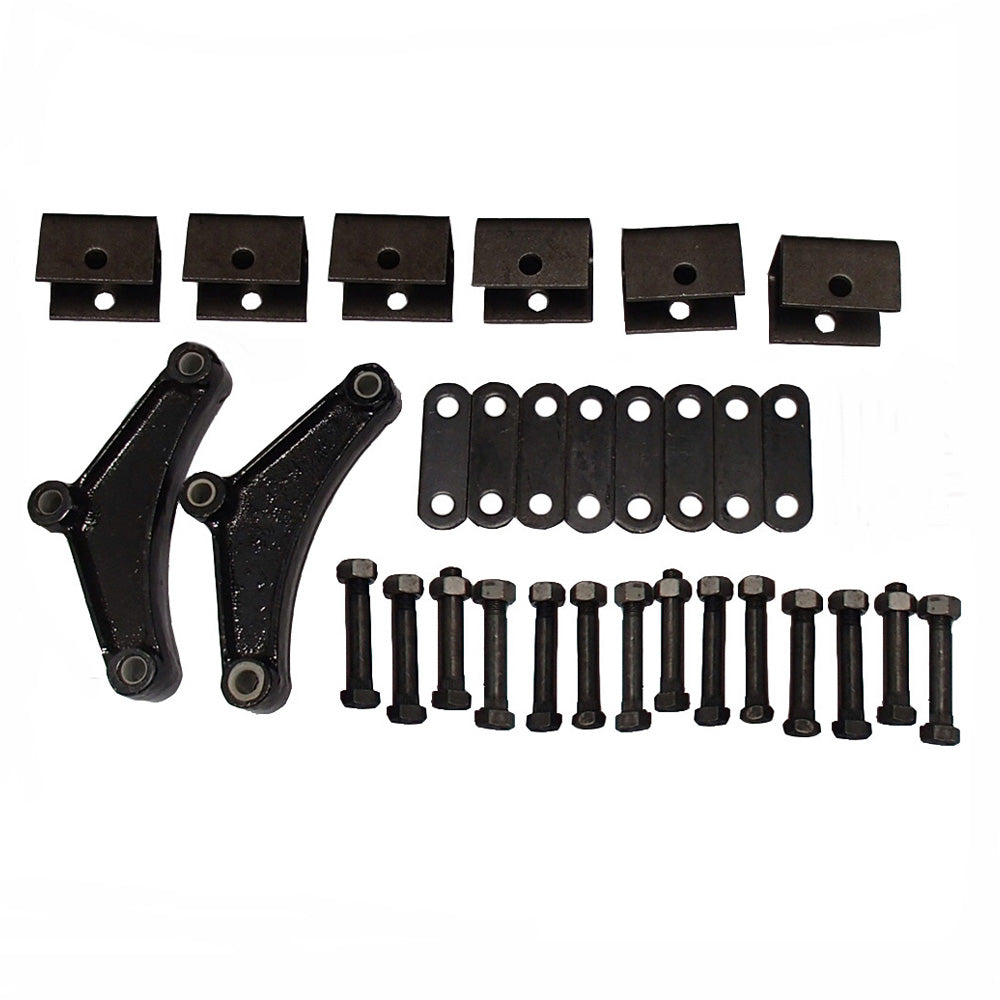

Kit Contains:
(6) Hangers (28-5)
(2) Equalizers (A2252CB, EQE1)
(8) Shackle Straps (115208)
(14) Shackle Bolts (9163B)
(14) Lock Nuts (916DLN)
Hangers: 3-1/4 in tall (weld on)

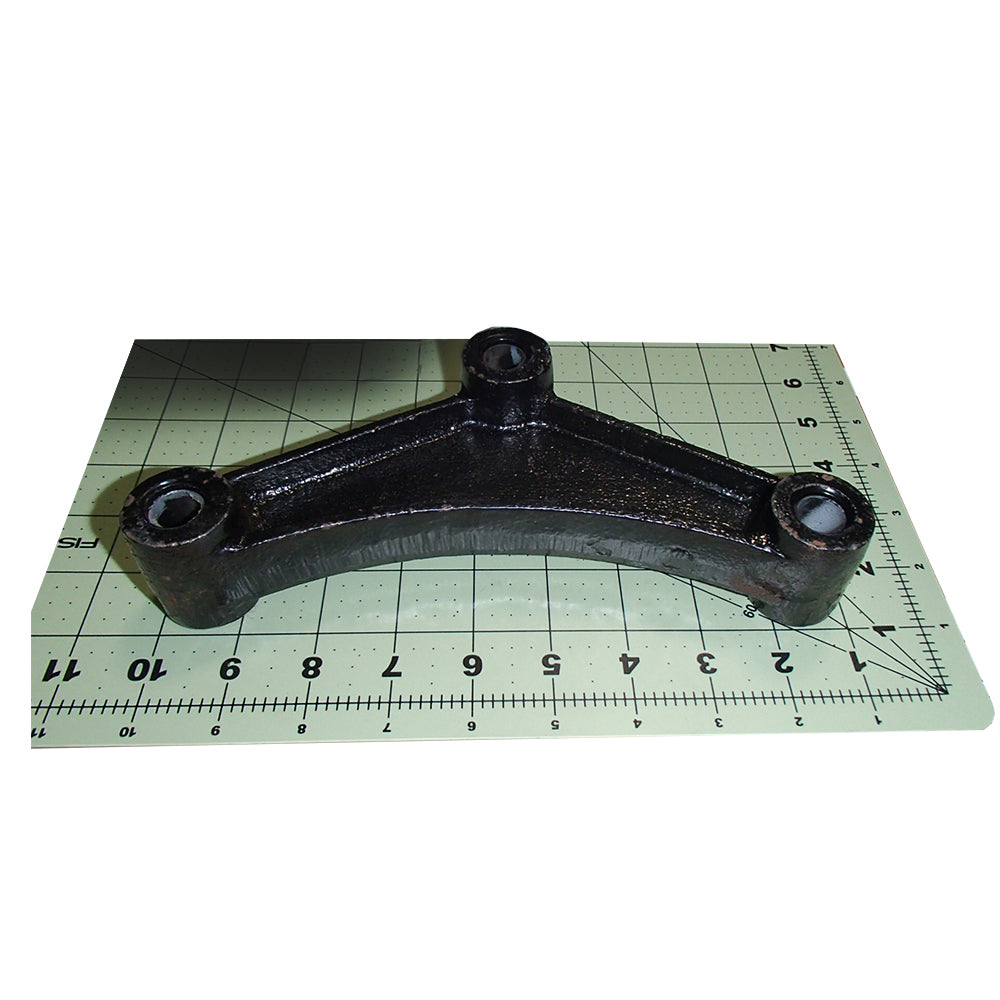

Equalizers: 7-3/4 in long, 9/16 in center hole
Shackle Straps: 3-1/8 in long
Shackle Bolts: 9/16-18 x 3 in long
Lock Nuts: 9/16 in
Geometry: a tandem double eye trailer uses three hangers per side (front, center and rear) plus one equalizer per side, so a complete set is six hangers and two equalizers.
Fits 1.75 in wide by 25.25 in long double eye springs.
For 2,000 to 7,000 lb axles, most commonly 3,500 lb tandem axles.
Does not fit slipper springs, single eye springs or 3 in wide springs. Hangers are weld on, not bolt on.
Aftermarket replacement, not an OEM part. OEM numbers, brand and model names are cross-reference only.
