Deck Rebuild Kit 42" Fits Craftsman LT2000 942-04308 954-04060 918-04822A

Deck Rebuild Kit 42" Fits Craftsman LT2000 942-04308 954-04060 918-04822A

$145.00 CAD
$145.00 CAD
Sale Sold out
Shipping calculated at checkout.
Brand New Aftermarket Replacement Deck Rebuild Kit

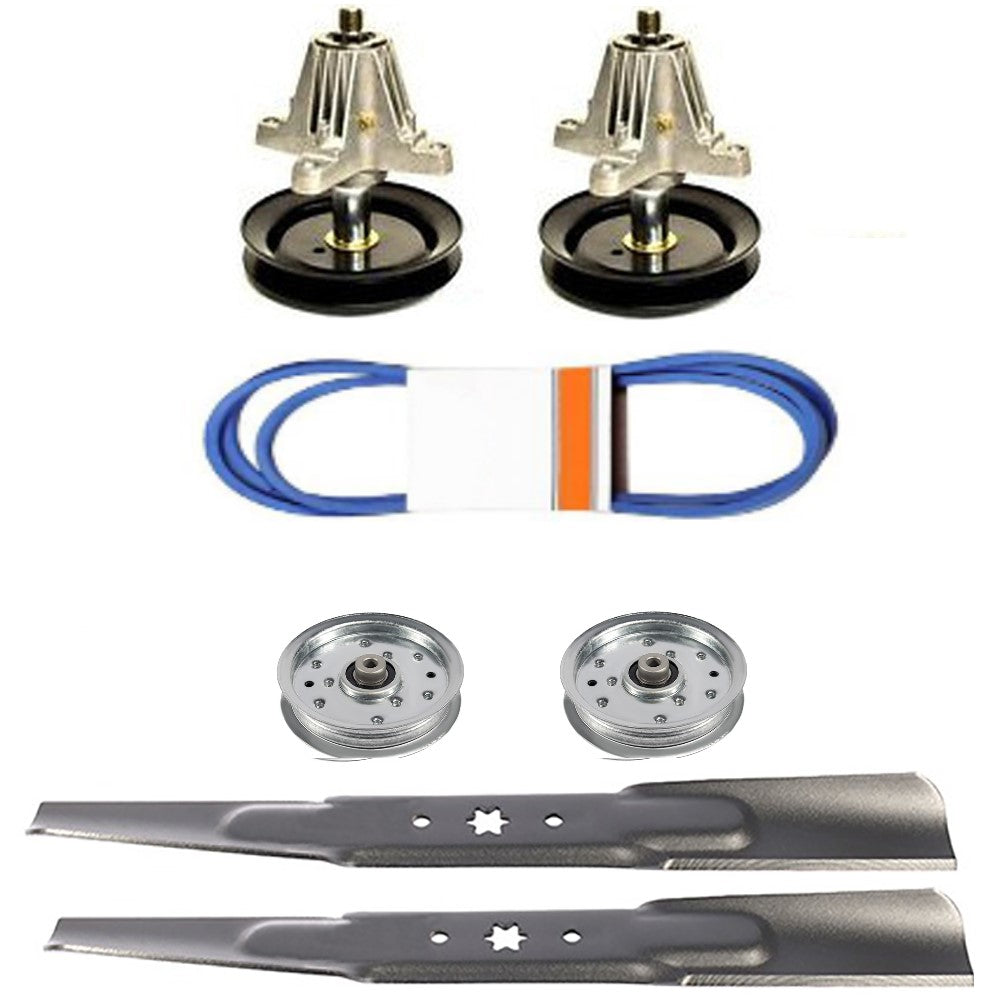

Kit Contains:
(2) Spindle Assemblies
(2) 42" Deck Mower Blades
(2) Flat Idler Pulleys (Zinc)
(1) V-Belt

Spindle Assembly -
OD of Pulley: 6"
Specially designed: to replace 6 pt. star spindle shaft
Pulley included
No threads in housing, use Thread Cutting Bolts
Use with LAE40-0021 Thread Cutting Bolt
Length: 3/4"
Thread: 5/16" -18
Requires 4 Bolts per Spindle

Replaces Part Numbers: 2531-4, 285-868, 618-048, 618-04822, 618-04822A, 618-0488, 618-04889, 618-04889A, 618-0489A, 618-04950, 80-12-062, 82-058, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950, LAS20-0005, LTX1040


42" Deck Mower Blade -
Fits 42" Tractor
Also Fits Toro LX and MTD 2010 Models.
Length: 21-1/4"
Width: 2-1/2"
H-Pattern Center Hole fits 6 Pt Star
Thickness: 0.156"

Replaces Part Numbers: 330-872, 742-04308, 742-0656, 942-04308, 942-04312, 942-0656


V-Belt -
Made With Kevlar Blue V-Belt (1/2" X 96" )
1/2 X 96 A Section
Color Blue
Depth 5/16"
Length 96
Material Made With Kevlar Cord
OC Length 1/2" X 96"
Thickness .315
Top Width 1/2"
Type A Section Made With Kevlar Cord
Width 1/2

Replaces Part Numbers: 4L960K, GX10065, GX10851, M71817


Flat Idler Pulley (Zinc) -
Inside Diameter: 3/8"
Outside Diameter: 4-7/8"
Height: 1"
Material: Metal (Zinc Coated)
Type: Heavy Duty

Replaces Part Numbers: 112-0314, 12675, 753-08171, 756-04129, 756-04129C, 756-04129C 956-04129C, 956-04129, 956-04129C, replaces 756-04129

Models This Part Fits:

LT2000

Additional Information:

For 42" Mower Decks Kit Includes: (2) Spindle Assembly Outer Diameter of Pulley: 6-1/4" Specially Designed to Replace 6 Pt. Star Spindle Shaft Pulley Included No Threads in Housing, Use Thread Cutting Bolts (2) Mower Blade Length: 21-1/4" Width: 2-1/2" H-Pattern Center Hole Fits 6 Pt. Star (2) Flat Idler Pulley (Zinc) Inside Diameter: 3/8" Outside Diameter: 4-7/8" Height: 1" (1) V-Belt Made with Aramid Cord Material Length: 96" Width: 1/2"

Reference Numbers:

CMXGZAM130002, 490-130-C002, 618-04822, 618-04822A, 618-04822B, 618-04889, 618-04889A, 618-04950, 61804822, 61804822A, 61804889, 61804889A, 61804950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A918-04889B, 918-04950, 91804822, 91804822A, 91804822B, 91804889, 91804889A, 91804950, 82-058, 82058, CMXGZAM110108, CMXGZAM110180, 490-110-C108, 742-04308, 742-04308A, 742-04312, 742-0656, 74204308, 74204312, 942-04308, 942-04308A, 942-04312, 942-04312A, 942-0656, 94204312, 490-110-M108, 490-110-Y108, OEM-742-04308, 98-153, 98153, 753-08171, 75308171, 756-04129, 756-04129B, 756-04129C, 75604129B, 75604129C, 956-04129, 1747938, GW-1747938, 754-04060A, 75404060A, 954-04060A, 954-4060B, 95404060A, 9544060B, 37X11, 52842
