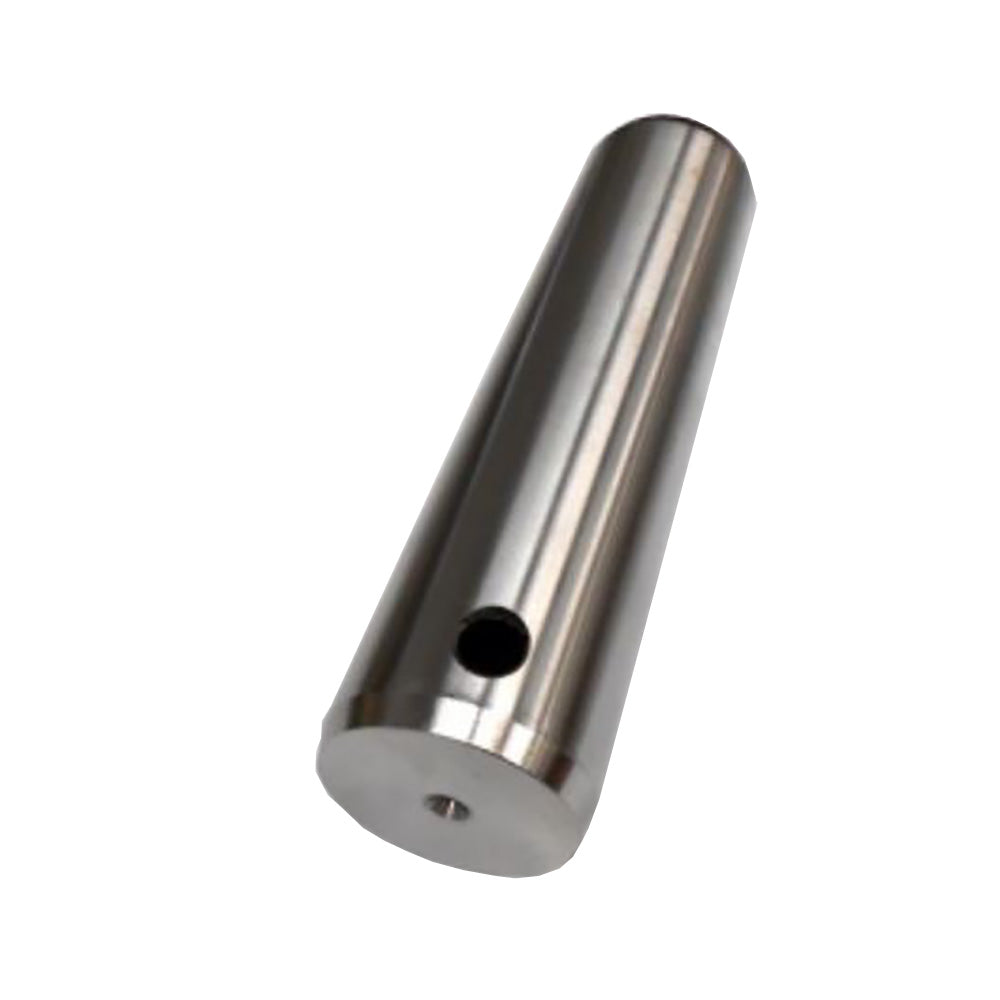

One New Aftermarket Replacement Linkage Pin Fits Caterpillar (Fits CAT) Dozers and Scrapers
This 63.5mm diameter hardened linkage pin is a direct replacement Fits Caterpillar OEM part number 1U0159. It is used as a ripper shank mounting pin and general implement linkage pin on Fits CAT track-type tractors and scrapers, securing ripper assemblies and linkage joints wherever rotation occurs between machine frames and work tools.
Specifications
- Pin Diameter (OD): 63.455 mm (63.5 mm nominal / 2.5 in)
- Overall Length: 243 mm
- Effective Length: 23 mm
- End Type A: Lead Taper
- End Type B: Chamfer
- Transverse Holes: Yes
- Weight: 13.2 lbs (approx. 6 kg)
- Dimensions: 13 x 2.8 x 2.8 in
Compatible Models
Fits Caterpillar Scrapers: 4S, 5, 5P, 5S, 6, 6A, 6S, 6SU, 54H
Fits Caterpillar D4 Series Dozers: D4H, D4H III, D4H XL
Fits Caterpillar D5 Series Dozers: D5H, D5H XL, D5M, D5N, D5R LGP
Fits Caterpillar D6 Series Dozers: D6H, D6H II, D6H XL, D6H XR, D6M, D6N, D6N LGP, D6R, D6R II, D6R III, D6R STD, D6T, D6T LGP, D6T LGPPAT, D6T XL
Replaces Part Number(s):
1U0159, 1U-0159, DBN90-0004
Aftermarket Interchange Numbers
1U0159-A
New aftermarket replacement part - not remanufactured, not used.
